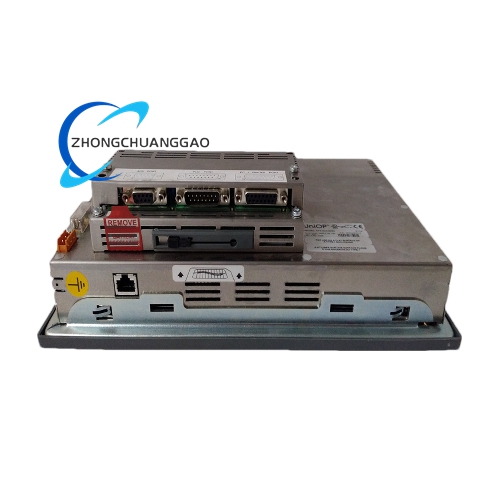

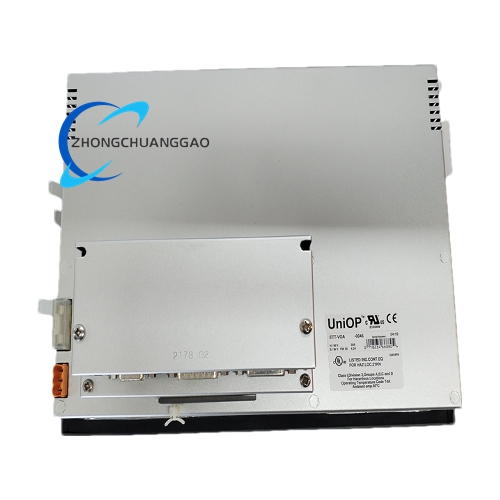

UNIOP ETT-VGA-0045 Industrial HMI Touch Panel
VGA Extension Module
Technical Specifications
- Interface: VGA Input/Output
- Resolution Support: Up to 1920×1080 pixels at 60Hz refresh rate
- Cable Length: Typically supports extension lengths up to 45 meters without signal degradation (assuming it’s named after its maximum length capability)
- Power Supply: Usually powered through the VGA interface; however, some models may require external power
- Operating Temperature: Ranges from 0°C to +50°C
- Storage Temperature: -20°C to +70°C
Detailed content
- Humidity: 10% to 90% relative humidity (non-condensing)
- Connectors: Standard HD15 male to female VGA connectors
- Signal Amplification: Built-in signal booster ensures clear image transmission over longer distances
- Shielding: High-quality shielding to prevent electromagnetic interference (EMI)
Functional Features
- High-Quality Image Transmission: Maintains high-resolution video quality over extended distances
- Plug-and-Play: Simple installation without the need for additional software or drivers
- Durability: Designed for reliability in industrial environments
- Compact Design: Space-saving form factor suitable for tight installation spaces
- Compatibility: Compatible with a wide range of VGA-enabled devices including monitors, projectors, and control panels
Application Scenarios
- Industrial Automation: Facilitates the connection of HMIs or other display devices to controllers in factory automation setups
- Security Systems: Enables the extension of video feeds from surveillance cameras to monitoring stations
- Conference Rooms: Allows for the convenient placement of projectors or displays away from source devices
- Digital Signage: Extends video signals to digital signage displays located far from media players
- Educational Institutions: Used in classrooms and lecture halls to connect computers to projectors or large displays
