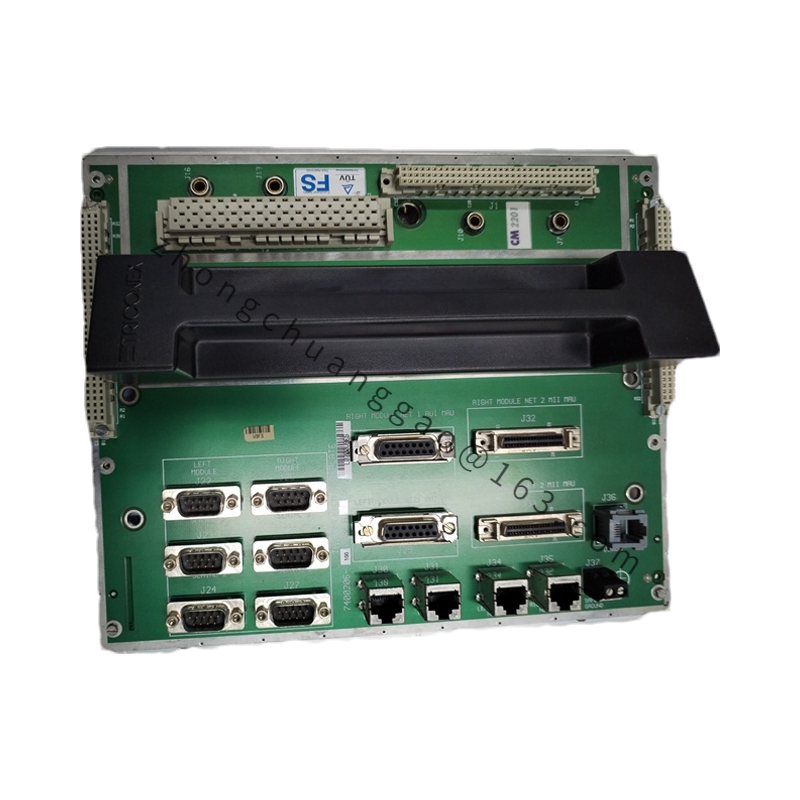

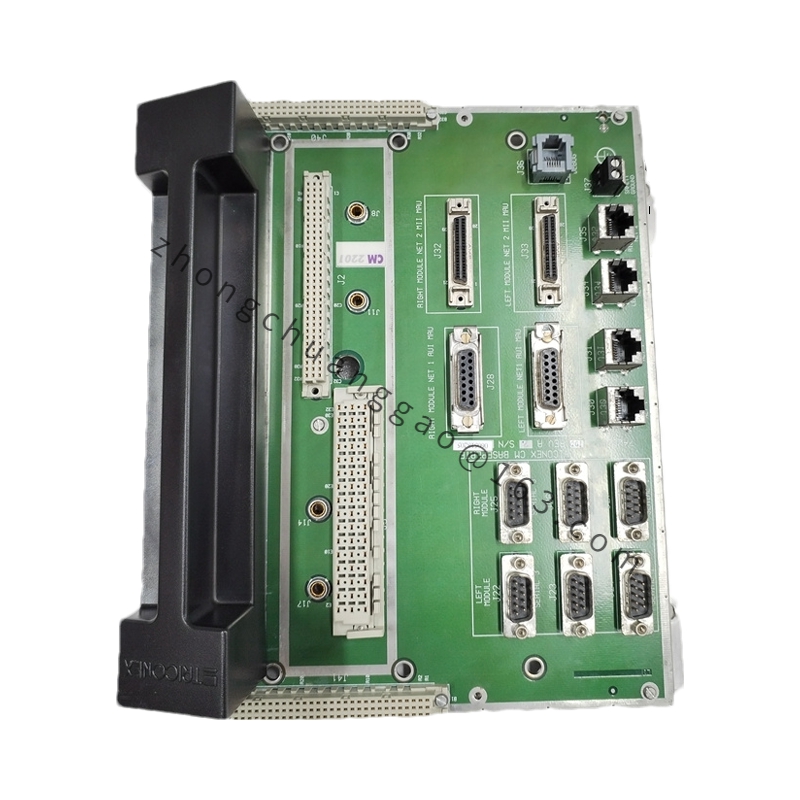

Triconex 2201
Triconex, a brand under Invensys Operations Management, is a leading provider of safety systems and solutions for critical industrial applications. The company’s products, including safety controllers and modules, are renowned for their high reliability, safety, and performance. Below is a comprehensive overview of Triconex, including its technical specifications, functional characteristics, and application scenarios.
Detailed content
Technical Specifications
Triconex 4352B Industrial Safety Controller
| Specification | Details |
|---|---|
| Input Voltage Range | AC 85-265V, 47-63Hz; DC 24V |
| Maximum Output Current | 2 Amperes |
| Maximum Power | 48 Watts |
| Operating Temperature | 0-60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | 152.4 mm x 152.4 mm x 101.6 mm |
Functional Characteristics
- High Compatibility and Versatility:
- Supports a wide range of input types, including digital signals, analog signals, and temperature sensors.
- Accepts various control signals from motors, pneumatics, and hydraulics.
- Reliability and Safety:
- Ensures the safety of personnel, equipment, and the environment in industrial operations.
- Incorporates self-diagnostic and self-calibration mechanisms for prompt fault detection and resolution.
- Remote Monitoring and Control:
- Enables remote management and control for enhanced operational efficiency.
- Compact Design:
- Facilitates easy installation and maintenance.
- Triple Modular Redundancy (TMR) Technology:
- Triconex systems often employ TMR technology, where three isolated and parallel control systems (each known as a sub-circuit) work together, providing a highly reliable and fault-tolerant system. This ensures uninterrupted process operation even in the face of single-point failures.
Application Scenarios
Triconex products are widely used in various industries that require high levels of safety and reliability, including:
- Petrochemical and Refining: For safety instrumented systems (SIS), steam turbine control, and compressor anti-surge control.
- Oil and Gas: Used in offshore platforms, gas processing plants, and pipeline monitoring.
- Chemicals: For critical process control and safety shutdown systems.
- Power Generation: In power plants for turbine control and safety systems.
- Rail Transportation: For signaling and safety systems.
- Nuclear Industry: In safety-critical applications requiring the highest levels of reliability and redundancy.
