Technical Specifications​

24 V DC logic supply, differential encoder feedback interface, analog command output, galvanic isolation between control side and drive side, operating temperature 0 to 55°C, screw-terminal and backplane wiring, compatible rack-mount installation with CLC-D02.

Functional Features​

Command transmission to servo amplifiers, encoder position feedback reception, signal isolation, axis status monitoring, fault reporting, noise-resistant differential signaling.

Application Scenarios​

Machine tool servo axes, automation equipment, retrofitted Indramat drive systems and multi-axis motion platforms where CLC-D02 performs trajectory calculation and CLC-V02 handles drive-level signal conversion.

Performance Parameters​

High-speed differential command transmission, stable encoder feedback handling, low-latency analog setpoint output, repeated accuracy suitable for CNC and precision automation loops.

Material Composition​

FR4 control PCB, signal conditioning components, isolated driver circuitry, metal shielding where required, screw terminals with copper alloy contacts.

Structural Features​

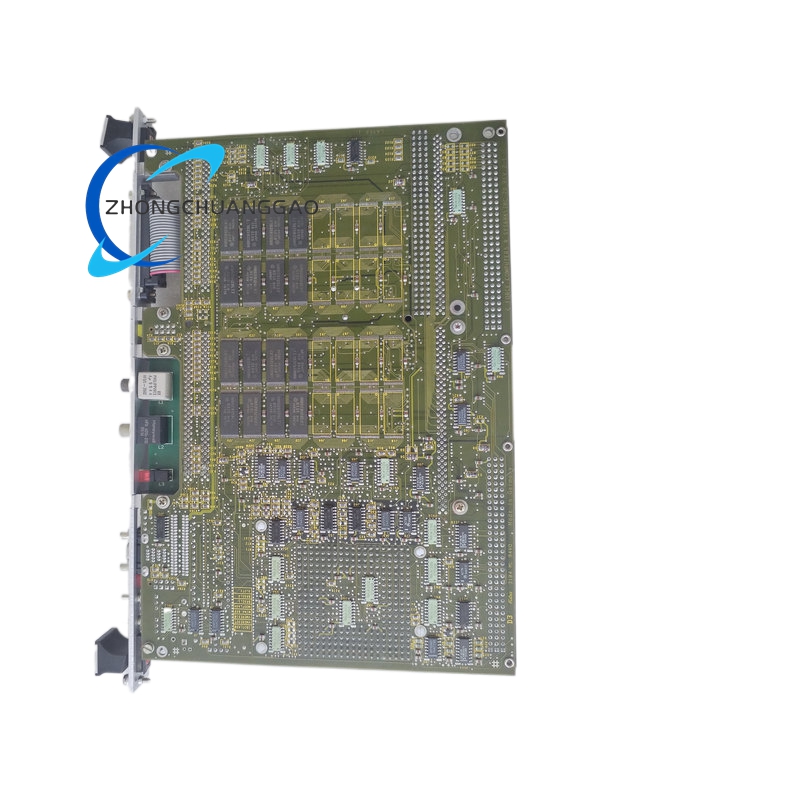

Rack interface board format, backplane connector to CLC controller, separate servo command and encoder terminals, status indicators, conditioned analog output stage.

Working Principle​

The module receives digital motion data from the CLC controller, converts it into an analog servo command voltage, sends the command to the servo amplifier, receives differential encoder signals from the motor, isolates and conditions the feedback, then returns position data to the controller.

Installation Requirements​

Mount in the same servo rack as the CLC-D02 controller, connect the backplane securely, use shielded encoder cables, separate signal wiring from high-power motor cables, verify 24 V DC logic power before operation.
