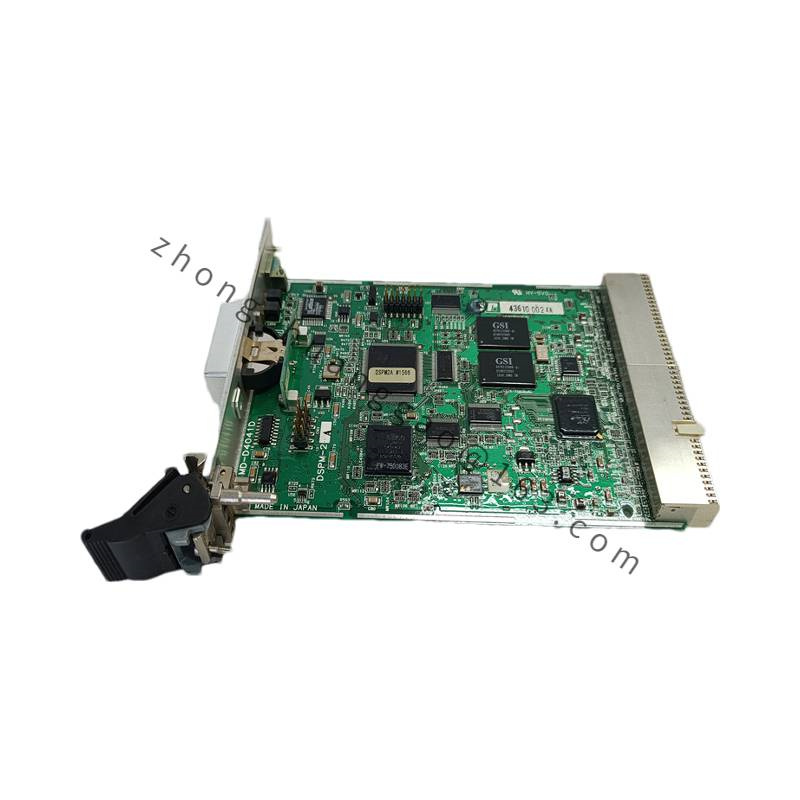

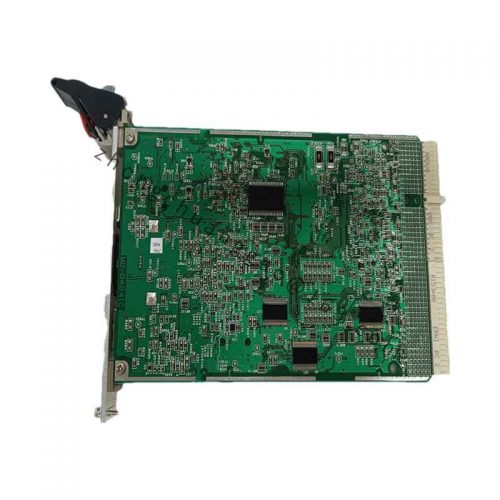

Reliance ELECTRIC S-D404
S-D4041 Regulator Module
Technical Specifications & Functional Characteristics:
- Process Parameter Adjustment: Adjusts parameters such as temperature, pressure, flow rate, and liquid level to meet process requirements.
- Feedback Control: Supports feedback control utilizing real-time data to maintain desired parameter values.
- PID Control: Equipped with PID (Proportional-Integral-Derivative) control algorithm for precise adjustment.
- Analog Input/Output: Provides analog signal input and output channels for seamless integration with sensors and actuators.
- Communication Interfaces: Features communication interfaces like Ethernet, Modbus, and Profibus for system integration.
- Programmability: Allows for programmable control logic to meet specific application needs.
- Multi-Channel Support: Offers multiple input and output channels for complex control tasks.
- Data Processing & Diagnostics: Possesses data processing capabilities and status monitoring functions for troubleshooting.
Detailed content
Application Scenarios:
- Widely used in industrial automation for process control systems in industries such as chemicals, oil & gas, pharmaceuticals, and food processing.
S-D4043 Thyristor Module
Technical Specifications & Functional Characteristics:
- Silicon Controlled Rectifier (SCR) Control: Enables precise control of current and voltage.
- High-Power Control: Suitable for high-current and high-voltage applications like motors and generators.
- Pulse Width Modulation (PWM): Supports PWM control for adjusting output voltage and current through pulse width modulation.
- Multi-Channel Support: Includes multiple thyristor channels for controlling multiple electrical devices or circuits.
- Temperature Monitoring & Protection: Monitors thyristor temperature in real-time and features overcurrent protection.
- Communication Interfaces: Provides communication interfaces like Ethernet, Modbus, and Profibus.
- Programmability: Supports programmable control logic for customized control strategies.
- Fault Detection & Alarm: Includes fault detection capability with alarm generation.
Application Scenarios:
- Ideal for applications requiring precise power control and regulation, such as power transmission, motor control, and industrial heating.
S-D4043 Matrix Switch Module
Technical Specifications & Functional Characteristics:
- Multi-Channel Support: Offers multiple input and output channels supporting various signal types (digital, analog, PWM).
- Flexible Configuration: Allows for customized configuration through programming or configuration software.
- High Reliability: Designed and manufactured with high-quality materials and processes for stable operation in harsh environments.
- Ease of Use & Maintenance: Features a user-friendly operation interface and intuitive maintenance functions.
