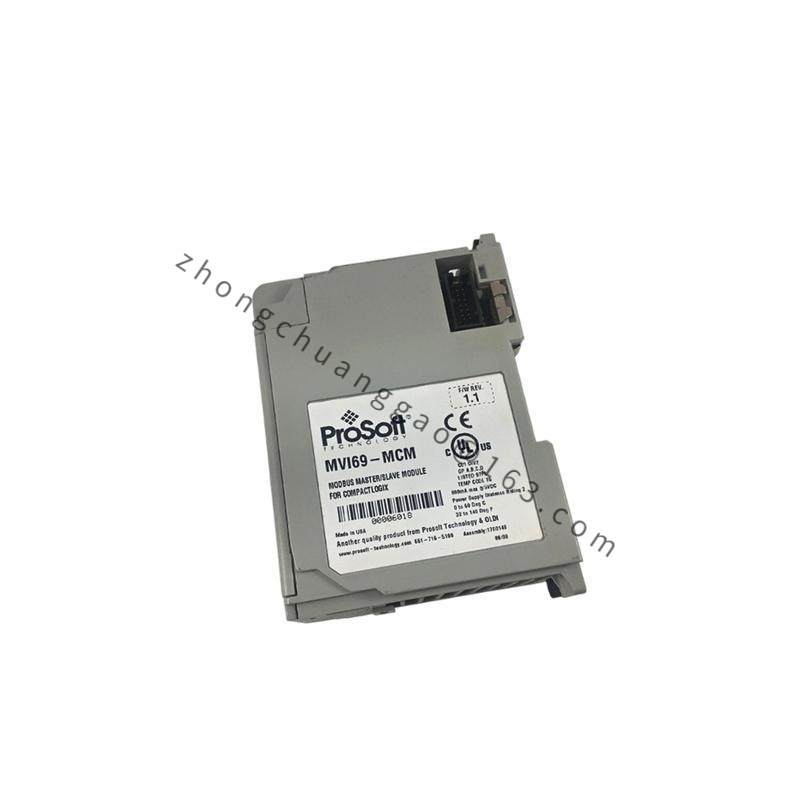

Prosoft MVI69-MCM ASCII Communication Module, for Industrial Control Applications
The Prosoft MVI69-MCM Communication Module is a high-performance industrial communication device designed for seamless integration into complex control systems. It facilitates efficient data transfer between various components, enhancing system reliability and operational efficiency.
Detailed content
I/O Size:0/120/240 – 16 bit integers
Communication Parameters:Baud Rate: 110 to 115K baud, Stop Bits: 1 or 2, Data Size: 7 or 8 Bits, Parity: None, Even, Odd, RTS Timing Delays: 0 to 65535 milliseconds
Floating Point Data Support:Supported, including configurable support for Enron, Daniel®, and other implementations
Protocol Interface:Modbus Master/Slave protocol interface
Engineered for seamless integration with Prosoft PLC systems, the MVI69-MCM module facilitates efficient communication between CompactLogix and MicroLogix processors, ensuring rapid and reliable data exchange.
Designed with an advanced licensed backplane technology, this module is manufactured under exclusive Rockwell Automation licensing, guaranteeing compatibility and reliability in demanding industrial environments.
Supports high-speed data transfer at baud rates ranging from 110 to 115K, making it ideal for applications requiring fast communication speeds without compromising data integrity.
The MVI69-MCM module installs as a generic 1769 module, simplifying integration with existing PLC systems and reducing setup time. Sample ladder logic included for easy configuration.
Enhanced diagnostic capabilities allow for real-time monitoring of node health within the RSLogix 5000 controller, enabling proactive maintenance and operational optimization.
