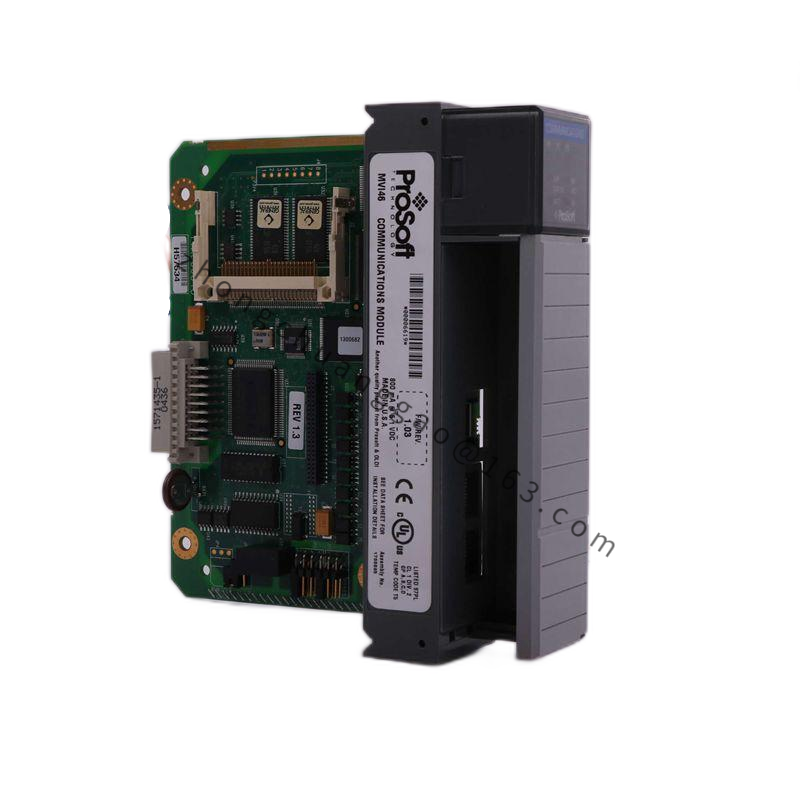

Product Model:MVI56-MNETR

Brand:Prosoft

Communication Protocol:Ethernet/IP

Backward Compatibility:Compatible with previous MVI56-MNETR versions

ControlLogix Compatibility:Single-Slot ControlLogix backplane compatible

Data Transfer Rate:10/100 Mbps auto-crossover detection

Configuration Port:User definable module data memory mapping of up to 5000, 16-bit registers

CIPconnect-enabled:Network configuration and diagnostics monitoring using ControlLogix 1756-ENxT and 1756-CNB modules

Pass-through Communication:EtherNet/IP pass-through communication

I/O Image Size:Reduced I/O image size designed specifically to optimize remote rack implementations

Software:ProSoft Configuration Builder (PCB) software

    The PROSOFT MVI56-MNETR is a cutting-edge industrial Ethernet communication module designed to seamlessly integrate with ControlLogix systems. With its backward compatibility, this module ensures smooth integration with existing systems. Featuring a 10/100 Mbps auto crossover detection Ethernet configuration and application port, it supports fast data transfer rates, making it ideal for high-performance industrial environments. The module allows user-defined module data memory mapping of up to 5000, 16-bit registers, providing flexibility and scalability for various applications. Furthermore, the CIPconnect-enabled network configuration and diagnostics monitoring capabilities enhance system reliability and efficiency. With reduced I/O image size, the module optimizes remote rack implementations, ensuring minimal latency and maximum performance. The ProSoft Configuration Builder (PCB) software simplifies setup and management, allowing users to easily configure and monitor the module. Whether you’re implementing new systems or upgrading existing ones, the PROSOFT MVI56-MNETR offers robust, reliable, and efficient communication solutions for your industrial automation needs.
