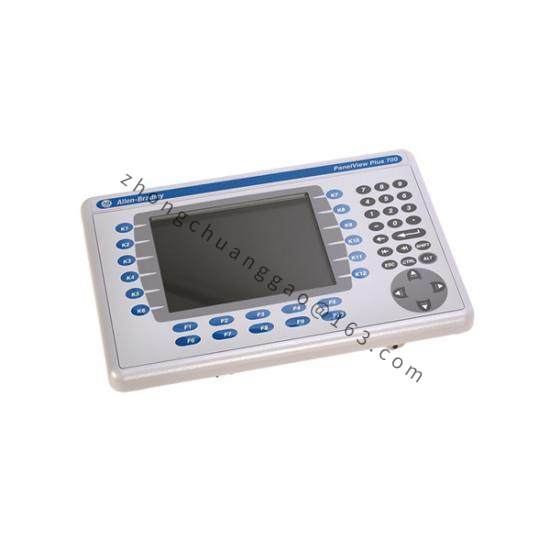

PanelView Plus Terminal 2711P-K7C4D1 – Allen-Bradley Operator Interface
The Allen-Bradley PanelView Plus Terminal 2711P-K7C4D1 is an advanced industrial monitoring solution designed for real-time data acquisition and display. It enables operators to visualize process data, monitor equipment performance, and make informed decisions in manufacturing environments.
Detailed content
Brand:Allen-Bradley
Model:PanelView Plus 2711P-K7C4D1
Type:Terminal Module
Dimensions:W: 168 mm, H: 164 mm, D: 52 mm
Weight:0.5 kg
Operating Temperature Range:-20°C to +60°C
Display Size:5 inches
Touchscreen:Color touchscreen with resistive overlay
Processing Power:Up to 100 MIPS
RAM:32 MB
Flash Memory:16 MB
Communications Interface:RS-232, RS-485, Ethernet
Power Supply:DC 12 V to 24 V
Input Output Capacity:20 digital inputs, 10 digital outputs, 4 analog inputs
The Allen-Bradley PanelView Plus Terminal 2711P-K7C4D1 is a compact yet powerful human-machine interface (HMI) designed for seamless integration into modern industrial automation environments. Its large, high-resolution color touchscreen ensures clear visibility under various lighting conditions, making it ideal for operators in manufacturing, process control, and other demanding applications.
Featuring an advanced operating system compatible with the Allen-Bradley Micro800 series controller, this terminal supports a wide range of applications without requiring extensive programming knowledge. The intuitive user interface allows for quick setup and customization, enabling users to focus on their core tasks rather than navigating complex software.
With built-in Ethernet, USB, and RS-232 ports, the 2711P-K7C4D1 offers flexible connectivity options, facilitating easy data exchange with other industrial devices and control systems. This feature-rich terminal is equipped to handle diverse communication needs, enhancing operational efficiency and data integrity.
Engineered for reliability in challenging industrial environments, the terminal operates within a temperature range of -10°C to 50°C and maintains optimal performance under varying humidity levels (5% to 95% non-condensing). Its compact size and lightweight design make it suitable for installation in space-constrained areas without compromising on functionality.
Designed with ease of use in mind, the Allen-Bradley PanelView Plus Terminal 2711P-K7C4D1 simplifies the connection between operators and automated processes. Its robust construction and comprehensive feature set make it a trusted choice for enhancing operator productivity and system oversight in industrial settings.
