NOUENVOG AAP3798102-00131
Application Scenarios
- Compressor Control Systems
- Cameron TA-Series: Manages inlet valve positioning, oil pressure, and vibration monitoring in TA2000/TA3000 compressors .
- Energy Infrastructure
- Pump Stations: Regulates flow/pressure in pipeline transport .
- Gas Turbine Backup: Synchronizes auxiliary systems during grid failures .
- Industrial Automation
- Production Lines: Interfaces with Schneider/Bently Nevada PLCs for safety interlocks .
- Remote Monitoring: Transmits operational data to SCADA via Modbus .
Detailed content
Technical Specifications
| Category | Details |
|---|---|
| Electrical | – Input Voltage: 24V DC (±10%) – Power Consumption: <5W<br>- Analog Inputs: 8 channels – Digital Inputs: 8 channels – Analog Outputs: 4 channels – Digital Outputs: 4 channels |
| Communication | – Protocols: RS-485 (Modbus RTU) – Data Rate: 9.6–19.2 kbps – Multi-Drop Support: Up to 32 nodes |
| Environmental | – Operating Temp: -20°C to +70°C – Storage Temp: -40°C to +85°C – Humidity: 10–90% non-condensing – Protection: IP65 (dust/water resistant) |
| Physical | – Dimensions: 230 mm × 160 mm × 64 mm – Weight: 1.5 kg – Enclosure: Aluminum alloy |
Functional Features
- Real-Time Signal Processing
- High-Speed Sampling: 16-bit resolution for analog inputs (0–10V/4–20mA) .
- Diagnostic Alarms: Auto-triggered alerts for overvoltage, short-circuit, and signal loss .
- Modular Integration

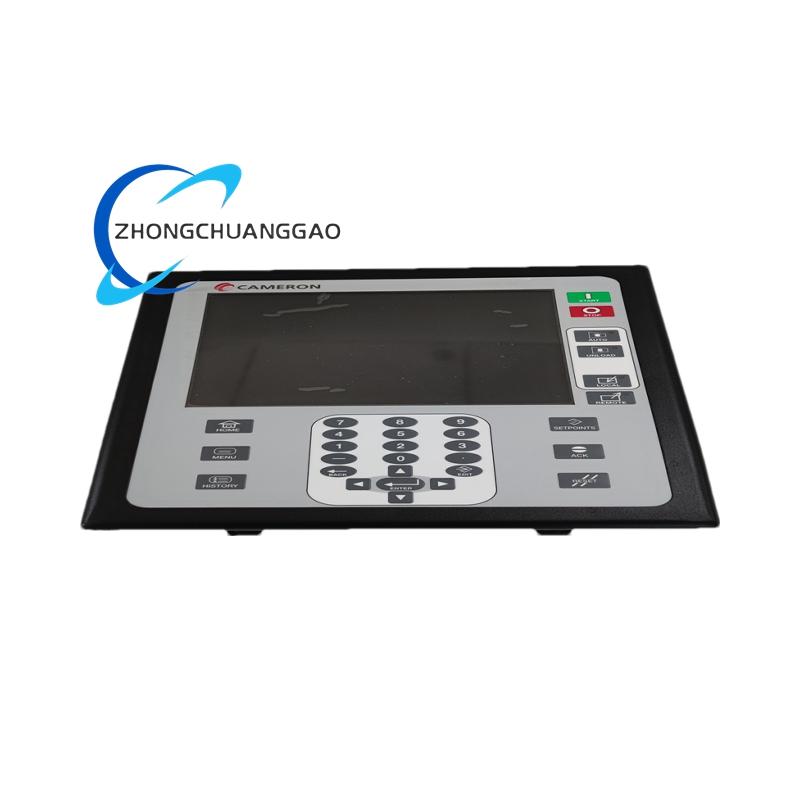

- Plug-and-Play Expansion: Compatible with Cameron MU Controller (AAP3798102-00130) for system scaling .
- Field-Configurable I/O: Channels reprogrammable via software for sensor/actuator flexibility .
- Industrial Resilience
- Vibration Tolerance: 5g RMS (10–500 Hz) for heavy machinery environments .
- EMI Shielding: Certified for operation near high-frequency drives and motors .
- Firmware & Compliance
- Field-Upgradable: Flash memory for firmware updates .
- Certifications: CE, RoHS, IEC 61131-2 .
Compatibility & Integration
| System Type | Compatible Devices |
|---|---|
| Controllers | Cameron MU Controller (AAP3798102-00130), Siemens S7-300, Schneider Modicon |
| Sensors/Actuators | Bently Nevada 3500 series vibration probes, Emerson VE4012S2B1 valves |
| Software | Cameron UIM interface, ICS Triplex configuration tools |
