Technical Specifications:

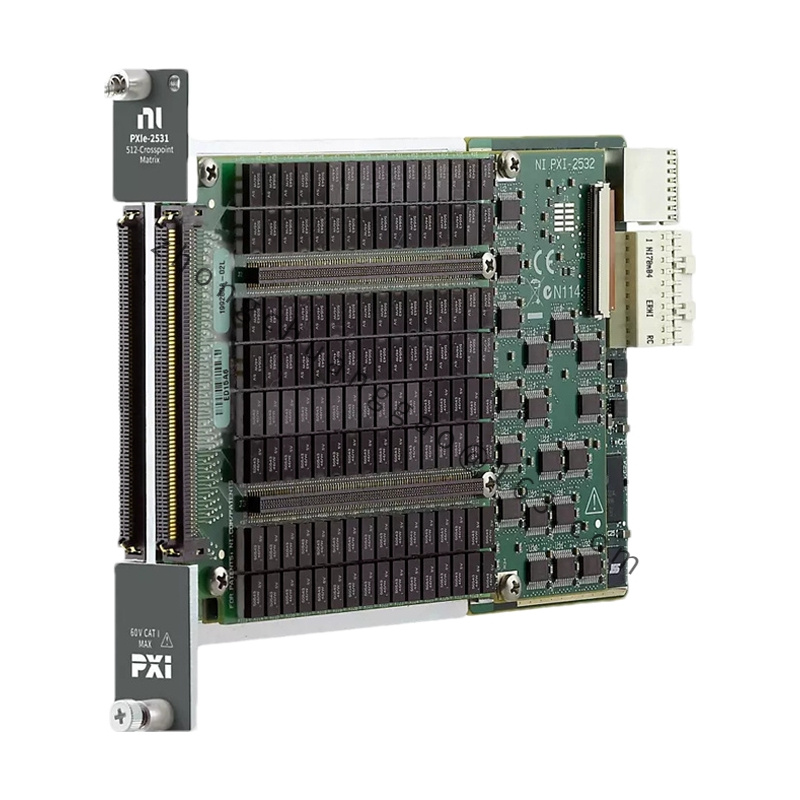

• Module Type: PXIe Relay Module
• Number of Channels:
  • Channels: 64 (8 x 8 matrix)
• Relay Types:
  • Relay Type: Electromechanical relays
  • Configuration: Matrix relay switch with 8 rows and 8 columns
• Switching Characteristics:
  • Switching Configuration: Crosspoint matrix
  • Switching Speed: Typically < 1 ms
  • Insulation Resistance: >10^9 ohms at 500 VDC
  • Maximum Switching Voltage: 30 VDC
  • Maximum Switching Current: 1 A
• Signal Characteristics:
  • Bandwidth: DC to 500 MHz
  • Insertion Loss: Typically < 0.5 dB at 500 MHz
  • Return Loss: Typically > 20 dB at 500 MHz
• Power Requirements:
  • Voltage: +3.3 V and +12 V from PXIe backplane
• Physical Dimensions:
  • Size: Standard 3U PXIe form factor
• Operating Temperature:
  • Temperature Range: 0°C to 55°C (32°F to 131°F)
• Storage Temperature:
  • Storage Range: -40°C to 70°C (-40°F to 158°F)
• Relative Humidity:
  • Humidity Range: 10% to 90% non-condensing

Functional Features:

• High-Density Switching: Provides 64 channels in a compact 3U PXIe form factor, enabling high-density and efficient signal switching for various applications.
• High-Frequency Performance: Capable of handling signals up to 500 MHz with low insertion loss and high return loss, suitable for RF and high-speed signal routing.
• Matrix Switching: Features an 8 x 8 matrix configuration, allowing flexible and efficient switching of multiple signal paths.
• Precision Switching: Delivers precise and reliable switching with high insulation resistance to minimize signal degradation and crosstalk.
• Versatile Applications: Designed to handle a range of signal types and frequencies, providing flexibility for diverse test and measurement needs.

Application Scenarios:

• Automated Test Systems: Ideal for high-performance automated test systems where efficient and reliable signal routing is required.
• RF and Microwave Testing: Suitable for RF and microwave applications where high-frequency signal switching is necessary.
• Communication Systems: Useful in communication systems for managing and routing connections between various components.
• Signal Routing: Effective for complex signal routing tasks in research, development, and production environments.

Additional Considerations:

• Driver and Software Support: Fully compatible with National Instruments’ software and drivers, including NI LabVIEW and NI MAX, for seamless integration and control.
• Configuration and Control: Provides software tools for configuring and controlling relay switching, facilitating automated test sequences and precise signal path management.
