1. Technical Specifications

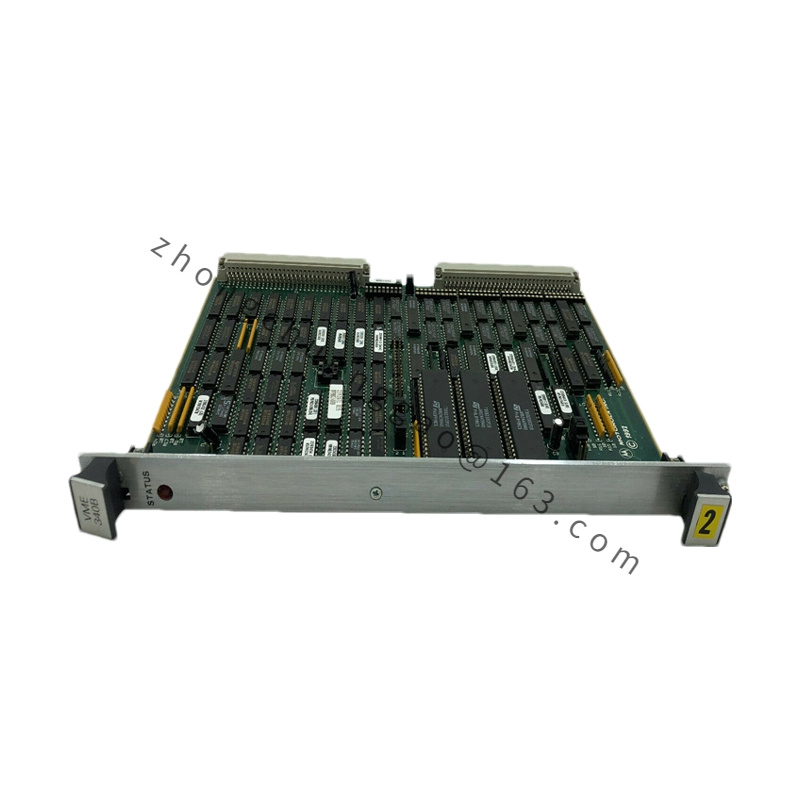

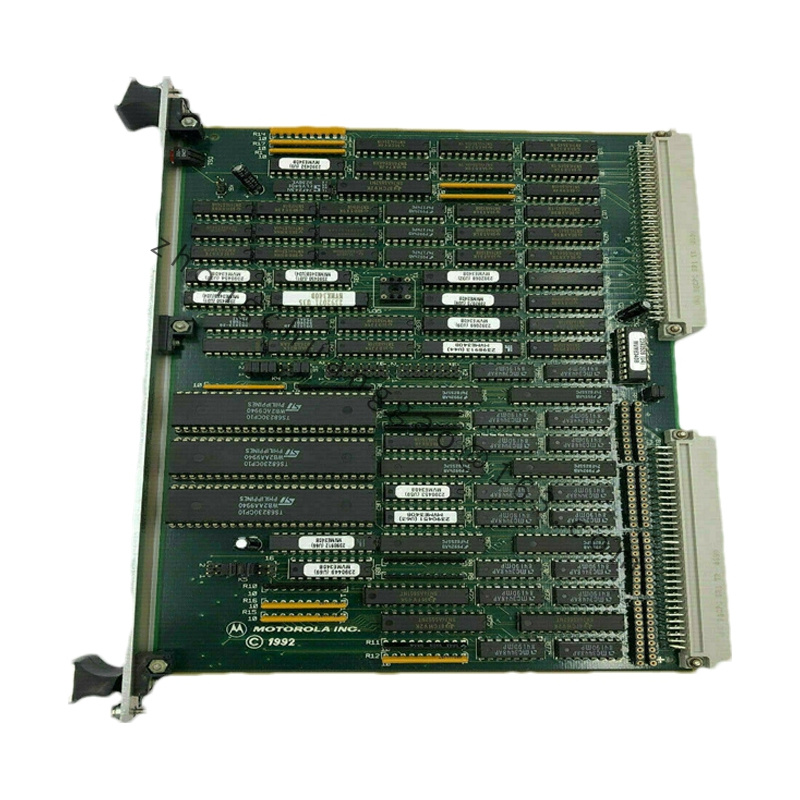

• Model: Motorola V-816276
• Type: VMEbus Single-Board Computer Module
• Processor:
  • Type: Typically features a Motorola 680×0 series or a PowerPC processor, depending on the specific variant.
  • Clock Speed: Common speeds range from 25 MHz to 400 MHz, depending on the processor model used.
• Memory:
  • RAM: Typically includes onboard memory ranging from 4 MB to 64 MB, depending on configuration.
  • Flash Memory: Flash memory usually ranges from 2 MB to 16 MB.
• I/O Interfaces:
  • Serial Ports: Multiple serial communication ports (RS-232 or RS-422) for interfacing with external devices.
  • Parallel I/O: General-purpose parallel I/O ports for additional connections.
  • Ethernet: Likely includes one or more Ethernet interfaces (10/100Base-T) for network connectivity.
  • SCSI: May feature SCSI interfaces for high-speed peripheral connections.
  • PCI: Some configurations may include PCI expansion slots for additional hardware.
• Bus Interface:
  • VMEbus: Compliant with VMEbus standards, ensuring compatibility with other VMEbus modules and systems.
• Power Requirements:
  • Power Consumption: Adheres to VMEbus power specifications. Specific power consumption details should be verified from the datasheet.

2. Key Features

• Processor Options: Offers flexibility with different processor choices, including 680×0 series or PowerPC processors, allowing for varied performance levels.
• Expandable Memory: Provides configurable onboard RAM and flash memory to meet diverse application needs.
• Diverse I/O Capabilities: Features serial ports, parallel I/O, Ethernet, and SCSI interfaces, accommodating various connectivity requirements.
• VMEbus Compliance: Designed to integrate seamlessly with other VMEbus-based systems, making it suitable for various industrial and embedded applications.

3. Application Scenarios

• Industrial Control: Ideal for applications in industrial automation systems where reliable performance and extensive I/O capabilities are required.
• Embedded Systems: Suitable for embedded systems requiring a robust VMEbus interface and flexible processing options.
• Defense and Aerospace: Used in rugged environments such as defense and aerospace applications where VMEbus compatibility and durability are essential.
• Telecommunications: Applicable in telecom systems that need reliable network connectivity and high-speed data processing.

4. Additional Information

• Installation and Maintenance: Intended for integration into a VMEbus chassis. Proper installation, configuration, and ongoing maintenance are critical to ensure optimal performance and longevity.
• Technical Support: For comprehensive technical specifications, installation guidelines, and support, consult the official product datasheet or reach out to Motorola (now part of Analog Devices) or their authorized distributors.
