1. Technical Specifications

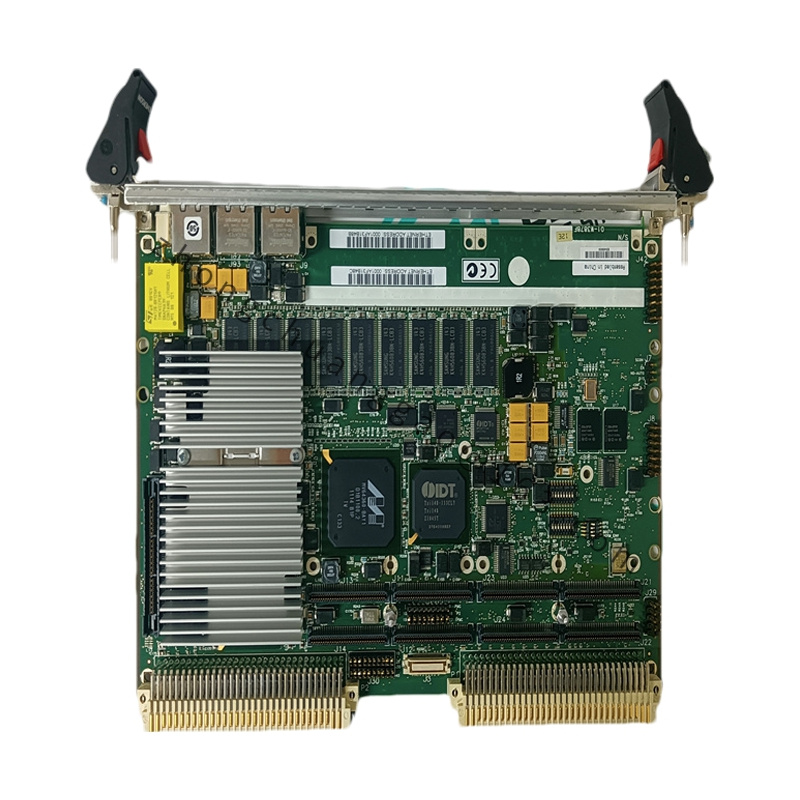

• Model: Motorola MVME61006E-0163
• Type: VMEbus Single-Board Computer
• Processor:
  • Type: PowerPC 750FX
  • Clock Speed: 800 MHz
• Memory:
  • RAM: 512 MB of DDR SDRAM
  • Flash Memory: 64 MB of flash memory
• I/O Interfaces:
  • Serial Ports: Four serial ports (RS-232/RS-422) for serial communication.
  • Parallel I/O: General-purpose parallel I/O interfaces for connecting external devices.
  • Ethernet: Dual Gigabit Ethernet interfaces (10/100/1000Base-T) for network connectivity.
  • SCSI: One Ultra160 SCSI interface for high-speed peripheral connections.
  • USB: Two USB 2.0 ports for additional peripheral connectivity.
  • PCI: Expansion slots for PCI cards.
• Bus Interface:
  • VMEbus: Compliant with VMEbus standards for integration with other VMEbus modules and systems.
• Power Requirements:
  • Power Consumption: Adheres to VMEbus power specifications. Specific power consumption details should be referenced in the datasheet.

2. Key Features

• High-Performance Processor: Equipped with the PowerPC 750FX running at 800 MHz, providing robust computational capabilities for complex applications.
• Generous Memory: Features 512 MB of DDR SDRAM and 64 MB of flash memory, supporting significant processing and storage requirements.
• Versatile I/O: Includes multiple serial ports, Ethernet interfaces, SCSI, USB, and parallel I/O, allowing extensive peripheral and connectivity options.
• High-Speed Networking: Dual Gigabit Ethernet ports facilitate high-speed data transfer and reliable network communication.
• Expandable System: PCI expansion slots enable the addition of extra hardware and functionality.
• VMEbus Compatibility: Fully adheres to VMEbus standards, ensuring seamless integration with other VMEbus-based systems.

3. Application Scenarios

• Industrial Automation: Suitable for use in control systems requiring high reliability and extensive I/O options for managing and automating industrial processes.
• Military and Aerospace: Ideal for defense and aerospace applications where high performance, durability, and ruggedness are essential.
• Medical Systems: Applied in medical equipment and diagnostic systems where dependable performance and high processing power are crucial.
• Embedded Systems: Well-suited for embedded applications that need VMEbus compatibility and significant computational resources.

4. Additional Information

• Installation and Maintenance: The MVME61006E-0163 is designed for installation into a VMEbus chassis. Proper installation and maintenance are critical to ensure optimal performance and system longevity.
• Technical Support: For detailed specifications, installation instructions, and troubleshooting, consult the official product datasheet or contact Motorola (now part of Analog Devices) or authorized distributors.
