1. Technical Specifications

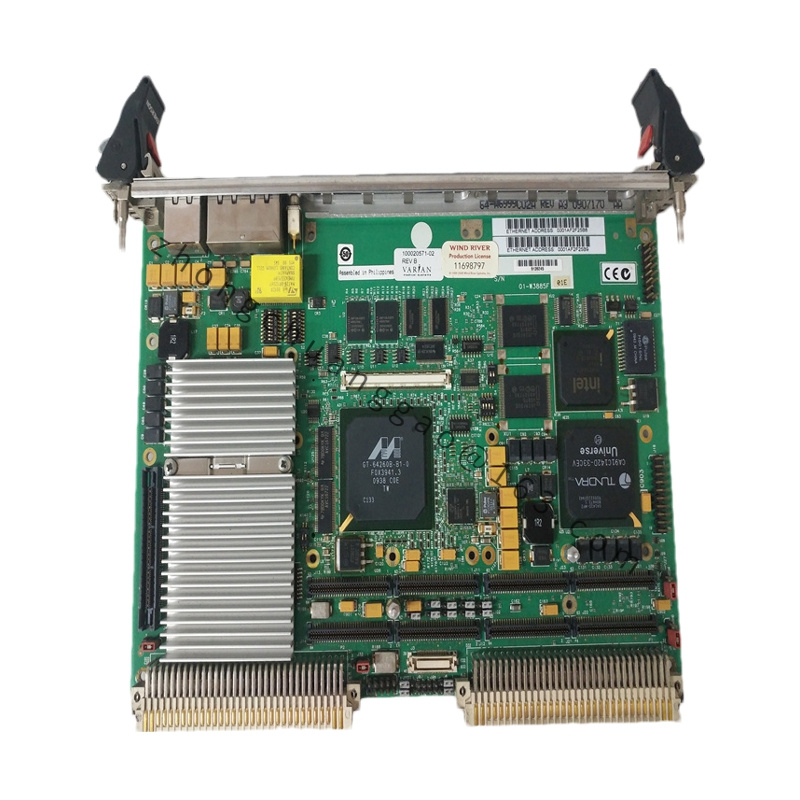

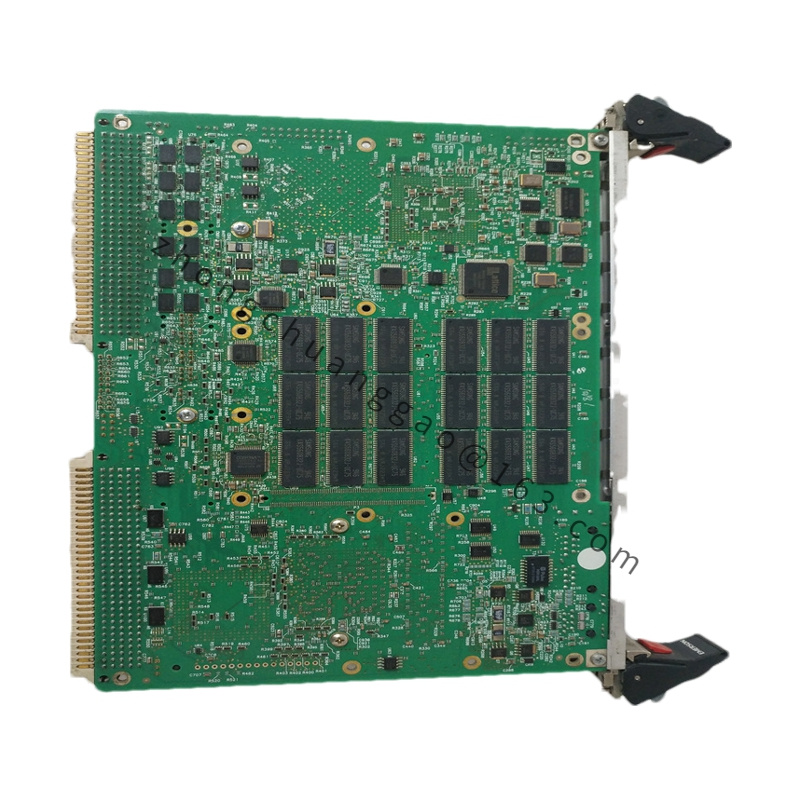

• Model: Motorola MVME5500
• Type: VMEbus Single-Board Computer
• Processor:
  • Type: Motorola PowerPC 7410 or 7447 processor.
  • Clock Speed: Operates at 500 MHz or 800 MHz, depending on the configuration.
• Memory:
  • RAM: Comes with onboard RAM ranging from 128 MB to 1 GB.
  • Flash Memory: Includes onboard flash memory for firmware storage and updates.
• I/O Interfaces:
  • Serial Ports: Multiple serial ports (typically RS-232 and/or RS-422) for serial communication.
  • Parallel I/O: General-purpose parallel I/O ports for connecting external devices.
  • Ethernet: Equipped with multiple Ethernet interfaces (usually 10/100Base-T or 1000Base-T) for network connectivity.
  • SCSI/IDE: Includes SCSI or IDE interfaces for high-speed peripheral connections, depending on the specific configuration.
  • USB: May include USB ports for additional connectivity options.
• Bus Interface:
  • VMEbus: Compliant with VMEbus standards, supporting integration with other VMEbus modules and systems.
• Power Requirements:
  • Operates within standard VMEbus power specifications. Exact power consumption and voltage requirements should be verified from the datasheet.

2. Key Features

• High Performance: Utilizes the PowerPC 7410 or 7447 processor, delivering robust performance for complex and demanding applications.
• Large Memory Capacity: Offers a broad range of memory options, supporting substantial data processing and storage needs.
• Flexible I/O Options: Includes a variety of I/O interfaces to accommodate different connectivity and peripheral requirements.
• Networking Capabilities: Multiple Ethernet interfaces provide versatile network connectivity and support for high-speed data transfer.
• VMEbus Compatibility: Fully adheres to VMEbus standards, ensuring seamless integration with existing VMEbus systems.
• Scalability and Upgradability: Supports a range of configurations and upgrades to meet evolving application demands.

3. Application Scenarios

• Industrial Automation: Suitable for control and automation systems where high performance and reliability are essential for managing and controlling machinery and processes.
• Military and Aerospace: Ideal for defense and aerospace applications due to its rugged design and high processing capabilities.
• Medical Systems: Used in medical imaging and diagnostic systems where performance and reliability are critical.
• Embedded Systems: Perfect for embedded applications that require robust VMEbus compatibility and substantial computational resources.

4. Additional Information

• Installation and Maintenance: The MVME5500 is designed to be installed into a VMEbus chassis. Proper installation, configuration, and ongoing maintenance are necessary to ensure optimal performance and reliability.
• Technical Support: For detailed technical specifications, installation procedures, and troubleshooting, refer to the official product datasheet or contact Motorola or its authorized distributors.
