1. Technical Specifications

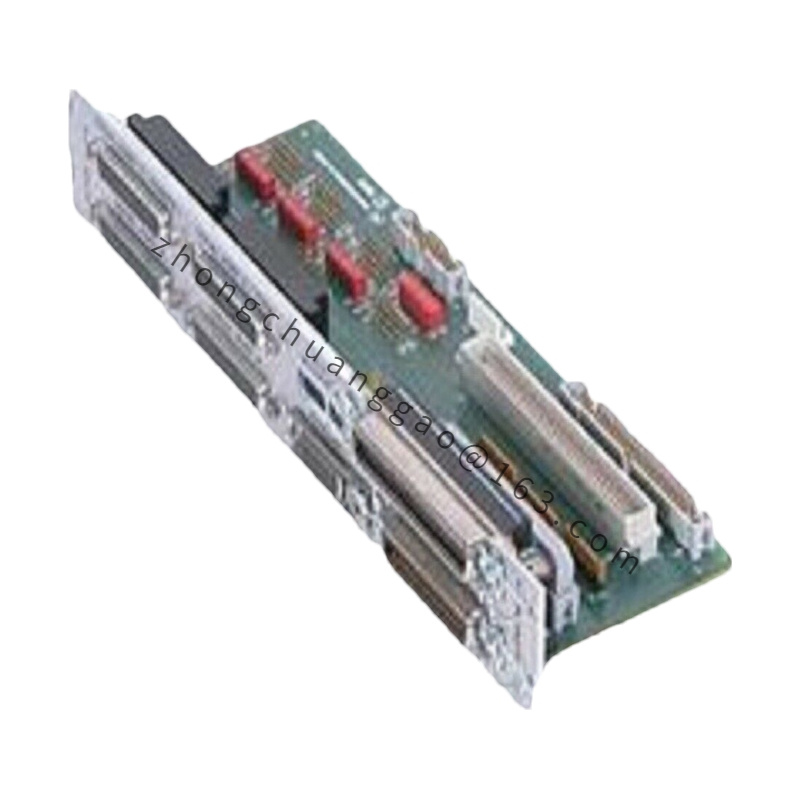

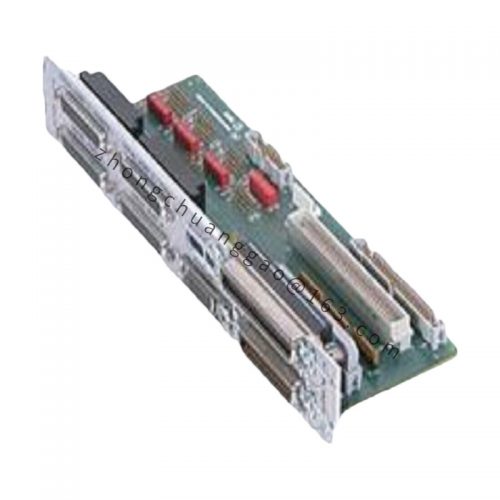

• Model: Motorola M-816346
• Type: VMEbus Module (typically a single-board computer or interface card)
• Processor:
  • Often equipped with a Motorola 68000-series microprocessor or similar. Specific processor details, such as clock speed and configuration, should be verified from the datasheet.
• Memory:
  • RAM: Typically includes onboard RAM, with configurations up to 4 MB or more. The exact RAM specifications are detailed in the datasheet.
  • ROM/Flash: Includes ROM or flash memory for storing firmware and system software. Exact capacities are specified in the datasheet.
• I/O Interfaces:
  • Serial Ports: Multiple serial communication interfaces (e.g., RS-232, RS-422) for serial data exchange.
  • Parallel I/O: General-purpose parallel I/O ports for interfacing with external devices.
  • Bus Interfaces: May support additional interfaces like SCSI or IDE, depending on the model.
• Bus Interface: Compliant with VMEbus standards, facilitating integration into VMEbus-based systems.
• Power Requirements: Operates within standard VMEbus power specifications. Detailed power requirements and consumption should be checked in the datasheet.

2. Key Features

• VMEbus Compliance: Fully adheres to the VMEbus standard, ensuring compatibility with other VMEbus components and systems.
• Versatile I/O Options: Offers a range of I/O options, suitable for various applications requiring different connectivity solutions.
• High Reliability: Designed for reliable operation in demanding environments, making it suitable for industrial, military, and aerospace applications.
• Expandable: May support additional expansions for memory or storage, depending on the specific needs and configuration.

3. Application Scenarios

• Industrial Automation: Used in control systems where reliable and flexible computing is required for managing and controlling industrial processes and machinery.
• Defense and Aerospace: Suitable for applications in defense and aerospace due to its rugged design and high-performance characteristics.
• Medical Systems: Applied in medical diagnostic and imaging systems where reliability and high performance are critical.
• Embedded Systems: Ideal for embedded systems requiring VMEbus compatibility and extensive I/O capabilities.

4. Additional Information

• Installation and Maintenance: Installation involves integrating the module into a VMEbus chassis and configuring it to work with other system components. Maintenance includes ensuring the module operates within its specified parameters and performing regular checks.
• Technical Support: Detailed support and documentation are available from Motorola or authorized distributors. For specific technical details, installation guidance, and troubleshooting, refer to the official product datasheet or contact Motorola directly.
