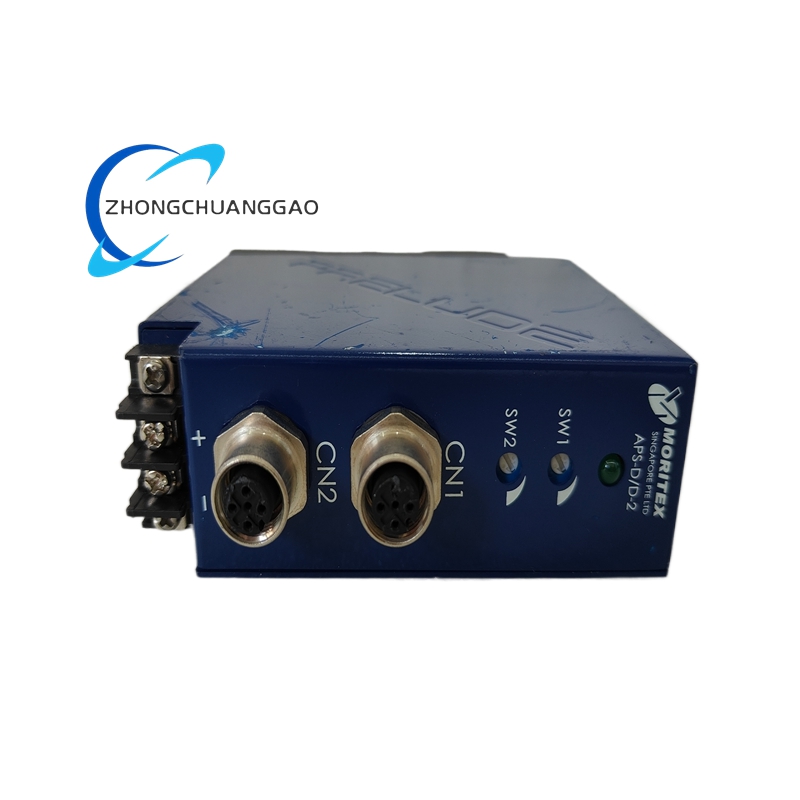

Technical Specifications​

Input Voltage:​ 24 VDC ±10%.

Channels:​ 2 independent outputs.

Output Voltage:​ up to 24 V per channel for the constant-voltage APS-D/D-2 configuration.

Output Current:​ 1.25 A maximum per channel; total maximum depends on model, 1.25 A total for APS-D/D-2B or higher aggregate for other APS-D variants.

Output Power:​ up to 30 W aggregate for supported dual-channel models.

Control:​ channel intensity adjustment; certain APS variants add external control, constant-current or programmable modes.

Mounting:​ DIN rail or panel mount.

Operating Temperature:​ 0 to 45°C.

Humidity:​ non-condensing, reduced specification at higher temperature.

Weight:​ approximately 450 g for APS-D/D-2B.

Functional Features​

Independent brightness setting for two LED banks.

Constant-voltage or constant-current operation according to model variant.

Natural convection cooling in compact industrial enclosure.

Compatible with MCV-Light and similar 24 V machine-vision LED units.

Status indication and protection against overcurrent or output fault according to variant.

Application Scenarios​

PCB inspection and solder-defect imaging.

Packaging, labeling and barcode verification.

Line-scan and area-scan lighting control.

Laboratory vision benches and industrial AOI enclosures.

Material and Structure​

Metal or industrial polymer enclosure according to variant.

Screw or connector terminals for 24 V input and LED loads.

Internal switched-mode power stage with filtering.

DIN/clip base and front adjustment elements.

Working Principle​

The controller regulates DC input into stable channel outputs. In constant-voltage mode it fixes LED supply within tolerance; in constant-current or strobe-capable variants it regulates current and can follow external trigger timing. Feedback maintains set intensity despite load and temperature changes.

Installation Requirements​

Use 24 VDC regulated supply sized for total LED wattage.

Mount on DIN rail or panel with airflow clearance.

Match connector polarity and per-channel current rating of the LED head.

Separate LED power cables from sensitive signal cables where practical.

Usage Precautions​

Do not exceed 1.25 A per channel or the total power rating of the specific variant.

Verify whether the unit requires constant-voltage, constant-current or external-trigger mode before connection.

Keep the enclosure away from high-heat drives and sealed without ventilation.

Replace or service immediately if overcurrent protection trips repeatedly.
