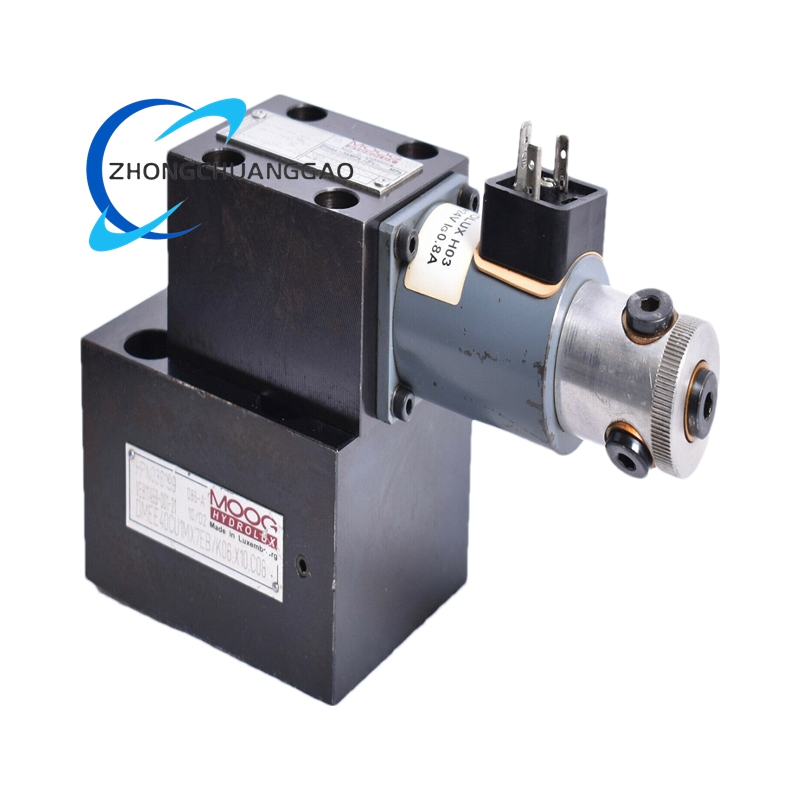

Moog D635-606C Electro-Hydraulic Servo Valve
Technical Specifications:
- Nominal Flow: 30 liters per minute at 70 bar pressure drop.
- Maximum Pressure: 350 bar, allowing operation in high-pressure hydraulic systems.
- Frequency Response: Up to 100 Hz, enabling rapid dynamic adjustments.
- Linearity: Within ±1% of full scale, ensuring consistent performance across the operating range.
- Temperature Range: -40°C to +120°C, suitable for extreme environmental conditions.
Detailed content
- Functional Characteristics:
- Direct Drive: Utilizes a torque motor to directly drive the spool, eliminating the need for intermediate mechanical linkages and improving response time.
- Integrated Electronics: Features on-board electronics for signal conditioning and amplification, simplifying system integration.
- Fail-Safe Design: Incorporates features to ensure safe operation in the event of power loss or system failure.
Application Scenarios: - Plastic Injection Molding: Controls the position of the injection screw for precise material flow and part quality.
- Paper Manufacturing: Regulates the tension of paper rolls during production to prevent wrinkles or breaks.
- Automotive Testing: Used in test rigs to simulate driving conditions and measure vehicle component performance.
