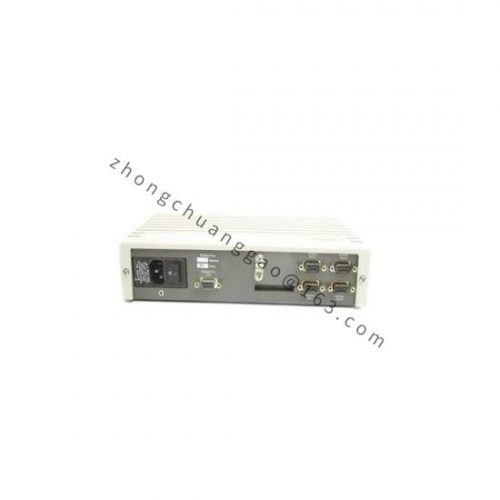

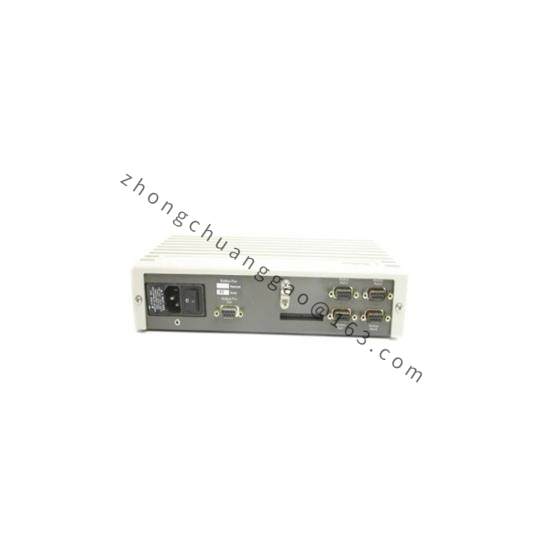

Modicon AS-BADU-204 PLC I/O Module
The Modicon AS-BADU-204 is an advanced I/O module designed for industrial automation systems. It is part of the Modicon series, renowned for their reliability and efficiency. This module integrates seamlessly into industrial control networks, enhancing system performance and enabling real-time data processing.
Detailed content
Manufacturer:Schneider Electric
Model:AS-BADU-204
Product Type:PLC Input Module
Input Channels:16
Input Type:Digital
Voltage Range:24V DC
Current Rating:0.5A per channel
Communication Protocol:Modbus RTU
Operating Temperature:-25°C to +70°C
Storage Temperature:-40°C to +85°C
Dimensions:Width: 35mm, Height: 90mm, Depth: 65mm
Weight:Approximately 0.2kg
The Schneider Electric MODICON AS-BADU-204 is an ideal solution for applications requiring compact and efficient control systems. It combines robust performance with user-friendly programming tools, making it perfect for small to medium-sized industrial environments.
This PLC features a versatile I/O capacity that supports up to 64 digital inputs and outputs, providing flexibility in various automation tasks. The device operates within a wide temperature range, ensuring reliable performance in diverse environmental conditions.
With built-in communication protocols such as Modbus RTU and ASCII, the MODICON AS-BADU-204 easily integrates into existing industrial networks. Its memory capacity of 32 KB allows for extensive programming and data storage, supporting complex control strategies.
The PLC is equipped with multiple programming languages including Ladder Diagram, Function Block Diagram, and Structured Text, catering to different skill levels and preferences. The compact design ensures easy installation and minimal space requirements.
For maintenance and troubleshooting, the MODICON AS-BADU-204 provides comprehensive diagnostic capabilities and a user-friendly interface. It simplifies setup and operation, enabling quick commissioning and reducing downtime.
