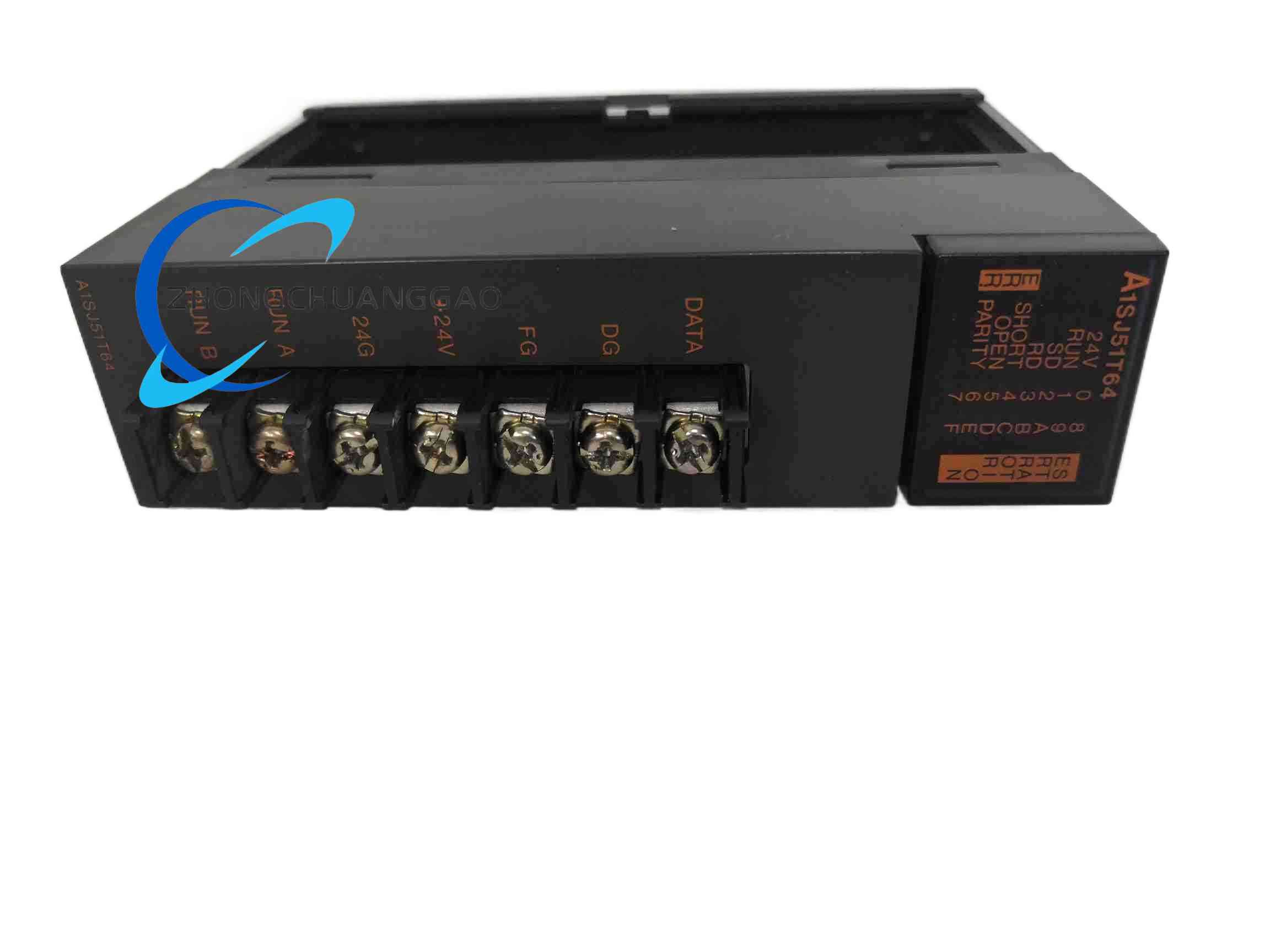

MITSUBISHI A1SJ51T64
Product Name: MELSEC-I/O Link Remote I/O Master Module
Product Introduction: The Mitsubishi A1SJ51T64 is a remote I/O system master module for the MELSEC-A series PLC. It serves as the central master in a MELSEC-I/O Link configuration, connecting and managing distributed remote I/O stations for data acquisition and control signal transmission.
Detailed content
Technical Specifications:
|
Parameter
|
Value
|
|---|---|
|
Brand
|
MITSUBISHI (Mitsubishi Electric)
|
|
Model
|
A1SJ51T64
|
|
Product Type
|
I/O Link Master Module
|
|
Series
|
MELSEC-A
|
|
Max Remote Stations
|
16 stations per master
|
|
Max I/O Points
|
128 points (64 input + 64 output)
|
|
Communication Protocol
|
I/O Link (MELSECNET/10 compatible)
|
|
Communication Speed
|
38.4 kbps
|
|
Bus Form
|
T-branch possible, no terminal resistance required
|
|
Max Cable Length
|
200 meters
|
|
Operating Voltage
|
DC 21.6–27.6 V (typical 24 VDC)
|
|
Typical Current
|
Approx. 90 mA at 24 VDC
|
|
I/O Refresh Time
|
Approx. 5.4 ms
|
|
Dimensions (H×W×D)
|
130 × 34.5 × 106.6 mm
|
|
Weight
|
0.3 kg
|
|
Operating Temperature
|
0°C to +55°C
|
|
Certifications
|
UL, CSA, CE
|
Functional Features:
- High-speed data transmission with fixed refresh time regardless of point count
- Flexible I/O split configuration (16/32/48 points)
- Bus-type topology supporting T-branch wiring without terminal resistors
- LED status indicators for monitoring RUN A, RUN B, and error conditions
- Built-in diagnostics for remote I/O device monitoring
Structural Characteristics:
- Single-slot rack-mount structure for A-series base unit
- Front-side terminal wiring area
- LED indicator layout on front panel
- Rear edge connector for backplane bus connection
Working Principle:
The module receives instruction data from the PLC CPU through the backplane bus, converts parallel data into serial I/O Link bus signals, and transmits them to remote I/O stations. It receives uploaded signal data from each remote station, converts it back to parallel data, and transmits it to the PLC CPU for logical operation processing.
Installation Requirements:
- Insert into designated slot of MELSEC-A base rack
- Lock module fixing buckle
- Use shielded cable of 0.75 mm² or above for I/O Link bus wiring
- Complete station address setting for each remote I/O station
Usage Notes:
- Do not hot-plug module while powered on
- Comply with maximum total bus length limit
- Ground shield layer of communication cable at single end only
- Avoid strong electromagnetic field interference environments
- Perform station number verification before system startup
