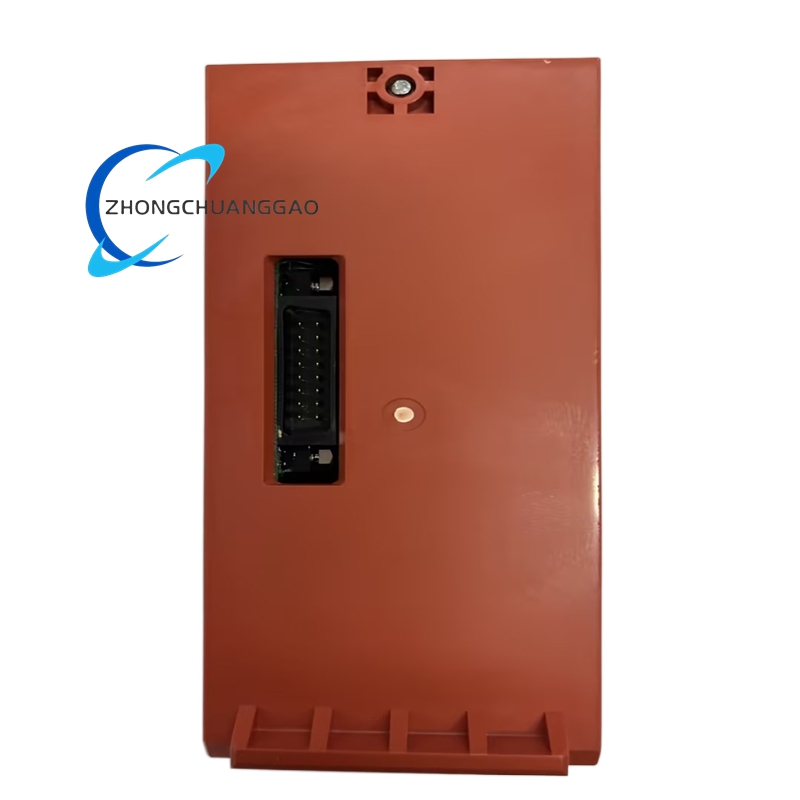

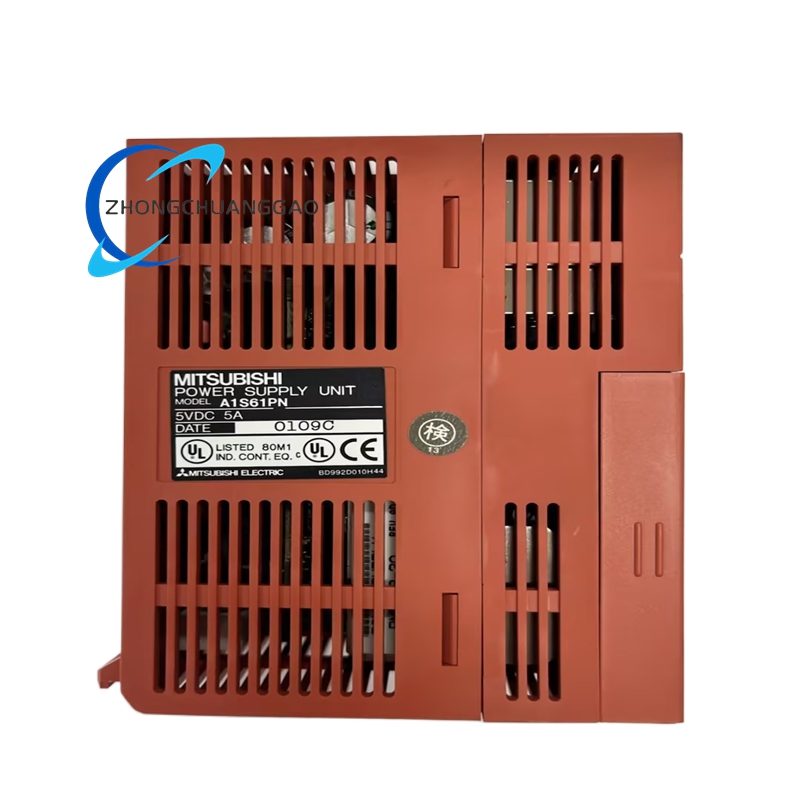

MITSUBISHI A1S61PN
Product Name: MELSEC-A (AnS Series) Power Supply Module
Product Introduction: The Mitsubishi A1S61PN is a dedicated DC power supply module designed for the MELSEC-A Series programmable logic controller (PLC) platform. It converts standard AC line voltage into regulated DC power required by the CPU, I/O modules, and communication units installed on the base rack.
Detailed content
Technical Specifications:
|
Parameter
|
Value
|
|---|---|
|
Brand
|
MITSUBISHI (Mitsubishi Electric)
|
|
Model
|
A1S61PN
|
|
Product Type
|
Power Supply Module (PSU)
|
|
Series
|
MELSEC-A (AnS Series)
|
|
Input Voltage
|
AC 100–240 V
|
|
Input Frequency
|
50/60 Hz
|
|
Input Current
|
1.5 A (at 100 V) / 0.7 A (at 200 V)
|
|
Output Voltage
|
DC 5 V
|
|
Output Current
|
5 A
|
|
Max Output Power
|
25 W
|
|
Apparent Power
|
105 VA
|
|
Overcurrent Protection
|
5.5 A threshold
|
|
Overvoltage Protection
|
5.5–6.5 V
|
|
Efficiency
|
≥65%
|
|
Dimensions (H×W×D)
|
130 × 55 × 93.6 mm
|
|
Weight
|
0.6 kg
|
|
Operating Temperature
|
0°C to +55°C
|
|
Storage Temperature
|
-20°C to +75°C
|
|
Compliance
|
CE, UL/cUL, LR, NK
|
Functional Features:
- Wide input voltage range (100–240 VAC) with automatic adaptation
- Built-in overcurrent and overvoltage protection
- Compact form factor matching AnS series backplane slot
- Stable 5 V backplane supply for CPU and I/O modules
Installation Requirements:
- Insert into the dedicated power supply slot on A1S32B, A1S33B, A1S35B, or A1S38B base units
- Secure with module fixing screws
- Ensure proper protective earth connection
Usage Notes:
- Maintain ambient temperature within 0–55°C
- Keep cabinet ventilated to prevent overheating
- Regularly inspect terminal tightness and clean dust accumulation
- Do not exceed total 5 V load capacity of connected modules
