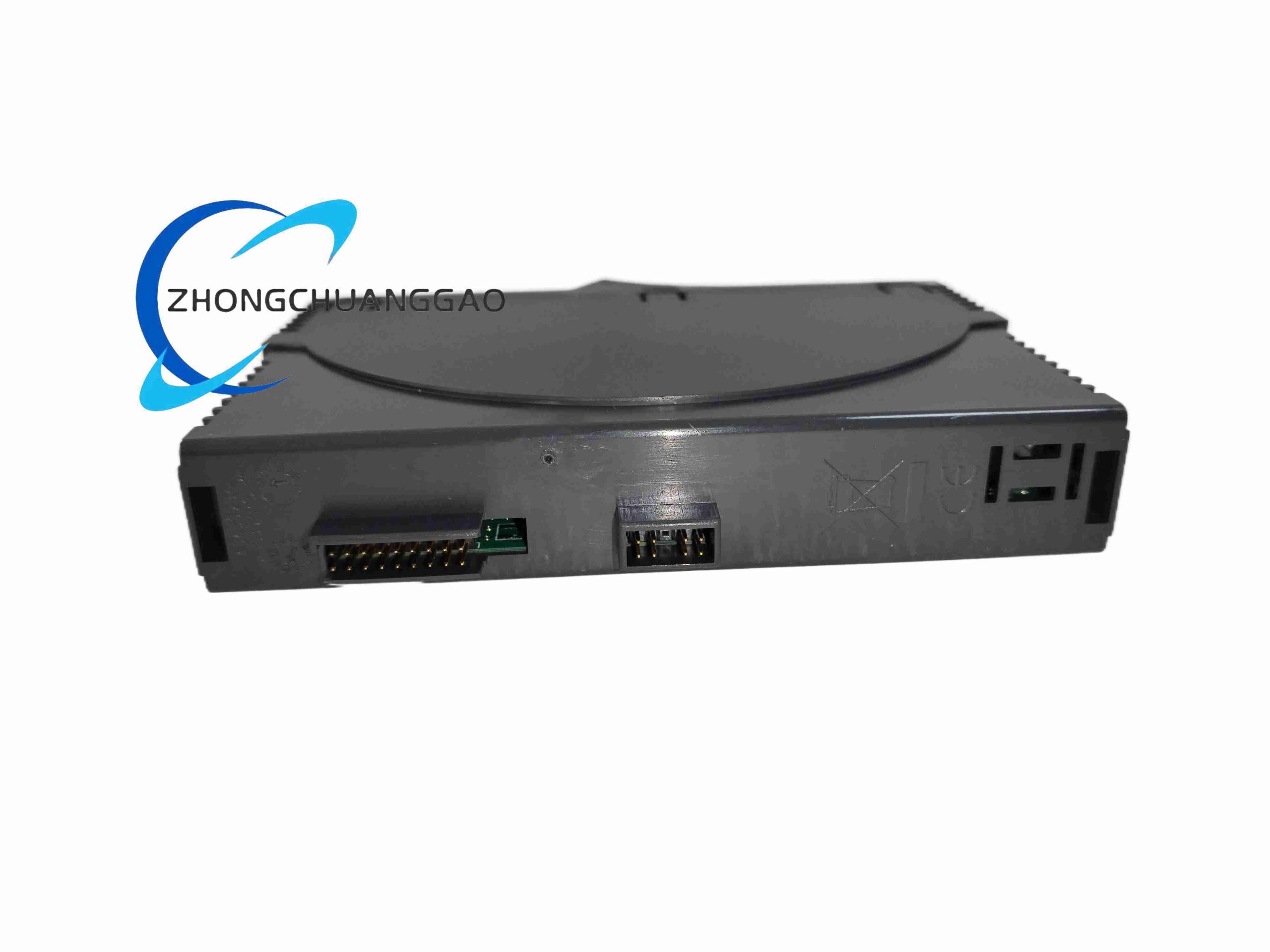

Metso D201471
Product Name: Smart Valve Positioner Electronic Controller Module
Product Introduction: This module represents the electronic controller section of a Neles smart positioner. It processes the control signal, executes positioning algorithms and supports digital field communication for diagnostic and configuration purposes.
Detailed content
Technical Specifications:
- Input signal: 4–20 mA DC with HART as standard
- Optional fieldbus: Profibus PA or Foundation Fieldbus according to complete assembly variant
- Control interface: digital position loop output to pneumatic pilot stage
- Communication: HART diagnostic data, parameter upload and calibration feedback
- Mounting: positioner electronic compartment
Functional Features:
- Closed-loop digital position control
- Adaptive gain tuning for actuator friction and load variation
- Remote configuration through HART handheld or DCS function block
- Fault detection for sensor, air supply and travel deviation
Material Composition:
- Electronics: industrial PCB with microcontroller, HART transceiver and signal isolators
- Housing interface: sealed aluminum or engineered polymer section depending on complete positioner model
- Connectors: plated contacts rated for instrumentation loops
Structural Characteristics:
- Independent electronics module form factor for Neles positioner platforms
- Integrated signal conditioning, microprocessor and communication stages
- Vibration-damped internal mounting
Working Principle: The module receives the analog setpoint, converts it to a digital command and compares it with stem feedback. The control algorithm generates a pilot drive signal. HART or optional fieldbus provides two-way data exchange for tuning, calibration and health monitoring.
Installation Requirements: Fit into the specified Neles positioner housing. Connect the 4–20 mA loop with proper polarity and shielding. Set HART address and perform auto-calibration after mechanical installation.
Usage Precautions: Verify the complete positioner model before substituting the electronic module. Protect the module from moisture and electrostatic discharge. Recheck zero, span and deadband after every replacement.
