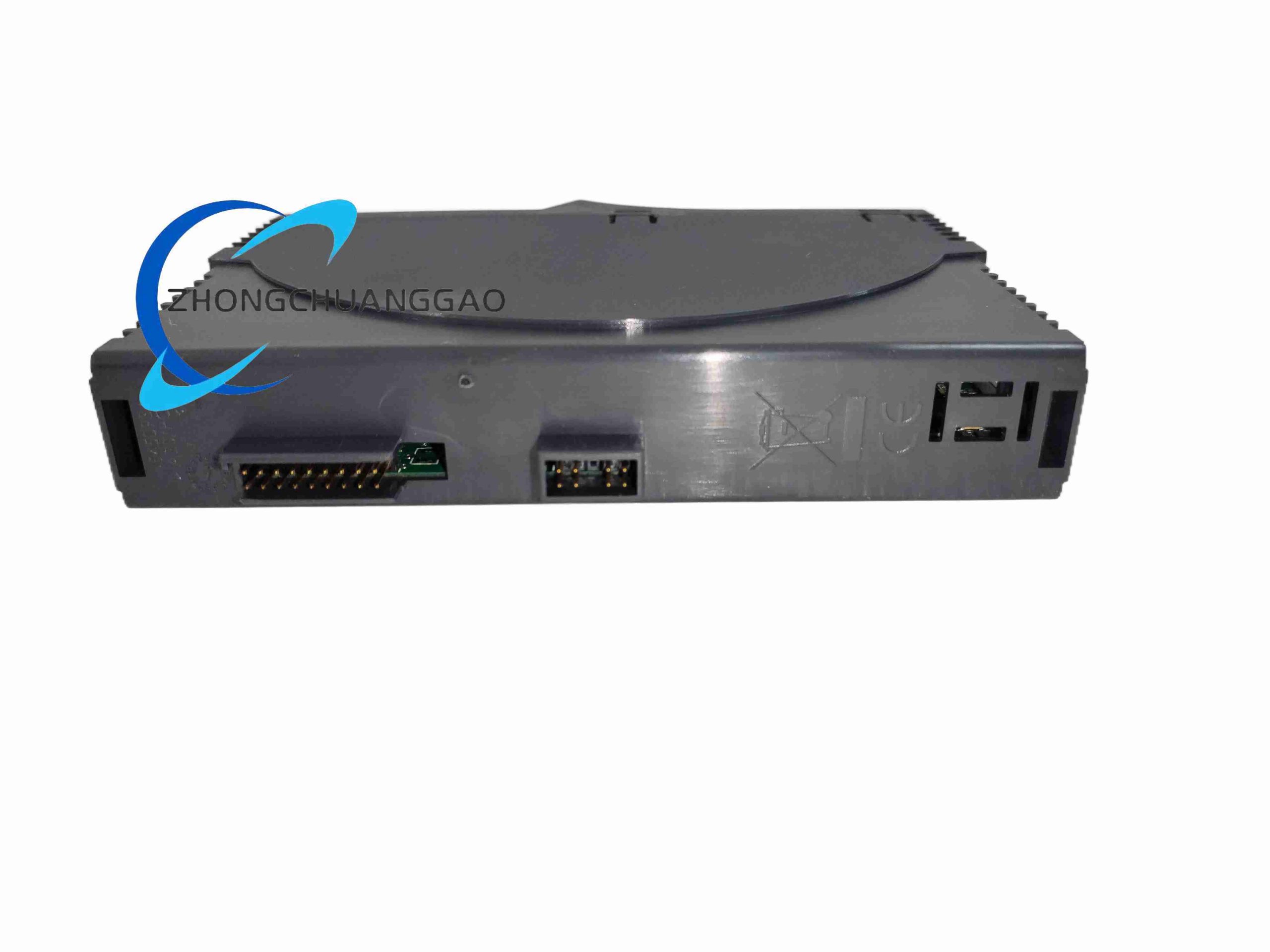

Metso D201466
Product Name: Smart Valve Positioner Internal Electronics Module
Product Introduction: This module is the core processor board used inside Neles ND9000 or compatible Series 2000 smart positioners. It interfaces between the control system current signal and the pneumatic pilot section.
Detailed content
Technical Specifications:
- Input signal: 4–20 mA DC with HART
- Interface outputs: pilot driver control signals for pneumatic section
- Onboard functions: microprocessor control, analog-to-digital and digital-to-analog conversion, HART modem
- Operating temperature: industrial positioner range, configure according to complete assembly specification
- Mounting: internal PCB for positioner housing
Functional Features:
- Digital signal processing for closed-loop position control
- HART configuration and diagnostic communication
- Piezoelectric pilot driver interface
- Open/short sensor and calibration fault reporting
Material Composition:
- Board: industrial-grade FR4 PCB
- Connectors: gold or tin-plated signal contacts
- Electronic components: extended-temperature operational amplifiers, microcontrollers and HART transceiver
- Enclosure interface: sealed positioner electronics compartment
Structural Characteristics:
- Compact processor card with microprocessor, A/D-D/A converters and HART modem
- Rear or edge connector interface to positioner power and pilot stages
- Damping mounts for vibration resistance inside actuator assembly
Working Principle: The board receives 4–20 mA with HART from the DCS. The A/D converter samples the setpoint while the feedback input monitors stem position. The microcontroller computes the control error and drives the D/A and piezoelectric pilot interface. The HART modem shares the same loop for configuration and diagnostics.
Installation Requirements: Install as a replacement PCB only inside the matching Neles positioner model. Align feedback linkage and recalibrate zero and span after installation.
Usage Precautions: Avoid electrostatic discharge when handling the board. Confirm positioner model compatibility before replacement. Perform full auto-calibration after any electronics swap.
