Operating Voltage:DC 5V to 36V

Current Handling Capacity:Up to 10A

Temperature Range:-40°C to +85°C

Communication Interface:RS-485

Signal Processing Time:Less than 1ms

Input Resistance:10kΩ

Output Protection:Overcurrent & Short-circuit

Power Consumption:Max. 1W

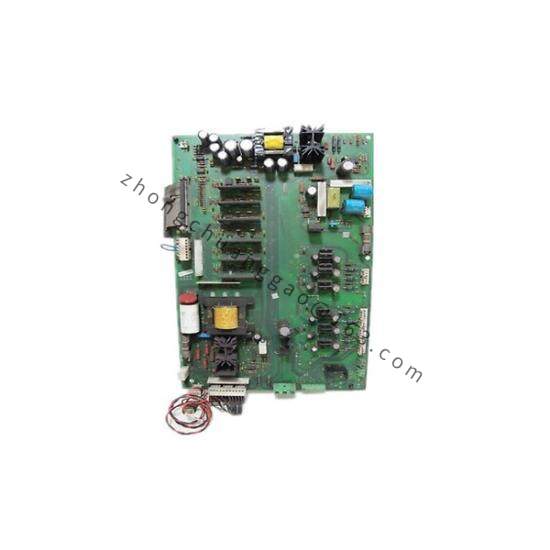

    The ABB 1336-BDB-SP49D Gate Driver PC Board is engineered for seamless integration into complex industrial control systems, providing unparalleled reliability and efficiency. This board is equipped with advanced gate driver technology, ensuring fast and accurate switching operations in power-intensive applications.

    Crafted from robust Rigid FR-4 epoxy resin, the board offers exceptional thermal stability and mechanical durability, making it suitable for extreme environmental conditions. Its compact size facilitates easy installation in various industrial settings without compromising performance.

    With a wide operating voltage range and a high maximum current capacity, this gate driver board is versatile enough to cater to diverse industrial requirements. It supports a high switching frequency of up to 50kHz, enabling rapid response times in dynamic systems.

    The integrated input voltage range of 5V to 30V allows for flexible connection with different power sources, enhancing compatibility across various industrial equipment. The temperature range of -40°C to +85°C ensures reliable operation under harsh conditions, further extending its applicability.

    Designed with precision and built to withstand rigorous use, the ABB 1336-BDB-SP49D Gate Driver PC Board is an essential component for enhancing the performance of power electronics systems in industries such as manufacturing, automotive, and renewable energy.
