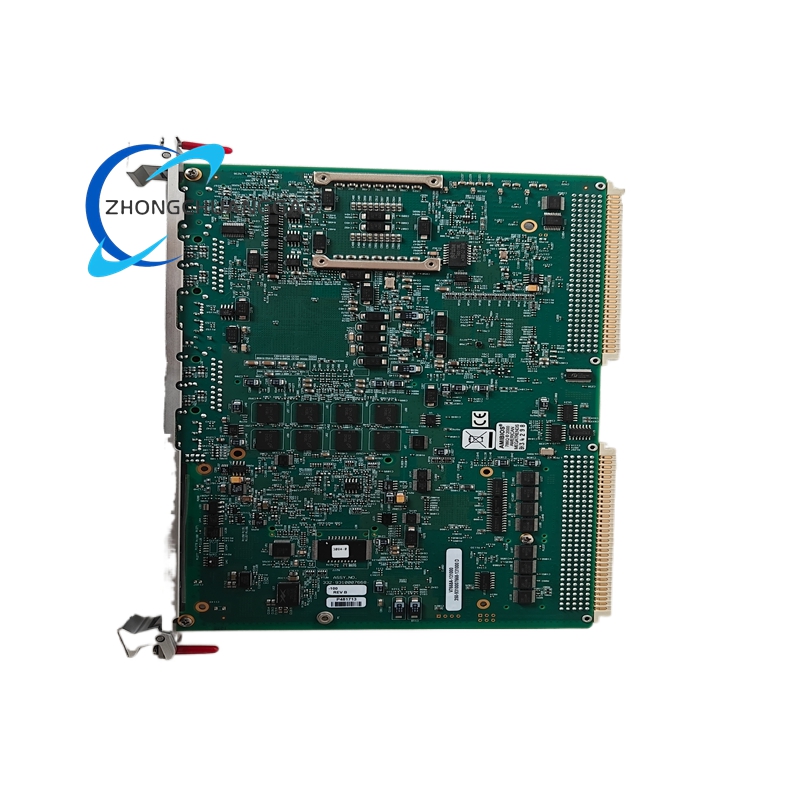

Technical Specifications:​ 6U VME/VME64x form factor, backplane power +5 V, +12 V, -12 V, onboard industrial CompactFlash storage, SODIMM memory with ECC, dual RJ-45 Ethernet ports, serial RS-232/RS-422 channels, PMC/XMC expansion, front-panel diagnostic LEDs, operating temperature 0°C to +55°C.

Performance Parameters:​ Real-time task distribution across VME backplane, Ethernet communication for tool and cluster networks, ECC memory error correction, CompactFlash-based configuration and boot storage.

Materials And Structure:​ Multilayer industrial PCB, metal bracket/faceplate, VME edge connector, memory sockets, storage socket, Ethernet/serial connectors and diagnostic LED array.

Working Principle:​ The board boots the tool real-time operating environment, communicates with chamber controllers, RF/gas/vacuum modules and host software over VME and Ethernet, and executes process recipes with interlock supervision.

Application Scenarios:​ Lam 2300, Kiyo, Vector, Synergy and related etch/deposition platforms; VME-based fab tool control cabinets.

Installation Requirements:​ Install in the assigned VME slot using ESD procedure, confirm +5/+12/-12 V backplane supply, match firmware/BIOS/build version to the tool software release, seat the CompactFlash and memory modules correctly, verify Ethernet addressing before power-up.

Usage Notes:​ Perform a full system configuration backup before board removal. Do not hot-swap the controller. Verify serial numbers, revision codes and bench test reports for replacement units. Check Ethernet duplex, IP parameters and bus arbitration after installation.
