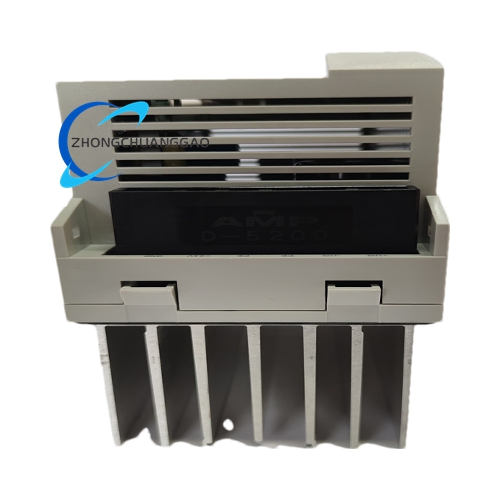

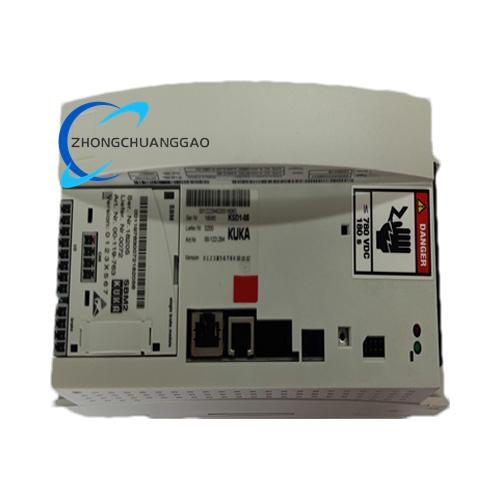

KUKA KSD1-08 Servo Drive Module – Complete Technical Profile

Technical Specifications

  1. Electrical Parameters:
    • Rated Current: 4 A (continuous operation) .
    • Peak Output Current: 8 A (short-term overload) .
    • Power Supply: 24 V DC ±10% .
    • Output Frequency: 50 Hz .
    • Control Modes: Position, velocity, and torque control .
    • Feedback Interfaces:
      • Quadrature encoders (incremental/absolute) .
      • Analog sensors (e.g., displacement, pressure) via multiplexed ADC channels .
WhatApp
WeChat

Detailed content

  1. Physical Dimensions:
    • Size: 88 mm (H) × 240 mm (W) × 180 mm (D) .
    • Weight: Approx. 0.5 kg .
  2. Environmental Ratings:
    • Operating Temperature: 0°C to +45°C .
    • Protection Class: IP20 (standard); IP67 available for harsh environments .
  3. Communication Protocols:
    • Interbus interface for drive bus integration .
    • EtherCAT, CANopen, and analog/digital I/O .
    • Supports Profibus-DP slave interface (up to 12 Mbit) .
  4. Real-Time Performance:
    • Control Precision: 20-bit encoder resolution for micron-level accuracy .
    • Loop Update Rate: 62.5 µs for PID control .

Functional Features

  1. High Dynamic Response:
    • Advanced control algorithms (e.g., PID tuning) ensure rapid adjustment to load changes, minimizing overshoot and settling time .
  2. Integrated Safety Protections:
    • Real-time monitoring of motor current, short-circuit detection, and thermal shutdown to prevent hardware damage .
    • Redundant Ethernet ports (ENet1/ENet2) for fail-safe operation during network disruptions .
  3. Modular Design:
    • Plug-and-play integration with KUKA KR C2 control cabinets via standardized 68-pin VHDCI connectors .
    • Auto-reconfiguration via ToolboxST software after module replacement .
  4. Energy Efficiency:
    • Servo jet pilot technology reduces energy consumption by >90% in multi-axis systems .
  5. Diagnostics and Maintenance:
    • Front-panel LEDs for real-time status indication (e.g., power, fault alerts) .
    • Manual testing modes (e.g., actuator stroking) for proactive anomaly detection .

Application Scenarios

  1. Industrial Robotics:
    • Controls 1–8 axes in KUKA robots (e.g., KR 16, KR 16L6) for precision assembly, welding, and material handling .
  2. Automotive Manufacturing:
    • Drives servo motors in automated production lines for tasks like spot welding (e.g., 6-axis coordination) .
  3. Packaging Machinery:
    • Synchronizes conveyor belts and rotary fillers with ±0.01 mm positional accuracy .
  4. Aerospace Testing:
    • Simulates thrust vectoring in jet engine rigs via hydraulic actuator control .
  5. Medical Equipment:
    • Enables micron-level motion in CT scanner positioning systems .

Compatible Ecosystem

  1. KUKA System Integration:
    • Controllers: KR C2/KR C4 cabinets .
    • Power Supply: KPS-600/20-ESC module .
    • Terminal Boards: TSVO for I/O signal routing .
  2. Software Tools:
    • KUKA System Software (KSS 8.x): IEC 61131-3 compliant programming environment .
    • ToolboxST: Configures Ethernet parameters and auto-replication .

Installation & Maintenance

  1. Deployment Guidelines:
    • DIN rail mounting; ensure minimal clearance (≥50 mm) for heat dissipation .
    • Isolate from high-vibration equipment to prevent connector fatigue .
  2. Preventive Measures:
    • Bi-annual inspection of power connectors and cooling vents .
    • Verify encoder cable integrity using trend recorder logs .
  3. Troubleshooting:
    • “Attn” LED Activation: Check terminal board connections or encoder feedback .
    • Sudden Power Drops: Validate 24 V DC input stability .

Certifications & Support

  • Compliance: CE, UL, RoHS .
  • Warranty: 12-month manufacturer coverage .
  • Global Service: Technical support via KUKA-certified engineers; expedited shipping (e.g., DHL/SF Express) .
