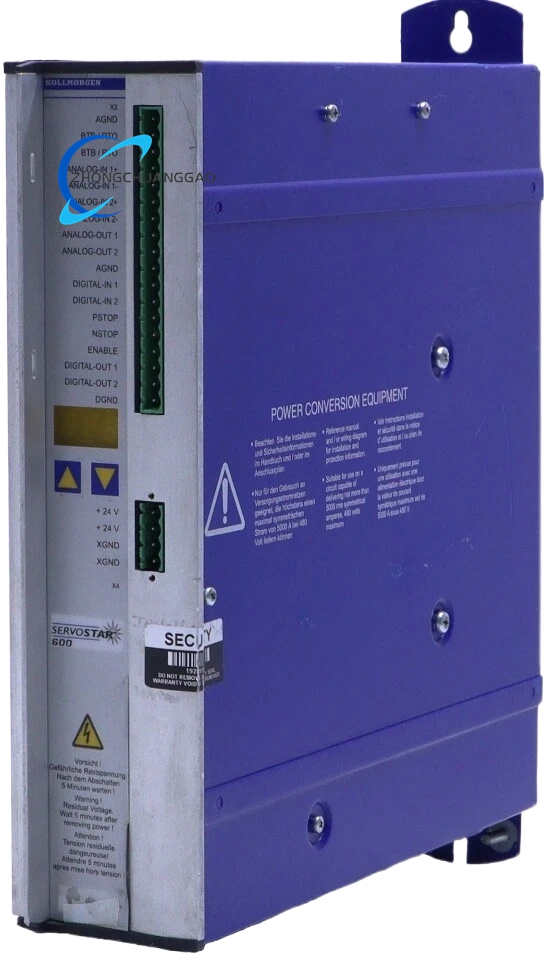

Technical Specifications & Core Performance Parameters (Bold Key Data)

• Input Power Supply: Three-Phase AC 208V ~ 480V, 50/60Hz industrial three-phase mains
• Rated Continuous Output Current: 9.6 Arms
• Peak Transient Output Current: 28.8 Arms (2-second maximum sustain)
• Maximum Matching Motor Output Power: 3.0kW continuous rated power
• DC Bus Operating Voltage: 320VDC ~ 900VDC; overvoltage protection threshold 900VDC, undervoltage threshold 200VDC
• PWM Switching Frequency: 8kHz fixed carrier frequency
• Control Loop Bandwidth: Speed loop maximum bandwidth 400Hz
• Supported Feedback Systems: Resolver, EnDat 2.2, BiSS, HIPERFACE, SSI absolute encoder, incremental sine-cosine encoder
• Standard Communication Interface: CANopen onboard; optional expansion cards: PROFIBUS-DP, DeviceNet, SERCOS
• Control Modes: Torque closed-loop, velocity closed-loop, position closed-loop, constant tension control (optimized firmware version 590)
• Physical Dimensions: W 90mm × H 380mm × D 260mm
• Net Weight: 5.2kg
• Protection Class: IP20 cabinet internal installation only
• Operating Ambient Temperature: 0°C ~ +45°C full rated output; linear derate 2.5% per °C above 45°C
• Storage Temperature Range: -25°C ~ +60°C
• Relative Humidity Tolerance: ≤85% RH, no condensation allowed
• Certifications: UL, cUL, CE, EMC Class B industrial electromagnetic compatibility certification

Material Composition

1. Outer Cabinet Shell: Thickened cold-rolled steel plate anti-corrosion black electrophoretic coating
2. Main Heat Dissipation Structure: Large-volume extruded aluminum alloy finned heat sink with built-in DC cooling fan
3. Main Control PCB: Multi-layer FR4 high-temperature resistant fiberglass circuit board, industrial grade SMD power components
4. Power Stage: Three-phase silicon IGBT power bridge with independent temperature sensing thermistor
5. Terminal Connectors: Heavy-duty nickel-plated copper power terminals, flame retardant PA66 plastic signal terminal blocks
6. Built-in Filter Module: High-capacity EMC power filter with metal film suppression capacitors and high-permeability ferrite inductors

Structural Features

1. Vertical DIN rail mounting structure, standard 35mm industrial cabinet rail compatible
2. Separated upper signal expansion card slot zone and lower heavy power terminal zone, complete physical isolation of strong/weak current circuits
3. Front panel multi-color LED status indicator array: Main Power, DC Bus Fault, Over-Temperature, Communication Link, Axis Running, STO Safety Fault
4. Rear built-in DC cooling fan with replaceable dust filter screen for long-term heavy-load operation
5. Standard CANopen communication onboard; rear side expansion card slot supports pluggable PROFIBUS/SERCOS communication modules without drive disassembly
6. Internal independent braking resistor mounting cavity, external high-power regenerative braking resistor optional for frequent high-speed deceleration equipment

Working Principle

1. Three-phase industrial AC mains input passes built-in EMC filter and full-wave rectifier to generate high-voltage DC bus power supply for IGBT power stage
2. DSP digital control chip executes sine-wave vector PWM modulation to output adjustable frequency three-phase power to servo motor stator windings
3. Version 590 firmware integrates dedicated constant tension control algorithm: Real-time winding diameter calculation via encoder feedback signal, automatic torque output adjustment to maintain constant material tension during unwinding/winding processes
4. Multi-channel feedback signal decoding module processes absolute encoder and resolver rotor position signals to realize high-precision triple closed-loop motion control
5. Complete hardware protection circuit continuously monitors DC bus voltage, three-phase output current, heat sink temperature, motor winding temperature and feedback signal integrity; instant hardware power cutoff upon parameter exceeding rated threshold
6. Plug-in communication expansion card realizes multi-drive bus synchronous linkage for heavy-load multi-axis production line equipment

Function Characteristics

1. Optimized constant tension control algorithm (unique to 590 hardware firmware version), tension control accuracy up to 0.01% without external tension sensor
2. Support four-quadrant regenerative braking operation, energy feedback to DC bus for multi-drive shared DC bus system
3. Built-in encoder emulation output with configurable resolution for master-slave axis synchronous follow-up cutting applications
4. Multi-level overcurrent protection classification: Light overload warning, medium overload deceleration, heavy overload immediate power cutoff
5. Stored 50 groups of complete fault waveform data for offline equipment failure analysis and troubleshooting
6. IEC 61131 compatible macro programming language supports complex custom motion logic sequence editing

Advantage Highlights

1. Version 590 factory preset tension control firmware eliminates post-delivery software upgrade operation for winding/coating machinery customers
2. Built-in high-capacity EMC filter meets Class B EMC standard without external filter module procurement
3. Large aluminum heat sink with built-in cooling fan supports 24-hour continuous heavy-load operation without power derating
4. Plug-and-play communication expansion card design, flexible bus protocol switching without drive hardware replacement
5. Four-quadrant regenerative braking reduces energy consumption by 20% for frequent acceleration/deceleration heavy-load equipment
6. High three-phase output current capacity matches large frame AKM series high-torque servo motors for heavy industrial automation equipment

Applicable Industries

Installation Requirements

1. Vertical mounting on standard 35mm DIN rail inside sealed electrical cabinet; maintain 120mm minimum top ventilation clearance, 50mm bottom clearance for cooling fan airflow
2. Cabinet forced ventilation system mandatory for continuous 24-hour full-load operation above 40°C ambient temperature
3. Three-phase power input cable cross-section ≥4mm² copper wire; servo motor power cable minimum cross-section 2.5mm² copper conductor
4. Equipment unified grounding bar connection, grounding resistance ≤4Ω; power shield layer and signal cable shield layer single-end grounded at drive terminal side only
5. Strong power wiring and weak signal wiring separated into independent cable troughs, minimum 20cm separation distance to suppress electromagnetic coupling interference
6. Installation environment strictly isolated from conductive metal dust, corrosive chemical gas and water vapor; air intake filter screen installed at cabinet air inlet

Usage Precautions

1. Disconnect three-phase main power supply and wait 15 minutes for high-voltage DC bus capacitor full discharge before disassembling wiring terminals to prevent lethal electric shock hazard
2. Forbid direct short-circuit of motor three-phase output terminals under powered state; instantaneous short-circuit causes permanent breakdown of internal IGBT power module
3. Regular monthly cleaning of rear cooling fan dust filter screen; blocked filter causes heat sink over-temperature protection and equipment production shutdown
4. Prohibit operation under condensation environment; moisture infiltration leads to high-voltage PCB insulation breakdown and short-circuit fire risk
5. Avoid installation near strong vibration sources (hydraulic stamping equipment, large metal cutting machine tools); long-term vibration loosens heavy-duty power terminal wiring
6. DC bus parallel connection between multiple S60300-590 drives must use dedicated DC bus equalization cables per official wiring specification to eliminate current imbalance
7. External regenerative braking resistor wiring must adopt high-temperature resistant wire with over-temperature thermal fuse installed in series per rated power matching
