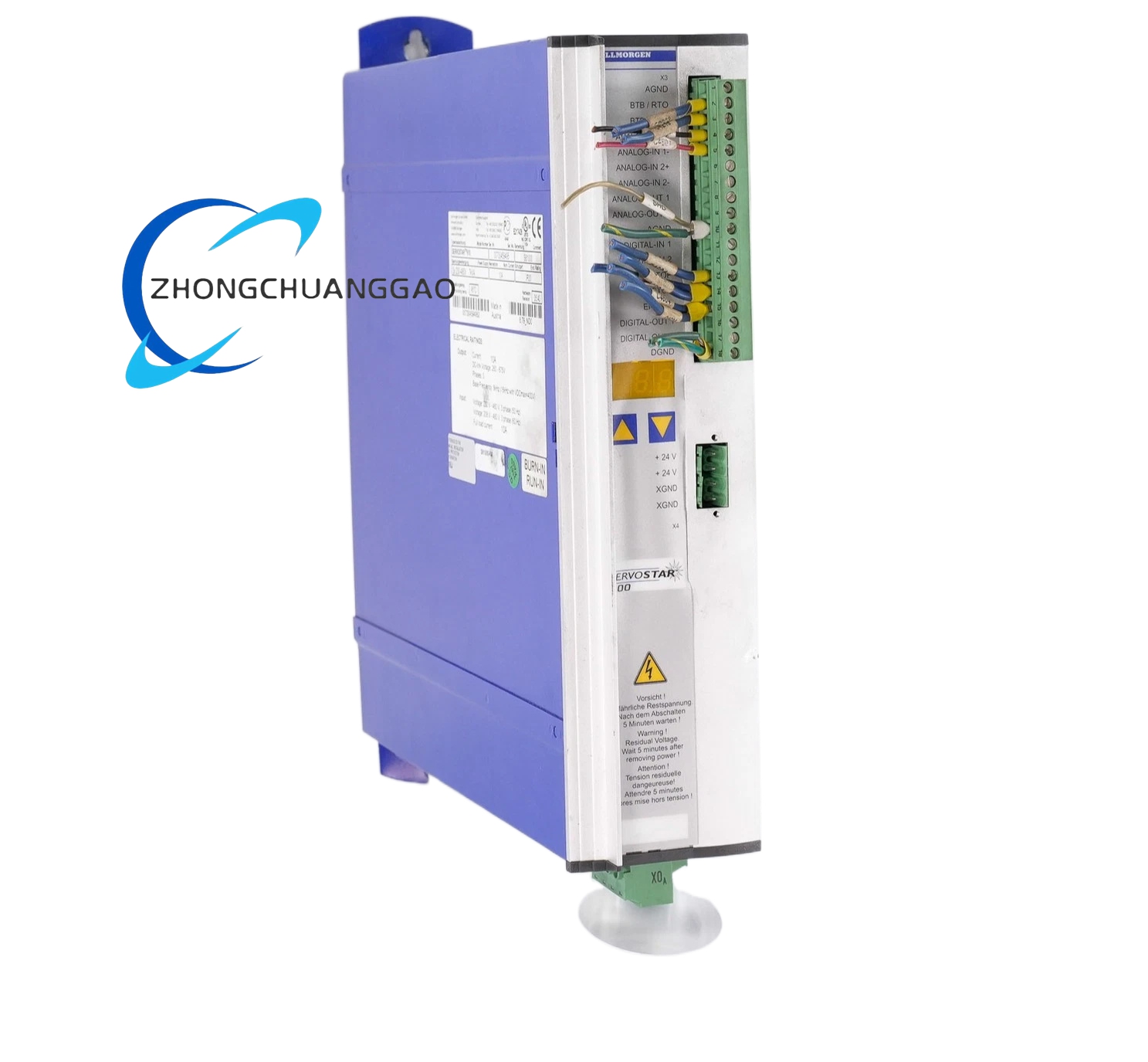

Technical & Performance Specifications

• Mains AC Input Voltage: Single/Three Phase 115–230 VAC (±10%), 50/60Hz
• Continuous Phase Output Current: 12 Arms RMS
• Peak Overload Output Current: 36 Arms RMS, sustainable for maximum 5 seconds (300% continuous overload capacity)
• Rated Output Power: 3.2 kW at 230V three-phase input
• Velocity Loop Maximum Bandwidth: 3000 Hz
• PWM Switching Frequency: 16 kHz fixed modulation
• Control Loop Refresh Rates: Current loop 31.25 μs, Velocity loop 62.5 μs, Position loop 125 μs
• Standard Communication Interface (N suffix): EtherCAT CoE real-time industrial Ethernet, RS232 diagnostic port
• Feedback Compatibility (B suffix): BiSS C/B absolute serial encoders, EnDat 2.2, SFD single-cable feedback, sine/cosine incremental encoders
• Analog I/O Channels: 2 × ±10VDC differential input, 2 × analog output
• Digital I/O Channels: 8 × 24VDC isolated sinking/sourcing input, 4 × isolated open-collector output
• Dynamic Braking Hardware: Large capacity integrated internal dynamic braking resistor for medium/high inertia load regeneration absorption
• Complete Protection Suite: Overcurrent, DC bus overvoltage/undervoltage, heatsink overtemperature, motor winding thermal fault, feedback signal loss, output phase short circuit, earth leakage interlock
• Cooling Architecture: Passive extruded aluminum chassis natural convection fanless cooling
• Protection Class: IP20 cabinet DIN rail mounting only
• Net Weight: 1.3 kg
• Outer Dimensions (W × H × D): 45 mm × 220 mm × 175 mm

Material Composition

1. Main Chassis & Heat Sink: Integrated extruded 6063-T6 aluminum alloy matte black hard anodized anti-corrosion frame
2. Main Control PCB: High-density FR4 flame-retardant lead-free circuit board with gold-plated signal contacts
3. Power Stage Module: Three-phase IGBT power bridge thermally bonded to aluminum radiator via high thermal conductivity silicone adhesive
4. Terminal Connectors: PA66 flame-retardant insulated copper spring-clamp quick-disconnect terminals
5. Dynamic Brake Resistor Assembly: High-power ceramic encapsulated wire-wound resistor
6. EMI Shield Baffles: Cold-rolled steel isolation barriers separating high-voltage power and low-voltage signal zones

Structural Features

1. Slim vertical unified chassis-heat sink integrated structure without separate radiator assembly
2. Front panel fully segmented terminal layout: mains power, motor power, EtherCAT bus, BiSS feedback, analog/digital I/O separated by metal EMI shielding barriers
3. Fanless passive cooling design with external integrated fin array for full heat dissipation
4. Onboard non-volatile flash memory storing full parameter libraries for all standard voltage Kollmorgen rotary and linear servo motors
5. Dedicated EtherCAT communication header with built-in signal isolation transformer for real-time motion synchronization
6. Spring-clamp terminal connectors enable fast wiring without torque calibration adjustment

Working Principle

Function Features

1. Preloaded full parameter database for AKM, Goldline B/M, DDL linear motors, one-click automatic motor identification tuning
2. 3000Hz maximum velocity loop bandwidth delivers ultra-fast acceleration/deceleration dynamic response for high-speed automation axes
3. Native EtherCAT CoE bus supports multi-axis electronic gearing, electronic cam with synchronization jitter below 100 ns
4. Built-in BiSS absolute encoder interface eliminates external signal conditioning hardware for high-resolution absolute positioning systems
5. Large integrated dynamic braking resistor eliminates external brake resistor accessory requirement for medium/high inertia mechanical loads
6. Adaptive digital anti-resonance filter suppresses mechanical axis oscillation and low-frequency audible vibration noise
7. RS232 multi-drop diagnostic port supports batch parameter backup, restore and firmware upgrade via Kollmorgen WorkBench software

Advantage Highlights

1. Fanless passive cooling architecture eliminates mechanical fan wear, dust clogging and fan failure maintenance points
2. Ultra-high 3000Hz velocity loop bandwidth outperforms mid-range SERVOSTAR series drives in dynamic positioning performance
3. Native EtherCAT + BiSS dual high-performance interface supports high-precision synchronized multi-axis motion control equipment
4. Slim extruded aluminum chassis reduces cabinet horizontal space occupation by 35% compared to equivalent power S300 series drives
5. Universal 115/230V single/three-phase mains input adapts to global factory power grids without external transformers
6. CE, UL/cUL, RoHS, REACH global compliance certification for industrial OEM mass production equipment integration

Applicable Industries

Installation Requirements

1. Mandatory vertical DIN rail cabinet mounting orientation; horizontal installation reduces heat dissipation efficiency by 38%
2. Minimum unobstructed airflow clearance: 60 mm vertical space above drive top edge, 40 mm lateral side clearance
3. DIN rail mounting metal backplane connected to facility star protective earth grid via ≥4 mm² shielded copper earth conductor
4. Motor power wiring specification: ≤15 m length use four-core 1.5 mm² fully shielded copper motor cable
5. BiSS absolute encoder feedback wiring: Double twisted-pair shielded 0.25 mm² cable, maximum transmission distance limited to 60 m
6. EtherCAT bus communication wiring: Standard CAT5e shielded Ethernet cable, install 120Ω terminating resistor at both physical bus endpoints
7. Cable separation rule: High-voltage power cables and low-level signal/EtherCAT cables must route inside independent cable ducts; unavoidable cross routing only via strict 90-degree perpendicular crossing

Operation & Maintenance Precautions

1. Cabinet ambient operating temperature range strictly limited to 0°C ~ +40°C; ambient temperature exceeding 40°C requires linear 15% continuous output current derate per 10°C temperature rise
2. Monthly maintenance step: Use clean compressed dry air to blow dust accumulated on chassis aluminum heat dissipation fins
3. Disconnect all mains AC supply and wait minimum 5 minutes for DC bus capacitors full discharge before disassembling any terminal wiring connectors
4. Prohibit connecting servo motors with rated power exceeding 3.2 kW to this drive unit to avoid permanent IGBT power module thermal damage
5. All BiSS feedback and EtherCAT cable shielding layers must implement double-end grounding to eliminate signal noise drift and position jitter
6. Storage environment must maintain non-condensing relative humidity ≤85%; prohibit long-term deployment in environments with conductive metal dust, oil mist or corrosive vapor
7. All firmware upgrade and parameter configuration operations must exclusively execute via official Kollmorgen WorkBench software
