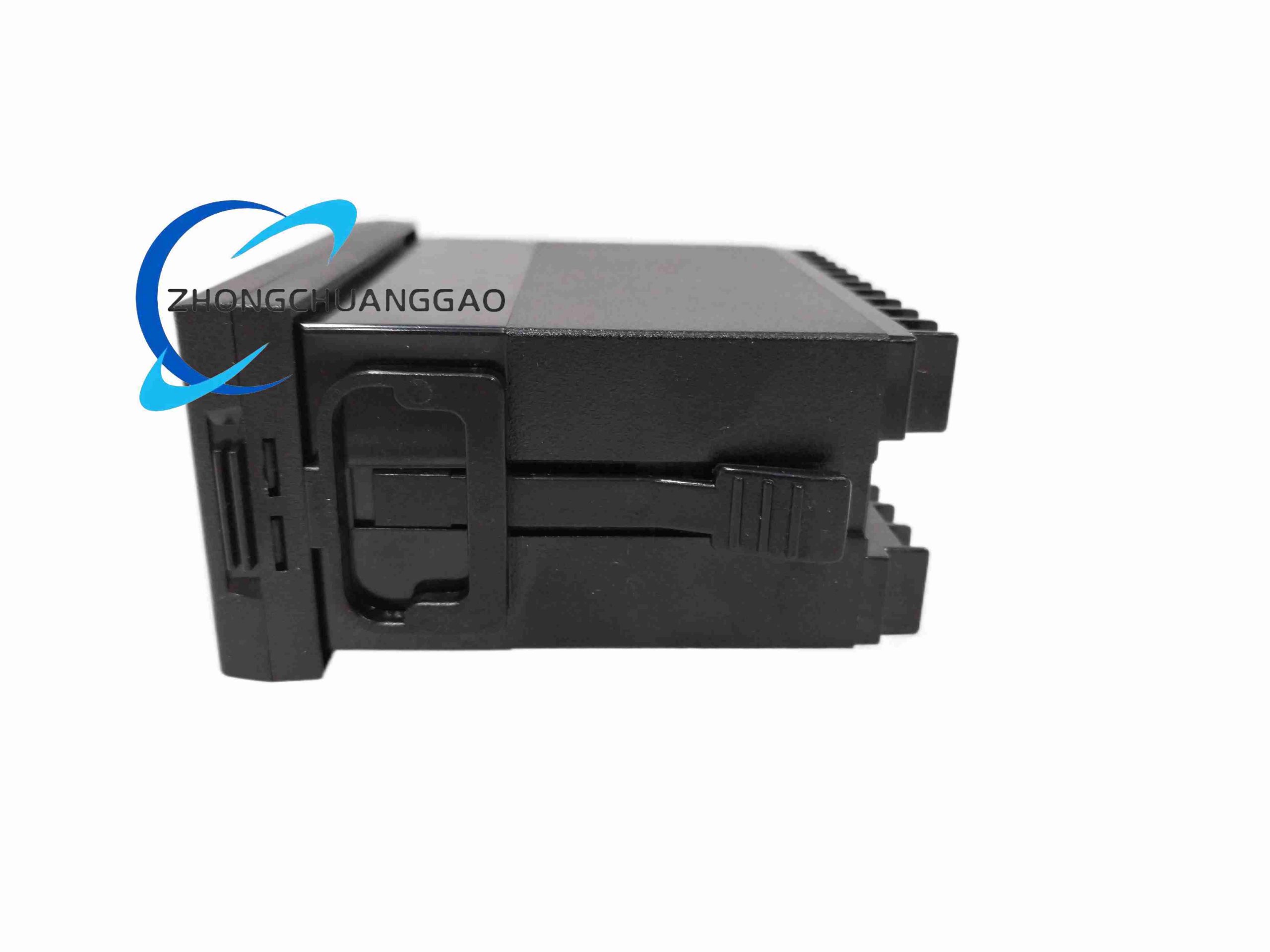

Honeywell DC1020CL
Product Name: Honeywell DC1020 1/8 DIN Digital Process Controller
Product Introduction
The Honeywell DC1020CL is a single-loop digital controller used for temperature and process control. It accepts universal input signals and provides control, alarm, and optional communication functions for industrial processes. The “DC1020CL” prefix identifies the controller family, while the complete order code defines power supply, inputs, outputs, alarms, and options.
Detailed content
Technical Specifications
Brand: Honeywell
Model Prefix: DC1020CL
Product Type: Digital process controller
Size: 1/8 DIN
Faceplate Dimensions: 48 × 96 mm
Panel Cutout: 45.5 × 91 mm
Input Signals: Thermocouple, RTD, 4–20 mA, 0–20 mA, 0–5 V, 0–10 V, 1–5 V, and 2–10 V, depending on order code
Control Algorithms: PID, ON/OFF, heat/cool with two PID sets, motor position, phase-angle, and zero-crossover control, depending on configuration
Outputs: Configurable analog, relay, SSR, or control outputs
Alarms: Up to three alarms and 17 alarm modes, depending on configuration
Display: Dual four-digit LED displays and bar graph
Sampling Time: 250 ms input / 500 ms remote setpoint, per one available specification
Indication Accuracy: ±0.2% of full scale, per one available specification
Power Supply: 85–265 VAC, 50/60 Hz, for the cited order-code example
Power Consumption: 8 VA at 110 VAC and 12 VA at 220 VAC, per the cited example
Front-Panel Protection: IP65
Ambient Temperature: -20–65 °C, per one available specification
Communication: RS232/RS485 and Modbus RTU/ASCII, depending on configuration
Functional Features
Universal Inputs: Accepts thermocouple, RTD, current, and voltage signals.
Auto-Tuning: Automatically adjusts PID parameters to process dynamics.
Program Control: Supports setpoint programs made up of multiple segments.
Heat/Cool Control: Uses separate PID parameters for heating and cooling.
Motor Position Control: Controls motor-driven valves without slide-wire feedback, where configured.
Alarm Management: Supports high, low, deviation, rate-of-change, sensor-fault, and other alarm functions.
Dual Display: Shows process value and setpoint simultaneously.
Application Scenarios
Plastics processing: Extruder barrel and mold temperature control
Ovens and furnaces: Industrial heating and thermal processes
Packaging equipment: Heat sealing and temperature control
Environmental chambers: Controlled heating and cooling
HVAC and boilers: Temperature and valve control
Material Composition
Front Bezel: Industrial-grade plastic and sealing components
Internal Circuitry: Printed circuit board with measurement, control, and output electronics
Output Stage: Configured with relay, SSR, analog, or control output components
Enclosure Sealing: Designed to achieve IP65 protection on the front face
Structural Characteristics
Mounting Format: 1/8 DIN panel-mount controller
Front Interface: Dual displays, status LEDs or bar graph, and operator keys
Rear Terminals: Connections for input, output, alarm, communication, and power
Order-Code Dependent: Output and communication hardware vary with the full part number.
Working Principle
The controller measures the process variable using the selected sensor input and compares it with the setpoint. The control algorithm calculates the required response and adjusts the output through relay, SSR, analog, or other configured output types. Auto-tuning and alarm logic modify or supervise control behavior according to the application configuration.
Installation Requirements
Panel Cutout: Prepare the correct 1/8 DIN opening.
Power Supply: Verify the voltage and frequency required by the complete order code.
Sensor Type: Configure the input type and range to match the connected sensor.
Wiring Space: Allow sufficient rear clearance for terminals and cables.
Cable Separation: Route high-current output wiring away from low-level sensor wiring.
Communication Bus: Terminate RS485 networks correctly when used.
Usage Precautions
Input Polarity: Connect thermocouple and three-wire RTD sensors with correct polarity and matched lead resistance.
Output Limits: Do not exceed the rated current or voltage of the selected output type.
Auto-Tuning Conditions: Perform tuning after the process is stable and representative of normal operation.
Front-Face Protection: IP65 applies to the front face when correctly installed; provide additional protection for the rear terminals.
Full Part Number: Use the complete order code to identify power supply, input, output, and communication options.
