HONEYWELL 620-0025

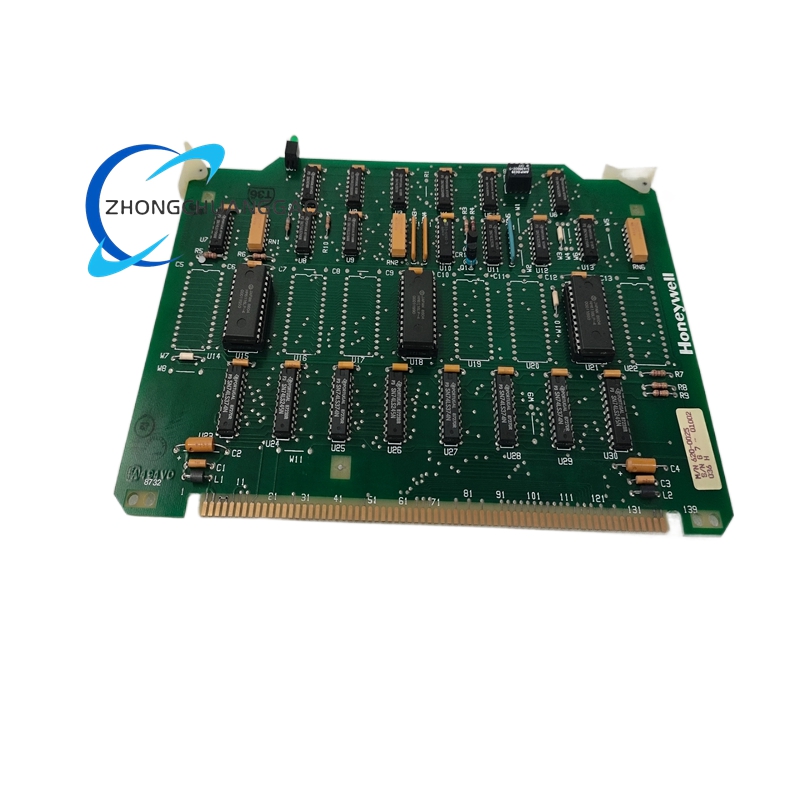

Product Name: Honeywell 620-0025 2K Memory Module
Product Introduction: This module provides program and data storage for Honeywell IPC 620 programmable controller platforms. It retains user control programs, configuration data and process parameters during power cycles.
Technical Specifications: Memory capacity is 2K words, equal to 2048 words. System compatibility is Honeywell IPC 620, including IPC 620-15, IPC 620-20, IPC 620-25 and IPC 620-35 platforms. Operating temperature is 0°C to 60°C. Relative humidity is 5% to 95% non-condensing.
Detailed content
Functional Features: Non-volatile storage preserves control programs. Self-test PASS LED confirms successful initialization. Plug-in card architecture enables fast replacement. Error checking supports memory integrity monitoring.
Application Scenarios: Power generation, petrochemical processing, refinery automation, mining systems, discrete manufacturing and legacy IPC 620 programmable controller retrofits.
Performance Parameters: Compatible IPC 620 systems support memory expansion from 2K to 32K using multiple memory modules. Battery backup in the power supply module supports program retention. Scan-related memory performance depends on processor model and program mix.
Material Composition: Industrial printed circuit board, memory integrated circuits, connector contacts, status LED and card retainer components.
Structural Characteristics: Board-type module with backplane edge connector, address configuration support and front-panel diagnostic indicator.
Working Principle: The module stores ladder logic and process data in semiconductor memory. During power-up, the processor reads stored words to execute control programs. Battery-backed or non-volatile memory preserves content across power interruptions.
Installation Requirements: Power off the IPC 620 rack before insertion or removal. Align the module with the designated memory slot. For 620-25 use slot C; for 620-35 use slot E; additional modules use option slots according to system manual. Confirm starting address for contiguous memory mapping.
Usage Precautions: Handle only by board edges with ESD protection. Verify battery condition in the power supply module. Back up program data before replacement. Do not install in non-IPC 620 racks.
