Part Number:DS200TBQCG1AAA

Manufacturer:General Electric

Series:Mark V DS200

Number of TBQC Connections:5

Functional Acronym:TBQC

Operating Voltage:N/A

Output Frequency:N/A

Weight:N/A

Certification:Industry Standard

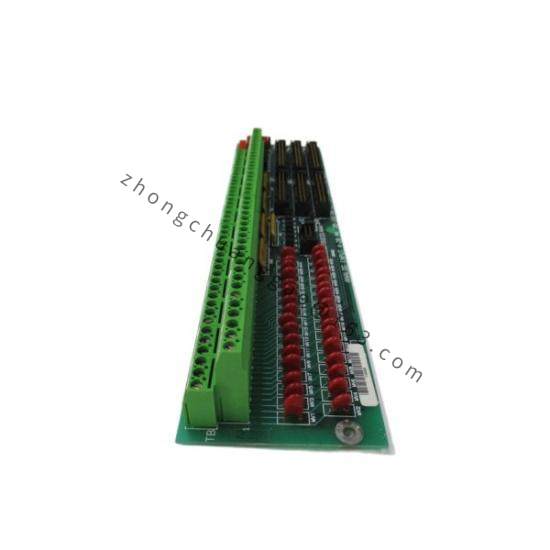

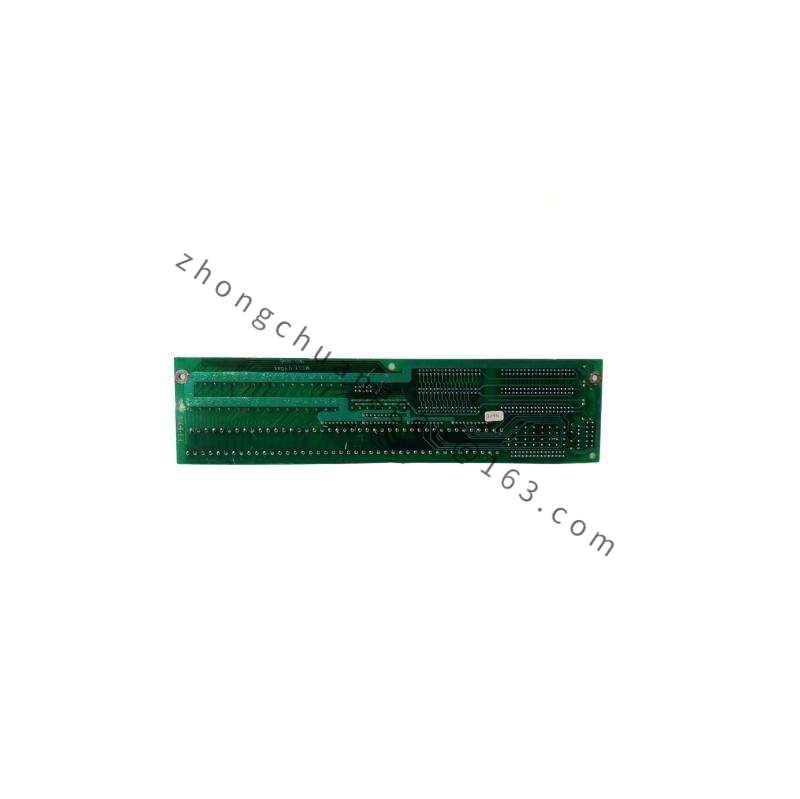

    The DS200TBQCG1AAA Analog Input I/O Termination Module is meticulously engineered to meet the stringent demands of modern industrial automation systems. Crafted by General Electric, it is an integral part of the Mark V DS200 Series, ensuring reliable performance in turbine control applications. This module features an advanced analog input system that supports milliamp current signals, making it ideal for precise measurement and control in demanding environments. The module is assembled using a selection of voltage-limiting hardware components including rectifiers, capacitors, and diodes, ensuring robust operation under varying conditions. A thick, standard PCB surface coating provides additional protection against environmental factors. With five distinct connections—JBR, JFR, TEST, JBS/T, and JFS/T—the DS200TBQCG1AAA offers versatile connectivity options for seamless integration into existing systems. Its precise analog signal processing capabilities make it a crucial component for any application requiring accurate and reliable data acquisition and control.
