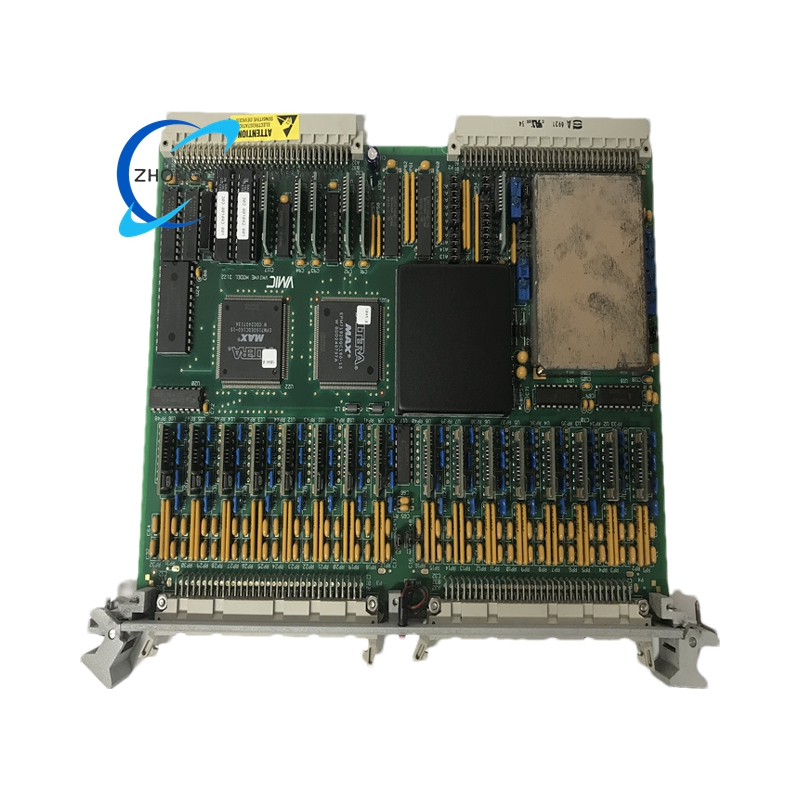

GE VMIVME-7751

GE VMIVME-7751 is a VME single-board computer based on the Intel® Pentium® III processor, widely used in industrial control, aerospace, defense, and scientific research fields. It offers high performance, reliability, and flexibility with various I/O interfaces and expansion slots.

WhatApp
WeChat

Detailed content

Technical Specifications

  • Processor: 1.26 GHz Pentium III, featuring 256 KB advanced transfer cache (512 KB at 1.26 GHz).
  • Memory: Up to 512 MB PC-133 SDRAM using a single SODIMM.
  • Graphics Controller: Integrated AGP SVGA controller with 4 MB display cache.
  • Bus Interface: Supports VME bus standard with a data width of 64 bits and a transmission rate up to 80 MB/s.
  • Network Interface: Dual Ethernet controllers supporting 10BaseT and 100BaseTX interfaces.
  • Storage: Optional PCI dual-channel Ultra160 SCSI.
  • Expansion: Up to three PMC expansion sites (two support rear I/O).
  • Power Management: Passive heatsink.
  • Real-Time Processing: Supports VME64 mode, including A32/A24/D32/D16/D08(EO)/MBLT64/BLT32.
  • Operating Systems: Compatible with Windows® XP, Windows 2000, VxWorks®, Solaris x86, QNX®, LynxOS®, and Linux®.
  • Remote Boot: Supports remote LAN boot via Lanworks Technologies, Inc. BootWare® BIOS.

Features

  • High Performance: The Pentium III processor provides powerful computational capabilities and high stability.
  • Multi-functionality: Supports multiple interfaces and expansion cards for customization and expansion.
  • Reliability: High-quality materials and components ensure high stability and reliability.
  • Easy Maintenance: Designed for easy maintenance and replacement.
  • Real-Time Processing: Supports real-time data transmission and processing.
  • Remote Boot: Enables remote LAN boot with support for various network protocols.
  • Physical Characteristics: 6U VME card size, maximum power consumption of 15 W.
  • Timers and Counters: Two 16-bit and two 32-bit programmable timers.
  • Non-volatile Storage: 32 KB non-volatile SRAM.
  • Watchdog Timer: Software-selectable watchdog timer with reset function.
  • Serial and Parallel Interfaces: Two high-performance 16550 compatible serial ports and an enhanced parallel port supporting ECP/EPP mode.
  • Front Panel Interfaces: PS/2 keyboard and mouse ports.
  • Real-Time Clock: Built-in real-time clock and miniature speaker.
  • USB Interfaces: Dual front-panel single serial bus (USB) connections.

Applications

  • Industrial Control: Suitable for high-performance and high-stability industrial automation systems.
  • Aerospace: Used in aerospace real-time control systems.
  • Defense: Applied in defense high-reliability systems.
  • Scientific Research: Used in scientific research for high-performance computing and data processing.
  • Real-Time Systems: Ideal for real-time data transmission and processing, such as semi-physical simulation and high-speed data acquisition.

Additional Information

  • Dimensions: 6U, 160mm x 233mm (length x width).
  • Weight: Approximately 1.4 kg.
  • Power Requirements: +5VDC 7A, +3.3VDC 1A, +12VDC 0.5A.
  • Application Fields: Industrial automation, data acquisition, process control, and other fields requiring high reliability and stability .
