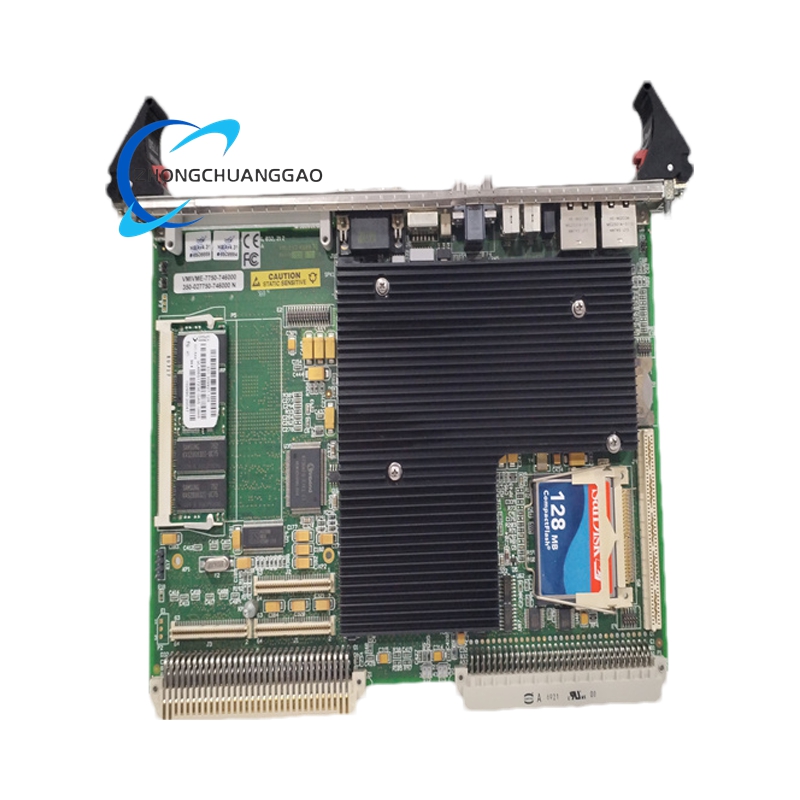

Technical Specifications

• Processor: Intel Ultra-Low Voltage (ULV) Celeron (400 MHz/650 MHz) with 256 KB L2 cache.
• Memory: Up to 512 MB PC100 SDRAM (via 144-pin SODIMM) and 128 MB CompactFlash (optional, configurable as boot device).
• Interfaces:
  • VMEbus: Compliant with Rev. C.1, supports A32/A24/D32/D16/MBLT64/BLT32 modes.
  • Ethernet: Dual 10/100BaseTX controllers.
  • Serial: Two 16550-compatible ports (115 kbaud).
  • USB: Dual front-panel USB 2.0 hubs.
  • Expansion: One PMC slot (IEEE-1386.1 standard).
• Power: Wide voltage input (24V DC) with passive cooling.
• Environmental: Operating temperature: -40°C to +85°C; EMI/RFI resistant.

Key Features

• Real-Time Performance: Transparent PCI-to-VME bridge enables deterministic data transfer, ideal for multi-CPU systems.
• Industrial Durability: Robust components for harsh environments, including shock/vibration resistance.
• Configuration Flexibility:
  • Software-selectable watchdog timer with reset functionality.
  • Programmable timers (16-bit and 32-bit).
  • Remote Ethernet boot via PXE/BOOTP/DHCP.
• Scalability: PMC slot supports customization with specialized modules (e.g., FPGA, ADC).
• Connectivity: Dual Gigabit Ethernet for low-latency network integration.

Applications

1. Industrial Automation:
   • Real-time process monitoring in manufacturing/chemical plants.
   • High-speed data acquisition for steel/aluminum rolling mills.
   • Distributed control systems (DCS) for factory automation.
2. Energy Sector:
   • Power grid management and renewable energy systems.
   • Nuclear plant control and SCADA integration.
3. Aerospace & Defense:
   • Flight simulation and hardware-in-the-loop (HIL) testing.
   • Avionics data synchronization and radar processing.
4. Transportation:
   • Railway signaling and traffic control systems.
   • Shipboard propulsion/navigation control.
5. Research & Development:
   • Multi-system parallel testing (e.g., automotive crash simulations).
   • Real-time sensor networks for scientific experiments.

Additional Details

• Form Factor: Eurocard single-slot module compatible with VMEbus racks.
• Software Support: Windows, VxWorks, Linux.
• Certifications: RoHS compliant (specific certifications vary by region).
