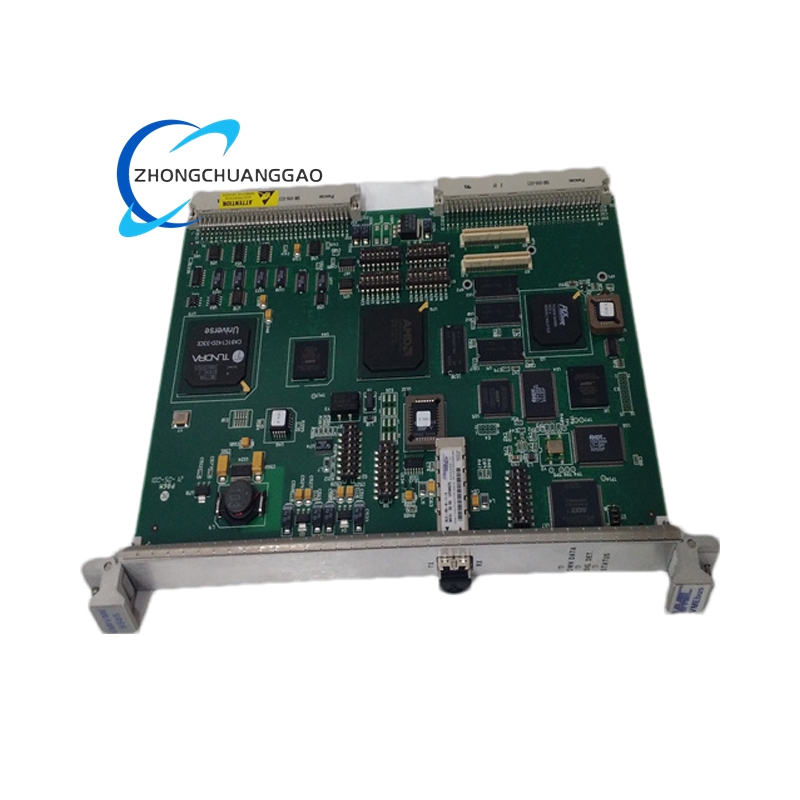

GE VME7807RC

  1. Core Architecture:
    • Processor: Intel Pentium M (1.1 GHz, 1.4 GHz, or 1.8 GHz variants) with up to 2 MB L2 cache .
    • Memory: 1.5 GB DDR SDRAM (expandable), 32 KB battery-backed SRAM for critical data retention .
    • Storage: Up to 2 GB bootable CompactFlash; supports SATA drives .
    • Bus Standard: VME64x/VME320 with A16/A24/A32/D32 addressing and BLT32/BLT64 block transfers .
WhatApp
WeChat

Detailed content

  1. Interfaces & Expansion:
    • Network: Dual Gigabit Ethernet (RJ-45 + SFP slots); 10/100/1000 Mbps support .
    • I/O Ports: 4× USB 2.0, 4× RS-232/RS-485 serial ports, 16× GPIO pins .
    • Video: Integrated SVGA + DVI-I (1,600 × 1,200 resolution) .
    • PMC Expansion: One PCI-X 66 MHz slot for custom I/O modules .
  2. Environmental Resilience:
    • Operating Temperature:
      • Standard: 0°C to +60°C .
      • Industrial: -40°C to +85°C (RC variants) .
    • Cooling: Passive (fanless); MTBF 267,455 hours .
    • Humidity: 5–95% non-condensing .
  3. Physical & Electrical:
    • Dimensions: 6U VME form factor (233 × 160 mm) .
    • Power: +5VDC (±5%), typical 6.08A; max 100W .
    • Compliance: RoHS, VCCI Class A, CISPR 22 EMC .

Functional Features

  1. Real-Time Determinism:
    • Hardware-level VME bridge for <1 µs latency in multi-processor systems; DMA transfers bypass CPU overhead .
    • Watchdog timers and ECC memory for fault tolerance .
  2. High-Speed Data Handling:
    • Dual GbE ports enable 2.12 Gbaud throughput for radar/image processing .
    • Endian conversion hardware for big/little-endian interoperability .
  3. Embedded Flexibility:
    • OS Support: Windows XP/2000, VxWorks, QNX, Linux RT .
    • Remote Ethernet boot via ARGON Boot ROM .
    • 32 KB non-volatile RAM for critical configuration retention .
  4. Legacy Integration:
    • Compatible with GE’s VMIC ecosystem (e.g., VMIACC-0586 transition modules) .

Application Scenarios

Domain Use Cases
Industrial Automation Real-time PLC control in aluminum mills, power plants, and robotic assembly lines .
Defense & Aerospace Radar signal processing, avionics, military simulators, and command systems .
Critical Infrastructure Nuclear plant monitoring, rail signaling, and grid management .
Scientific Research Data acquisition in engine test stands, medical imaging, and high-energy physics .

Model Variants & Ordering

Suffix Key Specifications
-410000 Standard temperature range (0°C to +60°C)
-RC* Industrial range (-40°C to +85°C)
-424001 Enhanced I/O or memory configurations
  • Software Tools: GE Proficy® APIs for LabVIEW RT/C++ integration .
  • Warranty: 1-year manufacturer coverage .

Technical Differentiation

Feature VME7807RC Typical Industrial SBCs
Bus Throughput 80 MB/s (VME320) ≤40 MB/s (PCIe Gen2)
Network Redundancy Dual hot-swappable GbE ports Single Ethernet
Environmental Range -40°C to +85°C 0°C to 70°C
Legacy Support VME64x + PCI-X expansion Limited backward compatibility
