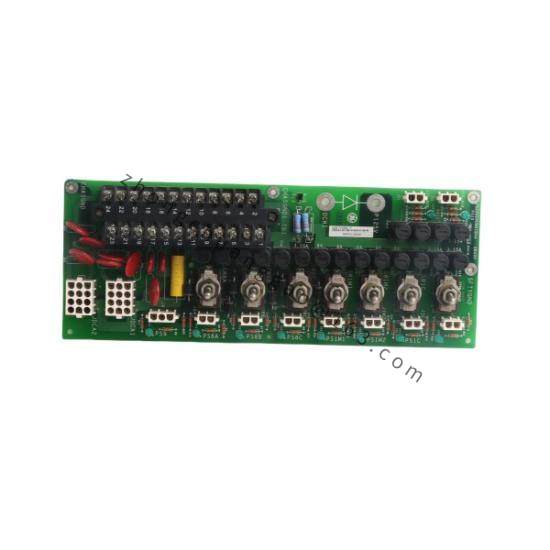

Model:IS200EPDMG1BAA

Manufacturer:General Electric

Series:Mark VI

Type:Circuit Board

Dimensions (W x L):4in x 6.5in

Faceplate Dimensions (W x H):2.25in x 4in

Weight Before Packaging:<2lbs

Ethernet Capabilities:Yes

Control Type Options:Simplex or TMR (Triple Modular Redundant)

Terminal Blocks:2

Terminal Block Locations:Bottom corner

Power Supply Capacity:N/A (Integrated)

Memory Device:Serial 1024-bit

Bus Host Processor:Parallel-style

Plug Connectors:J2 and J1

Transformer Shape:Square

Transformer Position:Centered

Electronic Component Adjacent to Transformer:DS1

Full Part Number:IS200EPDMG1BAA

    The GE-EPDMG1BAA Mark VI Circuit Board is a pivotal piece in the GE-FANUC portfolio, designed specifically for integration into the advanced Mark VI gas/steam turbine control systems. This cutting-edge board is distinguished by its robust Ethernet capabilities, enabling seamless data transmission and enhanced system connectivity.

    Featuring two terminal blocks located at the bottom corner, the board offers a total of 48 terminal spaces for versatile connection options, ensuring compatibility with a wide range of turbine systems. Its design is meticulously crafted from high-quality engineered plastic, guaranteeing durability and reliability in demanding industrial environments.

    Depending on the specific requirements of the associated turbine system, the GE-EPDMG1BAA can be configured for simplex or triple modular redundant (TMR) control, providing unparalleled levels of safety and redundancy. This feature ensures continuous operation even in the event of component failure, maximizing operational efficiency and minimizing downtime.

    The inclusion of an industry-standard certification underscores the commitment to quality and safety. This board is meticulously designed and manufactured to meet stringent industry standards, ensuring compatibility and integration with existing systems while offering enhanced functionality and performance.

    For detailed technical specifications and installation guidelines, refer to the original manuals and product guides provided by GE-FANUC. Our team is also available to provide additional support and guidance, ensuring a seamless integration process and optimal system performance.
