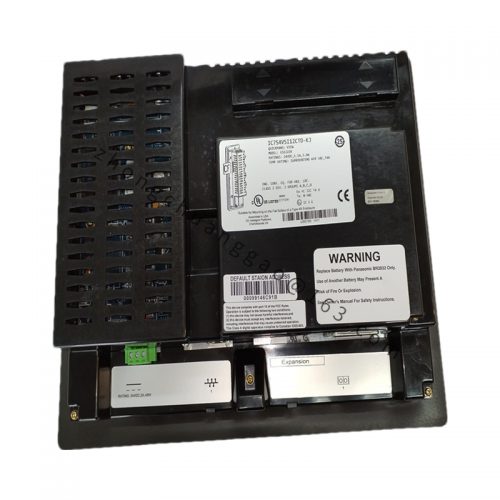

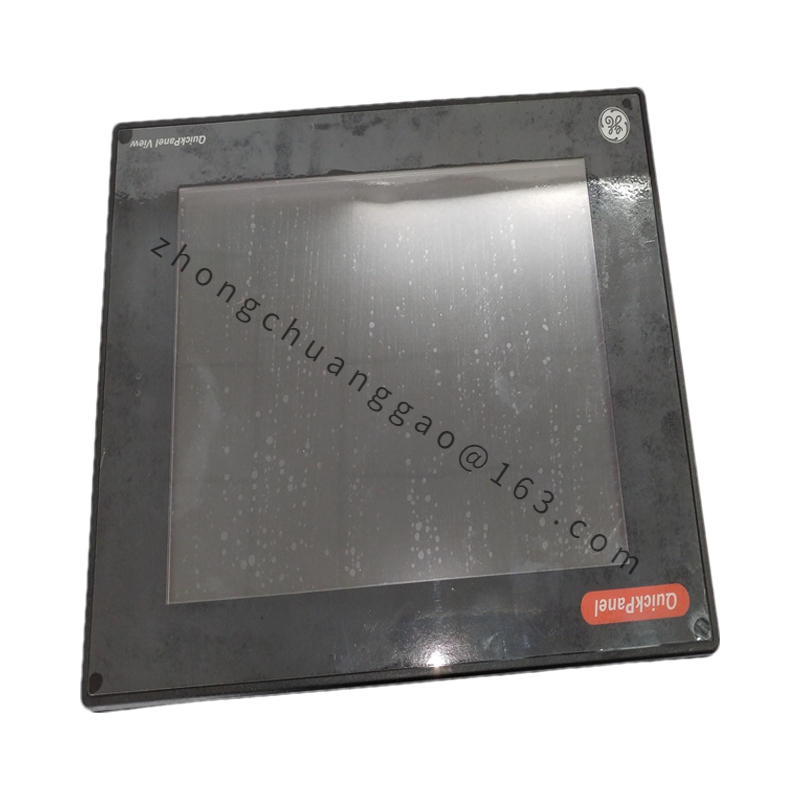

GE IC754VSF12CTD
Application Scenarios:
- Industrial Automation: Widely used in industrial automation systems for monitoring and controlling production lines, machinery, and processes.
- Machine Control: Ideal for controlling and monitoring automated machines, robotic systems, and other industrial equipment.
- Process Control: Suitable for process control applications in various industries, such as manufacturing, oil and gas, and power generation.
- HMI (Human-Machine Interface): Serves as an essential HMI for operators to monitor and interact with industrial systems in real-time.
- Remote Monitoring and Control: Can be integrated into remote monitoring and control systems, allowing for centralized monitoring and management of distributed industrial assets.
Detailed content
Technical Specifications:
| Specification | Details |
|---|---|
| Manufacturer | GE Fanuc Intelligent Platforms (now part of GE Digital) |
| Model | IC754VSF12CTD |
| Display Type | LCD Touchscreen |
| Display Size | 12 inches |
| Resolution | 1024 x 768 pixels (some sources mention 800 x 600) |
| Display Colors | 16-bit per pixel, 65,536 colors |
| Processor | XScale Processor (may vary) with 1GHz speed |
| Memory | 64 MB Flash, 512 MB RAM (as per updated info) |
| Storage | 4GB Storage Capacity |
| Communication Interfaces | Ethernet, RS232, RS485, USB, CF Port, Expansion Bus |
| Operating System | Windows CE 6.0 (as per updated info) |
| Input Voltage | 24VDC |
| Power Consumption | 48 Watts (approximate) |
| Weight | Approximately 5.2 lbs (2.36 kg) or 3.5 kg (as per updated info) |
| Dimensions | 363mm x 290mm x 60mm (as per updated info) |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Protection Rating | IP65 |
Functional Characteristics:
- High-Resolution Display: The 12-inch LCD touchscreen with a resolution of 1024 x 768 (or 800 x 600, depending on sources) provides clear and crisp visuals for monitoring and control.
- Intuitive Touchscreen Interface: The touchscreen allows for direct interaction with the device, simplifying operations and enhancing user experience.
- Powerful Processor: Equipped with an XScale processor (with varying speeds, including 1GHz), it offers high processing power for complex industrial applications.
- Expandable Memory: With memory expansion slots, the device can be upgraded to meet the demands of more sophisticated applications.
- Versatile Communication: Supports a range of communication interfaces, including Ethernet, RS232, RS485, and USB, enabling seamless integration with various systems and devices.
- Rugged Design: Designed for industrial environments, it features an IP65 protection rating, ensuring resistance to dust and water ingress.
