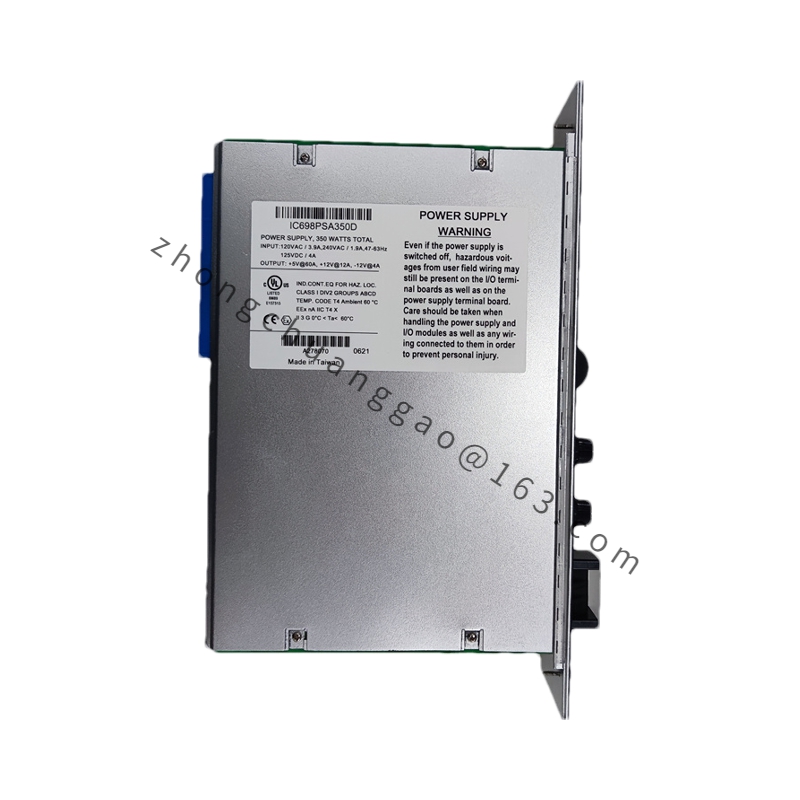

Technical Specifications

• Manufacturer: Formerly GE Intelligent Platforms (now Emerson Automation)
• Platform: PACSystem RX7i
• Input Voltage Range:
  • AC: 85 to 264 VAC, 47 to 63 Hz
  • DC: 100 to 150 VDC
• Maximum Input Power:
  • Typical: 440 Watts
  • Maximum: 500 Watts
• Output Power:
  • Total Maximum Output Power: 350 Watts
  • Individual Outputs:
    • +5 VDC: 0-60 Amps
    • +12 VDC: 0-12 Amps
    • -12 VDC: 0-4 Amps
• Operating Voltage:
  • Rated Voltage: 120/240 VAC and 125 VDC
• Operating Frequency: 47 to 63 Hz
• Operating Temperature Range: 0 to 60°C
• Power Factor: 0.99 (effective only at 90 to 260 VAC)
• Isolation Rating: 1500 VDC between input and all outputs, for 1 minute
• Surge Ratings:
  • 30 Amps (115 VAC, cold start)
  • 60 Amps (230 VAC, 100 ms, cold start)

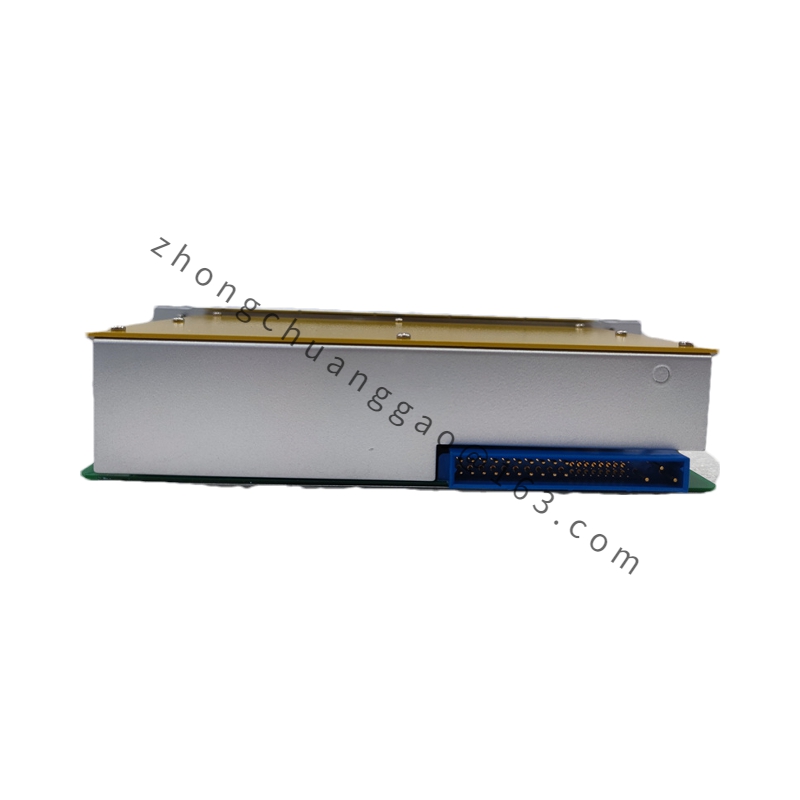

• Physical Characteristics:
  • Single-slot module designed to fit into the 0th slot of the RX7i rack
  • Includes various LED status indicators for monitoring the module’s status

Functional Characteristics

• Stable Power Output: Provides stable +5 VDC, +12 VDC, and -12 VDC outputs for reliable power support in industrial automation systems.
• Logic Level Signaling: Sends logic level sequences to other modules on the backplane, enabling inter-module communication and collaboration.
• Protection Circuits:
  • Includes over-current, over-voltage, and electronic short-circuit protection.
  • Additional features such as over-temperature and airflow sensors to ensure safe operation.
• Cooling: Supports forced air cooling through a 70 CFM fan located beneath the system chassis, with airflow sensors to detect fan failures or halted airflow.
• Modularity: Designed with a modular structure that allows easy installation and maintenance within the RX7i system.

Application Scenarios

The GE IC698PSA350 power supply module finds applications across various industries due to its reliability and versatility:

• Industrial Automation: Supports automation systems in factories and manufacturing plants, providing power and communication infrastructure for control systems, sensors, and actuators.
• Manufacturing: Enhances production efficiency and reduces downtime by ensuring stable power supply to critical machinery and equipment.
• Energy: Utilized in power generation, transmission, and distribution systems, contributing to the reliability of energy infrastructure.
• Chemical and Process Industries: Provides the necessary power and signaling for monitoring and controlling chemical processes, ensuring safety and compliance with industry standards.
• Water and Wastewater Treatment: Supports automation and control systems in water treatment facilities, ensuring the safe and efficient treatment of water resources.
