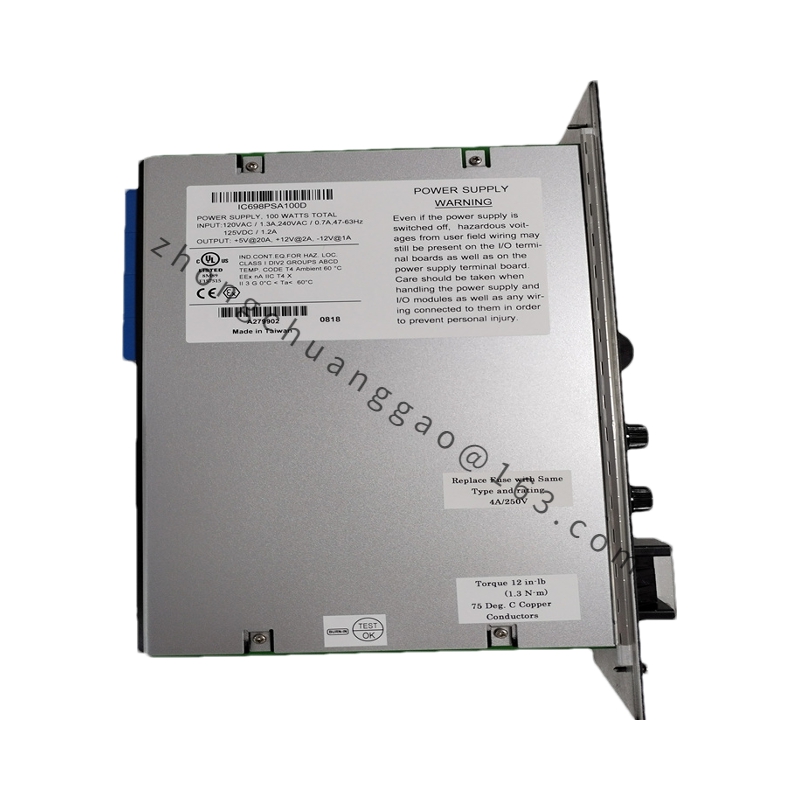

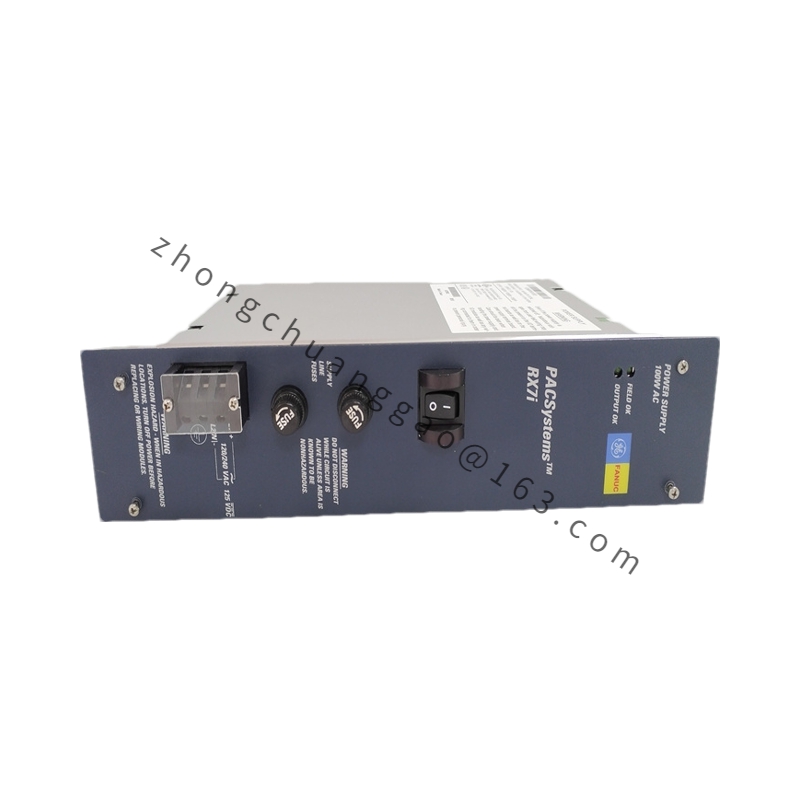

GE IC698PSA100

The GE IC698PSA100 is a versatile module offered by General Electric (GE) that can serve as either a CPU processor module or a power supply module, depending on the context and application.

WhatApp
WeChat

Detailed content

Technical Specifications

As a CPU Processor Module:

  • Manufacturer: General Electric (GE)
  • Platform: PACSystem RX7i or similar GE PLC systems
  • Processor Performance: Equipped with a high-performance processor capable of executing complex control logic and algorithms.
  • Memory: Adequate memory for storing control programs, data, and parameters.
  • Communication Interfaces: May include Ethernet, serial, and USB interfaces for data exchange and communication with other devices.
  • Software Support: Compatible with GE’s programming software, such as Proficy Machine Edition, for program development, debugging, and uploading.

As a Power Supply Module:

  • Power Output: Typically provides multiple output channels with different voltage and current ratings.
  • Input Voltage Range: Supports a wide range of input voltages, such as 85 to 264 VAC or 100 to 150 VDC.
  • Output Voltage: Offers outputs such as 4.875 to 5.25 VDC, 11.64 to 12.6 VDC, and -12.60 to -11.64 VDC.
  • Power Protection: Includes features like overcurrent, overvoltage, and short-circuit protection.
  • Isolation Voltage: High isolation voltage, such as 1500 VDC, for enhanced safety.

Functional Characteristics

  • High Reliability and Stability: Designed for industrial environments, ensuring long-term reliable operation.
  • Modular Design: Allows for easy expansion and customization based on application needs.
  • Programmable: In some configurations, allows users to configure power output parameters to suit specific requirements.
  • Communication Capabilities: Enables communication with other modules and systems for monitoring and control.

Application Scenarios

Industrial Automation and Control:

  • Manufacturing: Used to provide stable power or execute control logic in production lines, machines, and automation equipment.
  • Process Control: In industries like chemicals, oil and gas, and food processing, it can power control systems, sensors, and actuators.
  • Power Industry: Supports power distribution, generation, and substation equipment.
  • Building Automation: Powers lighting, HVAC, and security systems in buildings.
  • Water Treatment: Provides power to treatment equipment and monitoring systems in water and wastewater treatment plants.
  • Transportation: Used in traffic control systems, powering traffic signals, railway signals, and tunnel safety equipment.

Specialized Applications:

  • Infrared Measurement: In some configurations, the IC698PSA100 can be used for infrared measurement applications, such as evaluating the heat-absorbing performance of solar devices or measuring the radiation intensity of infrared sources.
