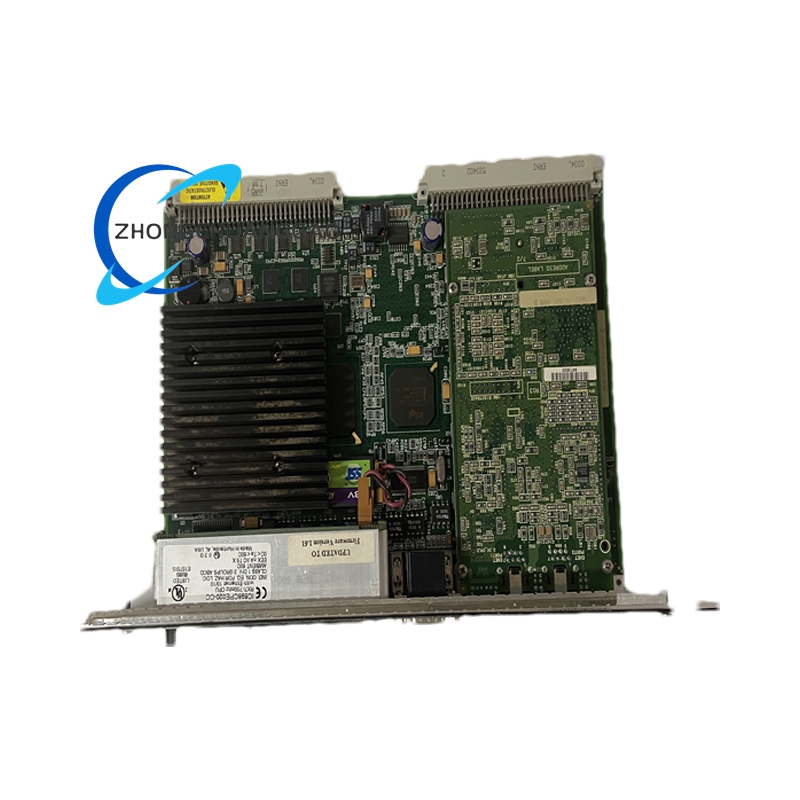

GE IC698CPE020 Central Processing Unit

Technical Specifications

  1. Processor & Performance:
    • CPU Architecture: High-performance industrial-grade processor (exact chipset unspecified; Intel Atom/PowerPC equivalent inferred) .
    • Memory: ≥10 MB non-volatile flash storage; ≥10 MB user memory (battery-less retention via capacitor backup) .
    • Execution Speed: Sub-millisecond scan times for complex logic (comparable to IC698CPE030’s 0.072 ms/kBoolean instructions) .
    • I/O Capacity: Supports ≥32K discrete I/O points and ≥32K analog words .
WhatApp
WeChat

Detailed content

  1. Communication Interfaces:
    • Ethernet: Dual RJ-45 ports (10/100 Mbps), supporting SRTP, Modbus TCP, and OPC UA .
    • Serial Ports: RS-232/485 with Modbus RTU/SNP protocols .
    • Backplane: PCI-based expansion for RX7i chassis compatibility .
  2. Environmental & Physical:
    • Operating Temperature: -20°C to +60°C (industrial standard) .
    • Protection Rating: IP54 (dust/moisture-resistant) .
    • Dimensions: Standard RX7i module size (218 × 228 × 250 mm inferred) .
  3. Power Requirements:
    • Input Voltage: 24 V DC ±10% .
    • Redundancy: Supports hot-swap and dual-power supply configurations .

Functional Features

  1. High Reliability & Industrial Robustness:
    • Fault Tolerance: Redundant CPU operation and automatic failover .
    • Energy Backup: Capacitor-backed memory retention (eliminates battery dependency) .
    • Conformal Coating: Protects against humidity/chemical exposure in harsh environments .
  2. Advanced Control Capabilities:
    • Programming Languages: IEC 61131-3 compliant (Ladder Logic, Structured Text, Function Block Diagram) .
    • Real-Time Control: Deterministic execution for motion control and PID loops .
  3. Security & Diagnostics:
    • Hardware Security: Password protection and encrypted firmware .
    • Diagnostic LEDs: Front-panel indicators for power, network, and fault status .
    • Event Logging: Stores ≥10,000 time-stamped system events .
  4. Scalability:
    • Supports up to 8 local expansion racks and 32+ I/O modules (e.g., IC694 series) .

Application Scenarios

  1. Discrete Manufacturing:
    • Automotive assembly lines: Synchronizes robotic welders (e.g., KUKA systems) and conveyor systems via Profinet/Ethernet IP .
    • Quality control: Integrates with vision systems for defect detection .
  2. Process Industries:
    • Oil & gas: Manages safety interlocks for refinery valve networks and pipeline pressure control .
    • Chemical plants: Monitors reactor temperatures with ±0.1% analog input accuracy .
  3. Energy Infrastructure:
    • Power plants: Interfaces with GE Mark VIe for turbine governor control and grid stabilization .
    • Water treatment: Controls pump stations and filtration processes via Modbus RTU .
  4. Building Management:
    • Smart HVAC/lighting control in large facilities (e.g., data centers) .

Compatibility & Ecosystem

  1. Hardware Integration:
    • Controllers: PACSystems RX7i chassis .
    • I/O Modules: IC694 analog/digital modules, TSVO terminal boards .
    • Networking: Foxboro RH924WA fiber adapters for long-distance communication .
  2. Software Tools:
    • Proficy Machine Edition: Logic configuration, HMI design, and data historization .
    • ToolboxST: Firmware updates and diagnostics .

Installation & Maintenance

  1. Deployment:
    • Mounting: DIN-rail or panel; maintain ≥50 mm clearance for ventilation .
    • Cabling: Segregate power/Ethernet to minimize EMI .
  2. Preventive Maintenance:
    • Biannual inspection: Clean connectors, verify firmware updates, test redundant ports .
    • Annual calibration: Analog I/O channels .
  3. Troubleshooting:
    • Boot Failure: Validate 24V DC input; check capacitor backup health .
    • Network Outages: Inspect RJ-45 terminations; use Proficy diagnostics for packet analysis .

Certifications & Support

  • Compliance: CE, UL 61010-1, ATEX (Zone 2) .
  • Warranty: 12–36 months (extendable) .
  • Technical Support: GE-certified engineers; global spare-part logistics .
