Technical Specifications

• Manufacturer: GE Fanuc Automation (now part of GE Digital)

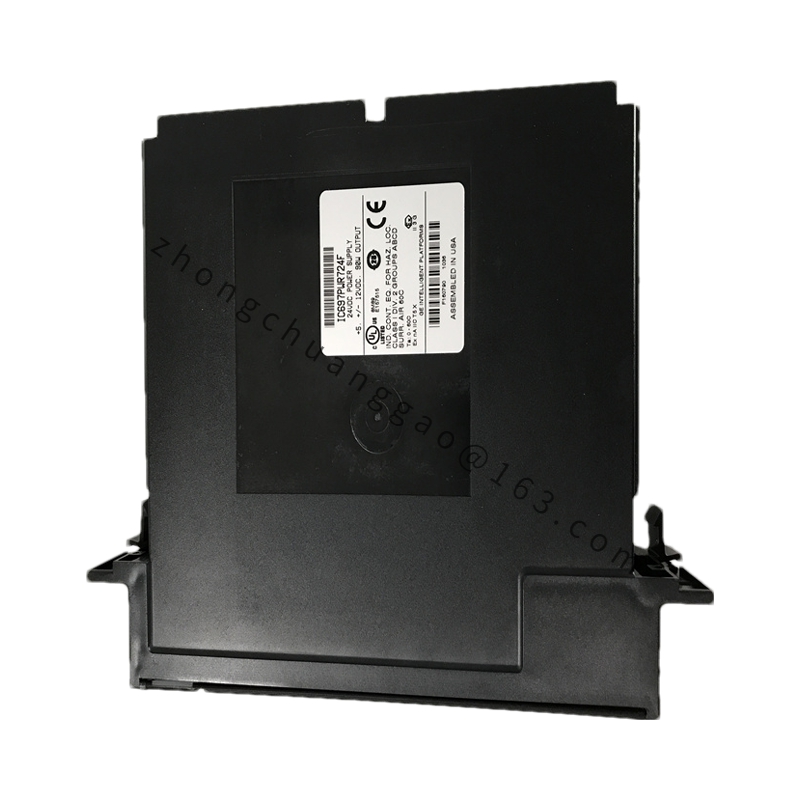

• Model: IC697PWR724
• Type: Power Supply Module
• Voltage:
  • Nominal Output Voltage: 24 VDC
  • Input Voltage Range: 18-32 VDC
• Power:
  • Output Power: 90 Watts
  • Input Power: 160 Watts
• Compatibility: Designed to fit into the leftmost slot of a rack and can power up to 2 racks simultaneously with the total load within the rated specifications.
• Connector: 48-pin backplane mounting connector for rack installation.

Functional Characteristics

• High Speed and Performance: The IC697PWR724 utilizes PACSystems Rx3i high-speed processors and patented technologies, enabling faster input-to-output times, minimizing information bottlenecks.
• Flexibility: Provides different voltage levels to accommodate operational and logical level sequencing signals.
• Scalability: Supports upgrading existing series 90-30 I/O through a serial backplane.
• Processing Power: Equipped with a PIII 300 MHz CPU and 10MB memory, or optionally PM 1.0 GHz and 64MB memory, supporting advanced programming and high-performance requirements.

Application Scenarios

• Industrial Automation: The IC697PWR724 is widely used in various industrial automation applications, including but not limited to:
  • Manufacturing: For instance, in数控机械 (CNC machinery), electronics manufacturing, and automotive manufacturing.
  • Process Industries: Such as oil and gas, petrochemicals, chemicals, and power generation.
  • Heavy Industries: Applications in steel mills, cement factories, and water/wastewater treatment plants.
  • Infrastructure: Supports machinery in railways, airports, and other transportation sectors.
  • Rotating Equipment: Monitoring and controlling large rotating equipment like turbines, compressors, and pumps.
