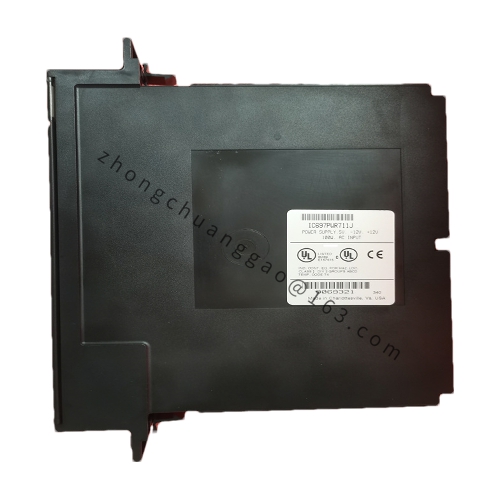

Frequency: 47 to 63 Hz
Also supports 125 VDC input (operating range may vary)
Output Voltage:
+5VDC: Up to 18A (maximum)
+12VDC: Up to 2A (maximum)
-12VDC: Up to 1A (maximum)
Total Power Output: 100 Watts
Physical Characteristics:
Rack-mountable unit with a sliding mechanism
Connects to the backplane via a 48-pin connector
Designed to be installed in the leftmost slot of the rack
Functional Characteristics
Multiple Voltage Outputs: Provides +5VDC, +12VDC, and -12VDC outputs to power various components in the PLC system.
Power Factor Correction: Incorporates power factor correction for efficient AC operation.
Electronic Short Circuit and Overcurrent Protection: Protects the power supply and connected components from damage due to short circuits or overcurrent conditions.
Dual Rack Operation: Capable of powering a second rack if the total load does not exceed the 100-watt capacity and the second rack is within 3 feet of the first using a pre-wired cable.
Logical Level Sequencing Signals: Provides logical level sequencing signals to the backplane for proper system initialization and operation.
Temperature Sensitivity: Designed to operate optimally below 60°C (140°F). May require derating for continuous operation in low line voltage and high-temperature conditions.
Application Scenarios
Industrial Automation and Control Systems:
PLC Power Supply: Provides reliable power to GE Fanuc 90-30 series PLCs and compatible systems, ensuring stable operation of control logic and I/O functions.
Distributed Control Systems (DCS): Can be integrated into larger DCS systems, providing power to PLCs or other control devices within the system.
Process Control: Supports process control applications in various industries, including manufacturing, oil and gas, water treatment, and more.
Machinery and Equipment Control: Enables the control of complex machinery and equipment, ensuring smooth and efficient operation.
Power Distribution and Management:
Acts as a central power source for various components within an industrial automation system, simplifying power distribution and management.
