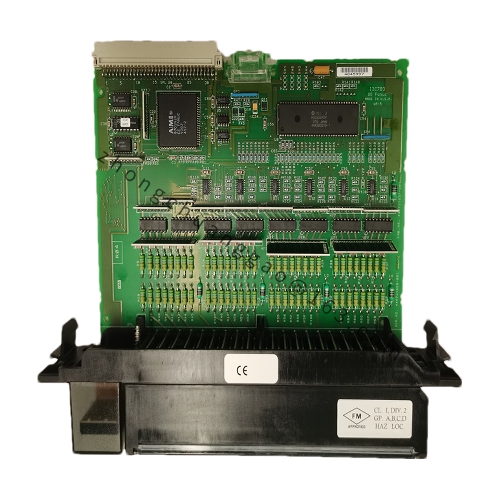

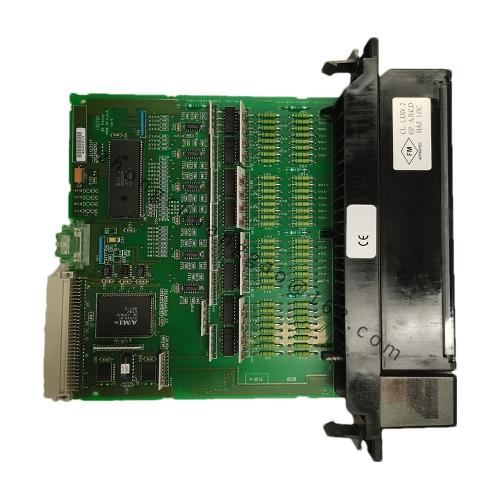

GE IC697MDL653
Technical Specifications
Model: IC697MDL653
Series: 90-70 Series
Type: Discrete Input Module
Input Channels: 32 discrete input channels, organized into 4 groups of 8 channels each.
Input Voltage Range: Accepts input voltages ranging from -3 to +30 VDC at rated voltage, with an input current of 10.0 mA.
Input Filtering: Offers selectable input filters with delay times of 1 ms or 10 ms.
Power Consumption: Draws a total of 300 mA from the 5VDC bus.
Detailed content
Isolation: 1500V isolation between channels and the backplane, 500VDC isolation between groups.
Compatibility: Designed for use with the 90-70 series programmable logic controllers (PLCs) from GE Fanuc, now acquired by Emerson Automation Solutions.
Logical Support: Supports both positive and negative logic wiring configurations.
Functional Characteristics
High-Performance Processor Integration: As part of the 90-70 series PLC, the IC697MDL653 benefits from the PLC’s high-performance processor, enabling it to handle complex control algorithms and real-time control tasks.
Flexible I/O Configuration: Offers a versatile range of input channels, grouped for easy wiring and management. The selectable input filters provide additional flexibility to adapt to different signal characteristics.
Communication Capabilities: The module integrates seamlessly with the PLC’s communication interfaces, including serial ports and Ethernet, supporting protocols such as DH+, ControlNet, and Ethernet, enabling data exchange and communication with other devices and systems.
Programming Support: Compatible with RSLogix 5 programming software from Emerson Automation Solutions, which provides an intuitive graphical programming interface and support for multiple programming languages, such as Ladder Diagram and Structured Text.
Reliability and Durability: Designed for long-term industrial use, the IC697MDL653 exhibits high reliability and durability, suitable for demanding environments and continuous operation.
Expandability: As part of the modular 90-70 series PLC, the IC697MDL653 can be easily expanded with additional modules to meet changing system requirements.
Application Scenarios
Industrial Automation: Widely used in industrial automation systems, including manufacturing lines, process control, and machine automation, where precise and reliable input signal processing is crucial.
Servo Motor Control: Integrated into servo motor control systems, providing discrete inputs for motor commands and feedback.
Variable Frequency Drives (VFDs) and Converters: Utilized in VFD and converter systems, facilitating input signal processing for motor speed and torque control.
Frequency Conversion Appliances: Found in applications involving frequency conversion appliances, such as variable speed fans and pumps, enabling precise control of input signals.
General-Purpose Control: Suitable for a wide range of general-purpose control applications where discrete inputs are required for system monitoring and control.
