Power Consumption:
240 mA @ 5 VDC
600 mA @ 3.3 VDC
Operating Temperature Range: -20°C to +60°C (-4°F to +140°F)
Protection Class: Can be installed in IP54 or higher enclosures with IP20/NEMA/UL Type 1 protection
Installation: Horizontal installation required, with at least 102 mm (4 inches) clearance on all sides for proper ventilation
Communication Capabilities: Supports Ethernet, RS-232, RS-485 (via connected modules)
Functional Characteristics

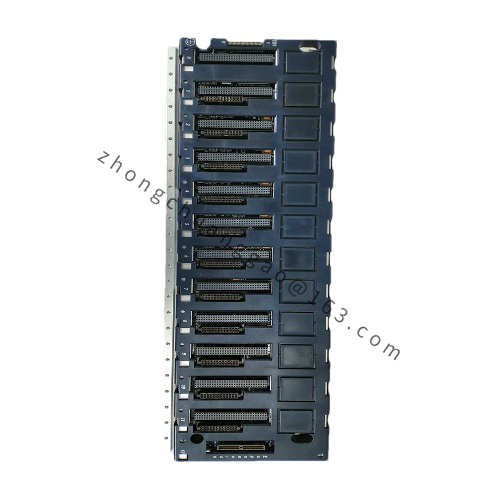

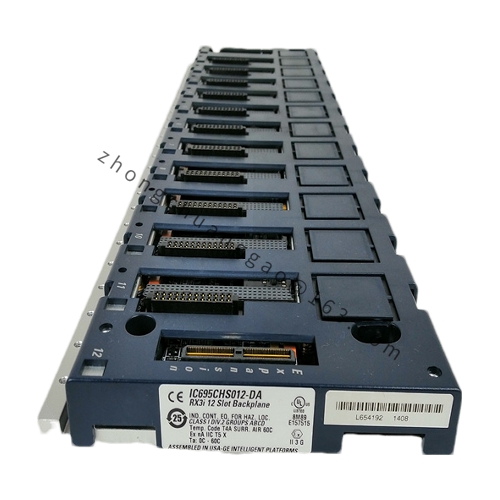

Universal Backplane: Provides a common platform for connecting and communicating between RX3i modules.
Hot-Swappable: Allows modules to be inserted or removed without powering down the system, reducing downtime.
Modular Design: Facilitates easy expansion and customization of the RX3i system.
Communication Bus: Carries internal communication signals between modules, ensuring seamless integration.
Power Distribution: Distributes power to connected modules efficiently.
External Power Terminal: Equipped with a TB1 terminal block for optional 24VDC external power supply.
