Output Voltage Range: 102 – 28.8 Volts (nominal voltage 12 – 24 VDC)
Output Current Rating:
Per Point: 0.5 Amps
Per Group: 4 Amps
Common Pin (per group): 3 Amps
Surge Current: 5.4 Amps for 10 ms
On-State Voltage Drop: 0.3 VDC
Off-State Leakage Current: 0.1 mA
Response Time:
ON to OFF: 0.5 ms (typical)
OFF to ON: 0.5 ms (typical)
Isolation:
Field Side to Logic Side: 250 Volts
Optical Isolation: 100 Volts
Power Consumption:
Peak Current Consumption: 260 mA (from 5 VDC backplane)
Per Output Point (when ON): 16 mA
Indicator LED (per output point): 4.7 mA
Compatibility: Compatible with the GE Fanuc (now Emerson Automation Solutions) 90-30 Series PLC system
Functional Characteristics
Positive Logic Output: The module provides positive logic outputs, sourcing current from the PLC’s power supply to connected loads.
Modularity: Designed for easy installation and removal from the PLC’s baseplate, occupying a single slot.
Isolation: Provides electrical isolation between output groups and the logic side, enhancing safety and reducing potential for interference.
Indicator LEDs: Each output channel is equipped with an LED indicator, providing visual feedback on the status of the output.
Application Scenarios
Industrial Automation: Widely used in industrial automation systems for controlling various electrical loads, including motors, actuators, relays, solenoids, and lamps.
Process Control: Suitable for process control applications where precise control of multiple outputs is required.
Machine Control: Can be integrated into machine control systems for automated equipment and production lines.
Infrastructure: Applicable in infrastructure projects such as water treatment plants, power stations, and transportation systems.
Additional Information

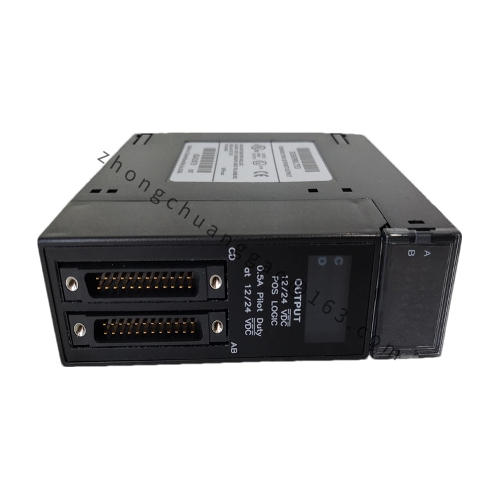

The IC693MDL753 is a reliable and versatile digital output module that offers a high number of individually controlled outputs.
Its modular design and compatibility with the 90-30 Series PLC system make it easy to integrate into existing automation systems or expand as needed.
The module’s positive logic design and electrical isolation features ensure safe and reliable operation in various industrial environments.
