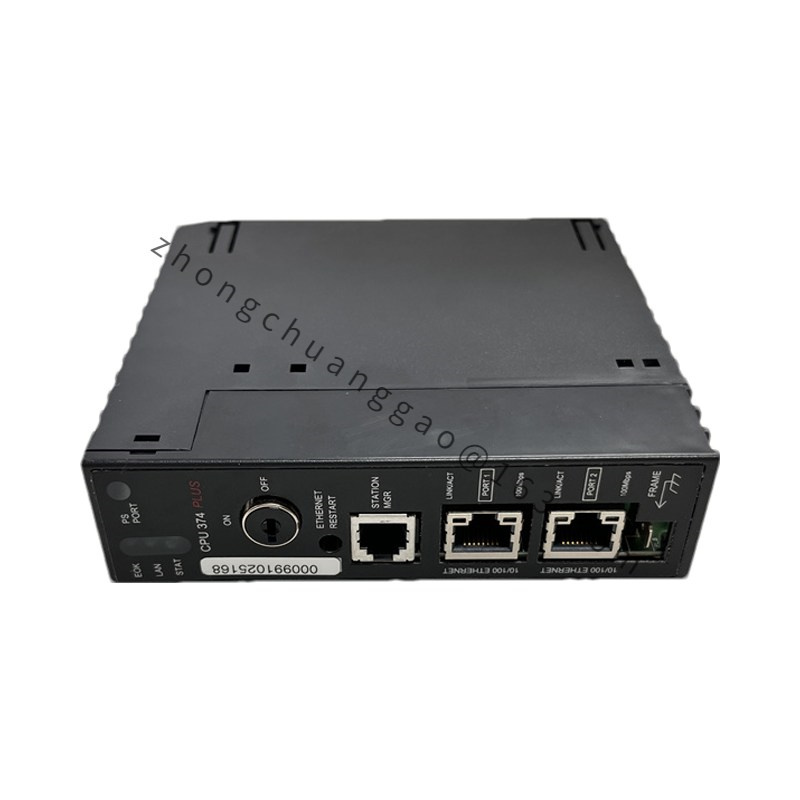

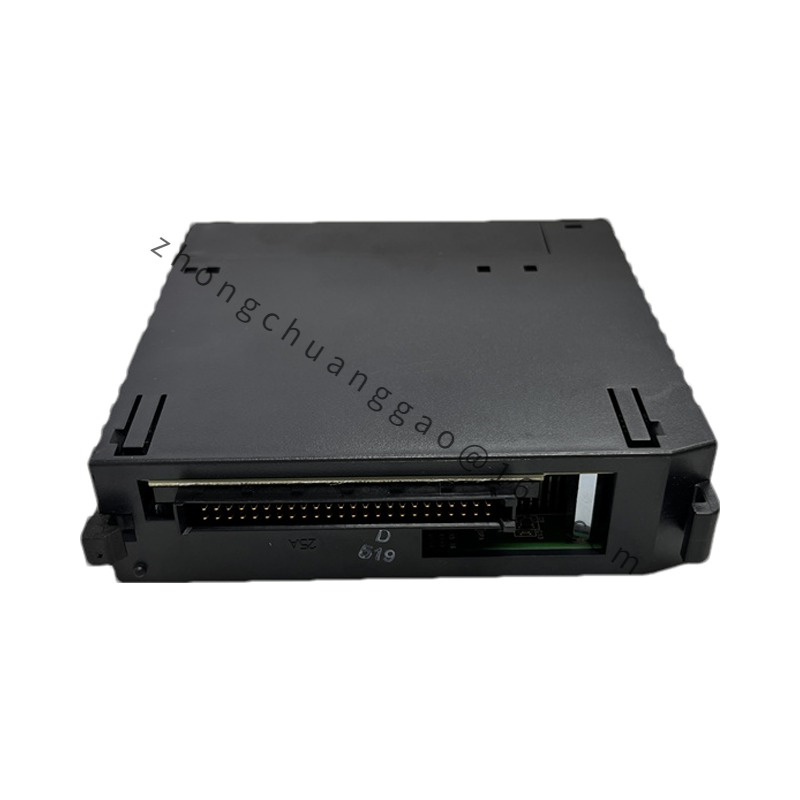

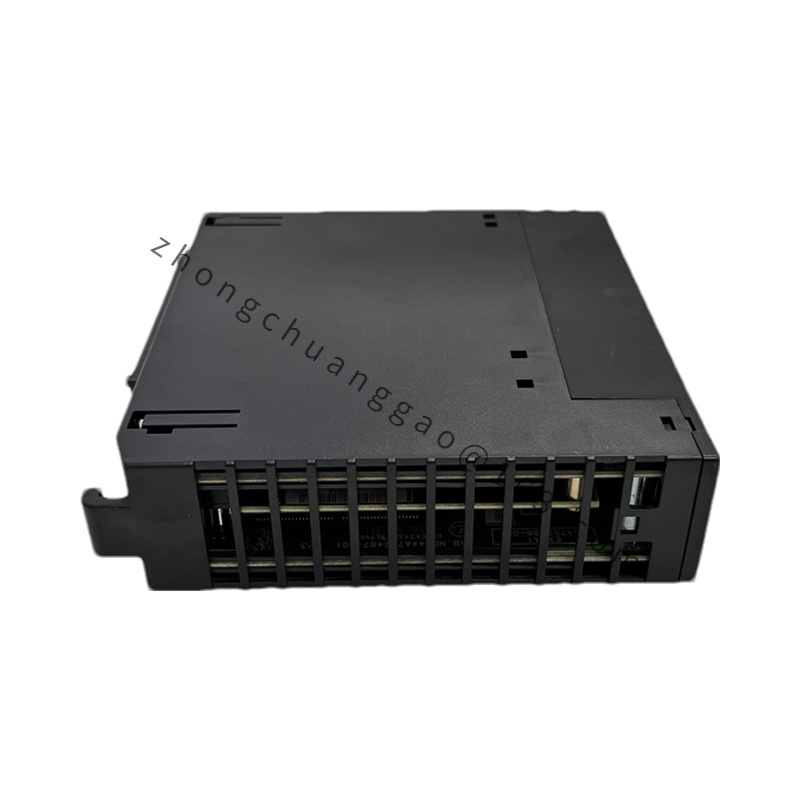

GE IC693CPU374-GU

Applications:

  • Industrial Automation: The IC693CPU374 is widely used in manufacturing, energy, and process control industries for managing complex automated systems.
  • SCADA and HMI Systems: Its Ethernet capability allows for seamless integration with supervisory control systems, enabling real-time monitoring and data acquisition.
  • Modular Systems: Due to its modular nature, it is ideal for use in systems that require scalability and flexibility for adding more components like I/O modules and communication devices.
WhatApp
WeChat

Detailed content

Key Specifications:

  • Processor Type: AMD SC520 embedded 586 processor
  • Processor Speed: 133 MHz
  • Memory:
    • User memory: 240 KB
    • Configurable register memory: 128 to 32,640 words
    • Supports up to 2000 timers and counters
  • Scan Rate: 0.15 milliseconds per 1K of Boolean contact logic
  • I/O Points: Supports up to 2048 I/O points
  • Communication Ports:
    • 2 Ethernet ports (10/100 Mbps, RJ-45, auto-sensing)
    • RS-485 port (via power supply) supporting SNP/SNPX protocols
  • Power Requirements: 7.4 Watts at 5 VDC
  • Operating Temperature: 0 to 60°C (32 to 140°F)
  • Storage Temperature: -40 to 85°C (-40 to 185°F)
  • Floating Point Math: Yes
  • Series: GE Fanuc Series 90-30​

Functional Features:

  1. Single Slot CPU Module: The IC693CPU374 is designed as a single-slot module in the Series 90-30 PLC rack.
  2. High-Speed Processing: Its 133 MHz processor enables fast execution of logic with a scan rate of 0.15 ms for Boolean logic, making it suitable for real-time control.
  3. Ethernet Communication: With two 10/100 Mbps Ethernet ports, the CPU provides efficient communication with other systems, including Human-Machine Interfaces (HMI), SCADA systems, and other controllers.
  4. Multiple Programming Options: Compatible with software like VersaPro, CIMPLICITY Machine Edition, and Control software for programming and online editing.
  5. Versatile I/O Handling: Supports a large number of I/O points, which is beneficial for complex automation systems with extensive data and process control needs.
