GE IC693CHS391

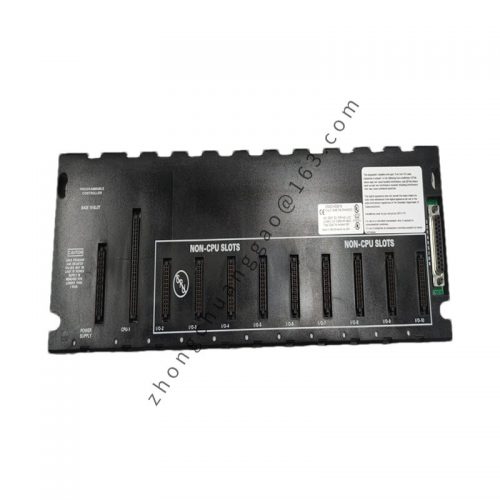

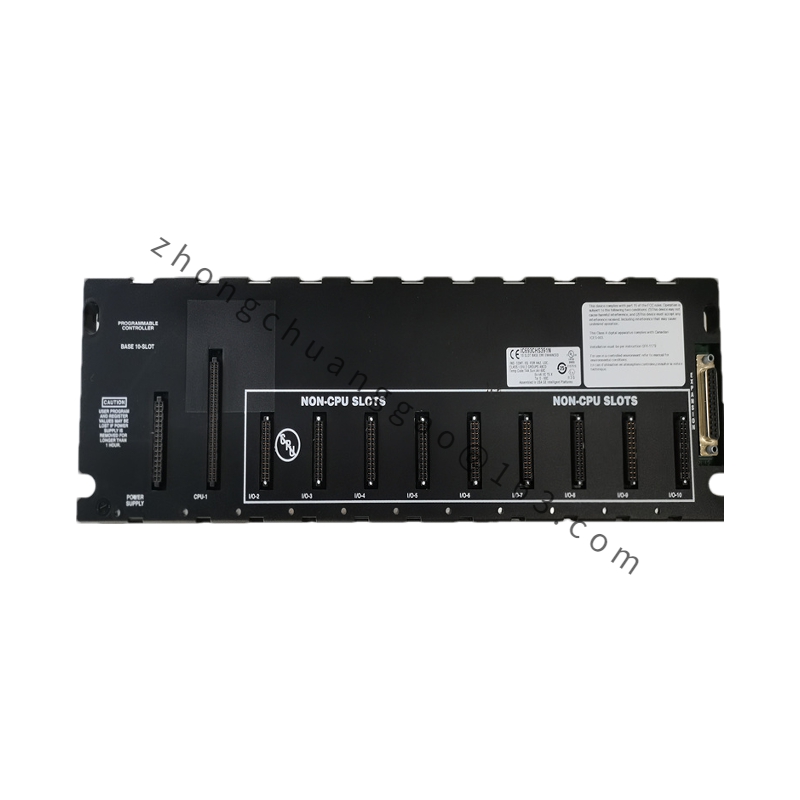

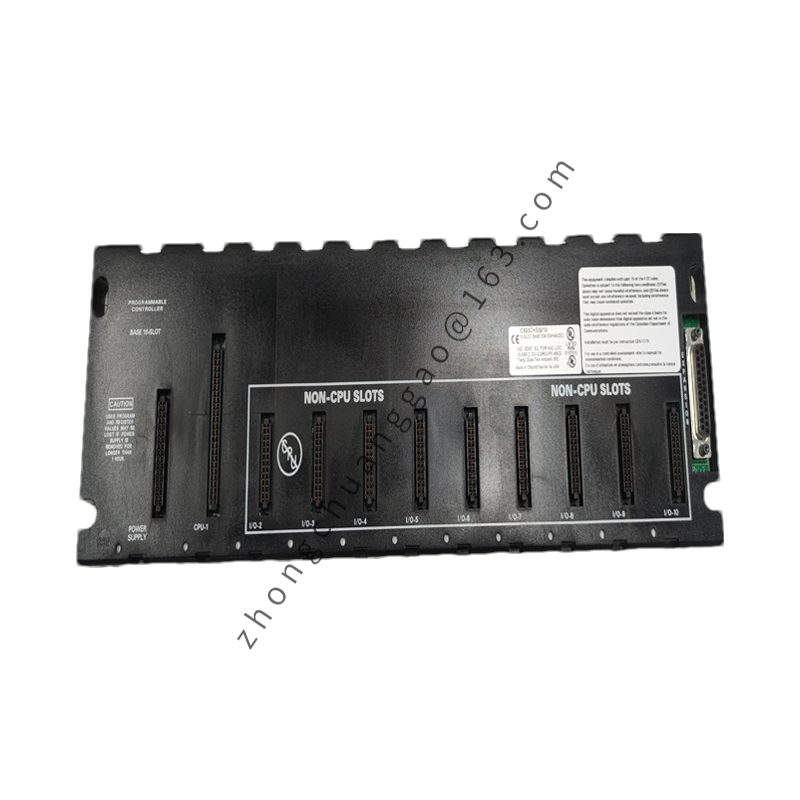

GE IC693CHS391 is a modular CPU baseplate designed specifically for the GE Fanuc Series 90-30 PLC (Programmable Logic Controller) system. It offers a versatile platform for expanding and configuring PLC systems, enabling them to handle a wide range of industrial automation tasks.

WhatApp
WeChat

Detailed content

Technical Specifications

  • Model Name: GE IC693CHS391
  • Manufacturer: GE Fanuc
  • Series: 90-30 PLC
  • Type: Modular CPU Baseplate
  • Number of Slots: 10 (One dedicated to CPU, nine for I/O modules)
  • Power Supply Slot: Dedicated left-most slot for power module (not included in slot count)
  • Rated Voltage: 5 VDC
  • Rated Current: 420 mA
  • DIP Switch: Included for configuration
  • Connector: 25-pin female connector for connecting to remote or expansion backplanes
  • Cable Length for Remote Backplanes: Up to 700 feet
  • Cable Length for Expansion Backplanes: Up to 50 feet

Functional Features

  1. Modular Design: The IC693CHS391 allows for the installation of modular CPU, I/O modules, and power modules, enabling flexible system expansion and configuration.
  2. Multi-Slot Support: With 10 slots (including one for CPU and nine for I/O), it provides ample room for additional functionality.
  3. Dedicated CPU Slot: The first slot is specifically designed to accommodate the CPU module, ensuring secure and stable connections.
  4. Electrical Connectivity: Provides electrical interfaces for connecting digital input/output modules to the PLC system.
  5. High Reliability: As part of the reliable and stable GE Fanuc 90-30 series, the IC693CHS391 baseplate adheres to the same high standards.
  6. Industrial-Grade Design: Designed for use in industrial environments, it is resistant to vibration, durable, and suitable for harsh operating conditions.
  7. DIP Switch Configuration: Enables easy configuration and customization of the baseplate and connected modules.
  8. Expansion Capabilities: Can be connected to remote or expansion backplanes, allowing for the integration of additional I/O and field devices.

Application Scenarios

The GE IC693CHS391 baseplate is ideal for a wide range of industrial automation applications, including but not limited to:

  • Process Control: In manufacturing and process industries, it can be used to automate and control complex processes, ensuring accuracy and efficiency.
  • Machine Control: For machinery and equipment control, the modular design allows for the integration of various sensors and actuators, enabling precise control and monitoring.
  • Data Acquisition: In monitoring and data acquisition systems, it can serve as the backbone for collecting and transmitting real-time data from various sources.
  • Remote Monitoring and Control: When connected to remote backplanes, it enables remote monitoring and control of industrial processes, improving operational flexibility and efficiency.
