Connectivity:
25-pin female connector for connecting remote or expansion backplanes
Cable length requirements: Less than 700 feet for remote backplanes, less than 50 feet for expansion and CPU backplanes
DIP Switch: Included for configuration purposes
Mounting: Panel mount with screws and washers
Dimensions and Weight: Specific dimensions and weight may vary; refer to the official datasheet for detailed information
Environmental Standards: Compliant with various global environmental and industrial standards
Functional Characteristics
Modular Design: Allows for the installation of modular CPUs, I/O modules, and power modules
Expansion Capabilities: Supports up to 7 expansion backplanes depending on the CPU model (e.g., CPU 350 supports up to 7, while CPU 341/340/331 support up to 4)
Electrical Connections: Provides electrical interfaces for connecting digital input modules to the PLC system
Multiple Channels: Each channel can accommodate a GE 90-30 digital input module
Data Transmission: Facilitates the transmission of digital signals from input modules to the PLC for logical control and processing
Industrial-Grade Design: Suitable for industrial environments with high resistance to vibration, durability, and adaptability to harsh operating conditions
Application Scenarios
Automation Systems: Widely used in industrial automation systems for controlling and monitoring various processes and equipment
Process Control: Ideal for applications requiring precise control and monitoring of industrial processes
Machine Control: Used in machines and equipment requiring advanced control logic and high-speed data processing
Expansion and Customization: Enables the expansion and customization of PLC systems by allowing for the addition of additional I/O modules and field devices
Additional Information

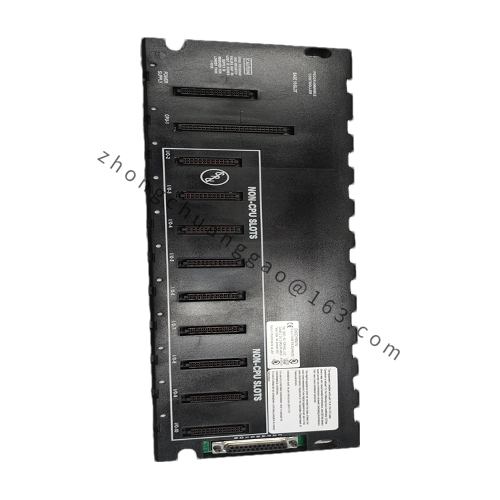

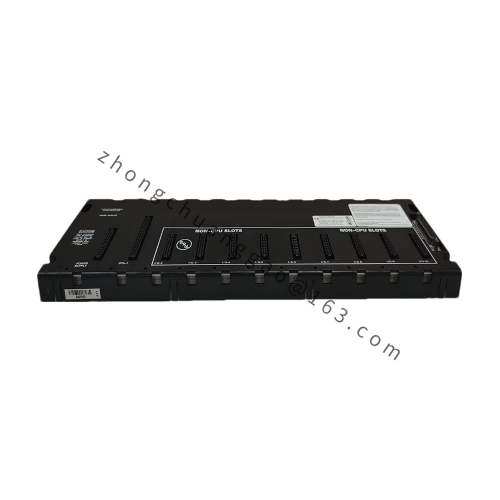

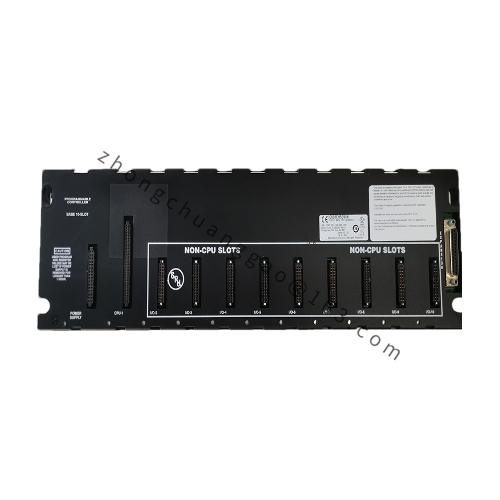

The IC693CHS391 is a versatile and reliable expansion backplane designed specifically for use with the GE Fanuc 90-30 Series PLCs.
Its modular design allows for easy installation, removal, and replacement of components, making it a flexible and scalable solution for a wide range of industrial automation needs.
For detailed installation, configuration, and maintenance instructions, it is recommended to refer to the official documentation provided by GE Fanuc or consult with a qualified automation engineer.
Note: While every effort has been made to ensure the accuracy and comprehensiveness of the information provided, it is always advisable to refer to the latest documentation from the manufacturer for the most up-to-date and detailed information.
