Technical Specifications

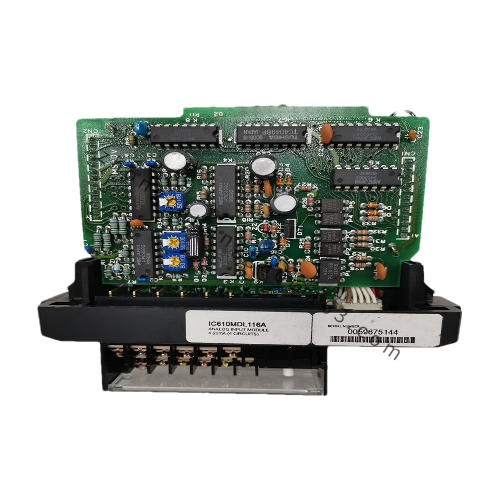

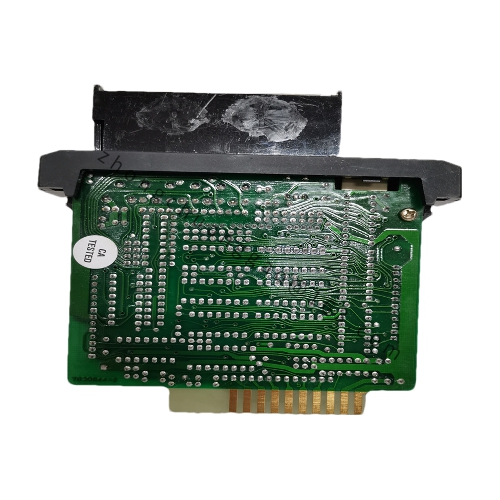

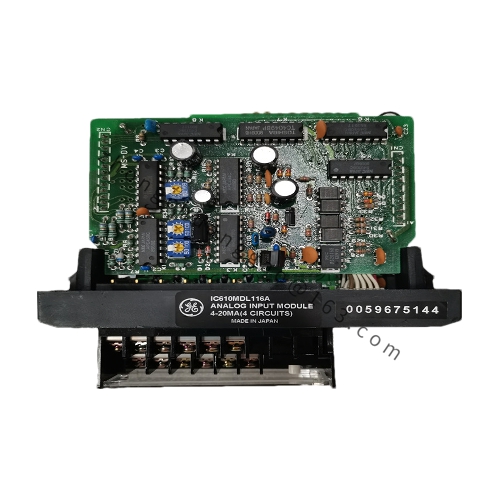

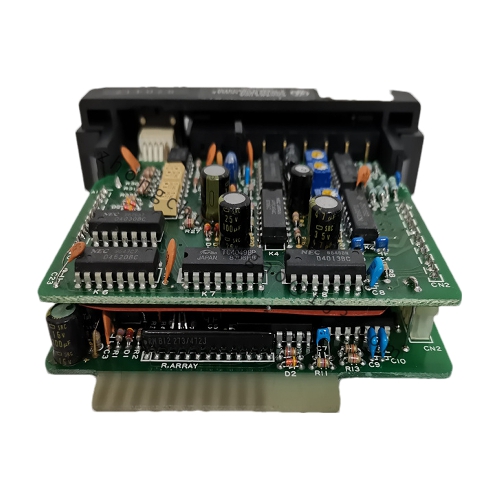

Model Number: IC610MDL116A
Manufacturer: General Electric (GE)
Type: Analog Input Module
Input Channels: 4 (Configurable as 4-20 mA or 0-10 V current/voltage input)
Resolution: 12-bit
Accuracy: ±0.1%
Conversion Time: < 2 ms
Common Mode Rejection Ratio (CMRR): > 60 dB
Noise Immunity: > 10 V RMS
Operating Temperature Range: -40°C to 70°C
Power Supply Voltage: 24 VDC
Dimensions: 90 mm x 30 mm x 25 mm
Weight: 100 grams
Housing Material: ABS Plastic
Connection Type: Terminal Connection
Functional Features
High Precision: With 12-bit resolution and ±0.1% accuracy, the IC610MDL116A ensures accurate measurement of analog signals.
Reliability: Built with high-quality components and subjected to rigorous testing, this module guarantees long-term reliable operation.
Ease of Use: Comes with clear wiring diagrams and programming guides, making installation and setup straightforward.
Versatility: Configurable for either 4-20 mA or 0-10 V input signals, allowing for flexibility in various industrial setups.
Advanced Signal Processing: Utilizes advanced digital signal processing techniques to enhance signal quality and reduce noise.
Protection Features: Equipped with overload, undervoltage, and short-circuit protection to ensure device stability and safety.
Application Scenarios
Temperature Measurement: Ideal for monitoring and controlling temperature in various industrial processes.
Pressure Measurement: Used in pressure-sensitive applications such as hydraulic systems and pneumatic controls.
Flow Measurement: Accurate flow monitoring and control in fluid handling systems.
Position Measurement: For precise positioning and tracking in automation and robotics.
Signal Collection: General-purpose signal acquisition in a wide range of industrial control systems.
Industry Applications
Process Control: In chemical plants, oil refineries, and other process industries where precise control is crucial.
Equipment Control: For monitoring and controlling equipment in manufacturing facilities, power plants, and water treatment plants.
Automotive Manufacturing: In assembly lines and testing stations for precise control of robotic arms and other automated equipment.
Food Processing: Ensuring consistent quality and safety standards through precise temperature and pressure control.
Packaging: Automating packaging lines for faster, more efficient production.
