Technical Specifications
Product Series: 90-30 Series PLC
Interface Type: RS-485 Master
Baud Rate: 9600 bps to 115200 bps
Dimensions: 90 mm x 30 mm x 25 mm
Weight: 100 grams
Housing Material: Aluminum Alloy
Connection Method: Terminal Connection
Power Supply: Typically powered by the PLC system or an external 24VDC source
Functional Characteristics
High-Speed Communication: With support for RS-485 communication at baud rates up to 115200 bps, it enables high-speed data transmission between the PLC and Modbus RTU slave devices.
High Reliability: Designed for use in industrial environments, the module offers reliable communication and operation under demanding conditions.
Easy Integration: Can be seamlessly integrated into existing 90-30 series PLC systems, simplifying system expansion and upgrades.
Versatile Connectivity: Provides an RS-485 interface for connecting to a wide range of Modbus RTU slave devices, facilitating communication with various industrial peripherals.
Application Scenarios

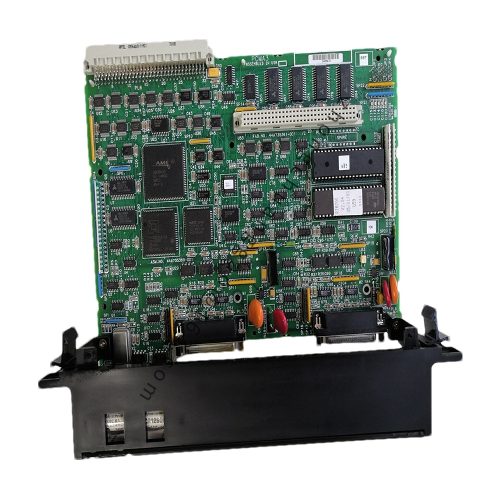

GE HE697RTM700B is ideally suited for a variety of industrial applications that require high-speed, high-reliability RS-485 network communication, including but not limited to:
Automation Systems: Used as a master module in distributed control systems (DCS) to manage and communicate with remote devices across a network.
Monitoring and Control: In industries such as manufacturing, oil and gas, power generation, and water treatment, where real-time monitoring and control of remote equipment is crucial.
Data Acquisition: For collecting and transmitting data from remote sensors, actuators, and other devices to a central control system for analysis and decision-making.
Process Control: In process industries, where precise control of industrial processes is necessary to ensure product quality and safety.
Additional Information
Compatibility: The module is compatible with Modbus RTU protocol, enabling seamless communication with devices that support this protocol.
Customization: Depending on the specific application, the module can be configured to meet the unique requirements of the system.
Support: GE provides technical support and documentation to assist with installation, configuration, and troubleshooting of the HE697RTM700B module.
