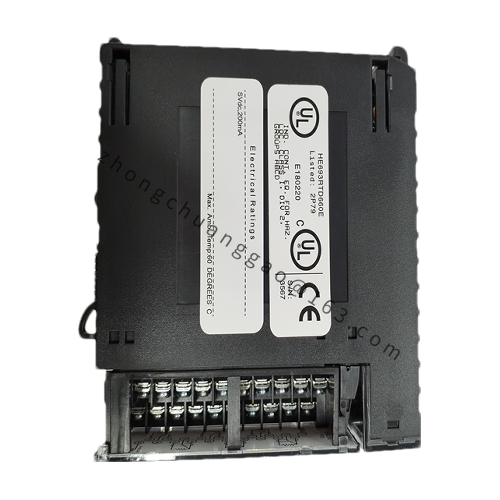

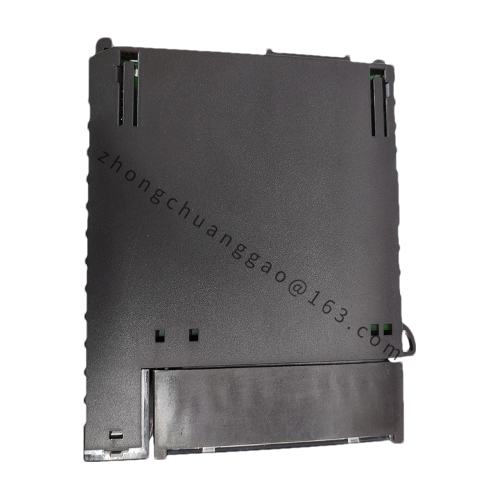

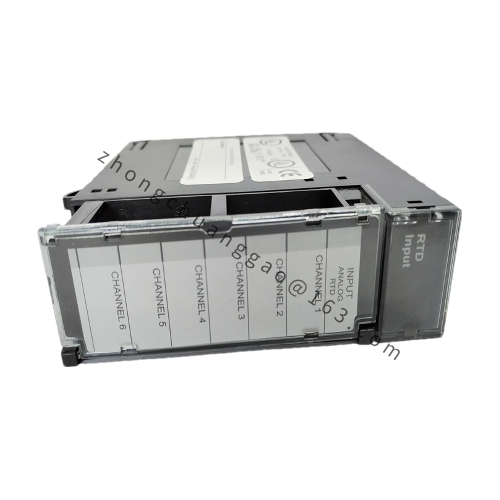

GE HE693RTD660
Technical Specifications:
Product Type: RTD Temperature Input Module
Manufacturer: General Electric (GE)
Series: Part of the 90-30 High-Precision Logic Controller (PLC) Series
Temperature Input Channels: 6
Temperature Input Type: RTD (Compatible with PT100, PT1000 sensors)
Temperature Input Range: -200°C to 800°C
Resolution: 0.1°C
Accuracy: ±0.1%
Conversion Time: < 2 ms
Common Mode Rejection Ratio (CMRR): > 60 dB
Power Supply Voltage: 24 VDC
Dimensions: 90 mm x 30 mm x 25 mm
Weight: 100 grams
Enclosure Material: Aluminum Alloy
Connection Type: Terminal Block
Detailed content
Functional Characteristics:
High Precision: With an accuracy of ±0.1% and a resolution of 0.1°C, the HE693RTD660 offers high-precision temperature measurement capabilities.
Reliability and Stability: Designed for industrial applications requiring reliable and stable control functions, ensuring continuous and uninterrupted operation.
Programmability: Capable of executing user-written control logic, such as logical operations, conditional judgments, and data processing, through programming languages like ladder logic and function block diagram.
Communication Interfaces: May feature communication interfaces like Modbus and Ethernet for data exchange and communication with other devices or systems.
I/O Flexibility: In addition to its temperature input channels, the HE693RTD660 may also have digital input and output channels for connecting sensors, actuators, and other external devices.
Application Scenarios:
Industrial Automation: The HE693RTD660 is suitable for various industrial automation applications that require high-precision and reliable temperature measurement, such as process control, manufacturing lines, and automation systems.
Temperature-Critical Processes: Ideal for processes where temperature control is critical, such as food processing, pharmaceutical manufacturing, and chemical industries.
Monitoring and Control Systems: Can be integrated into monitoring and control systems for real-time temperature monitoring and control, enhancing system efficiency and reliability.
