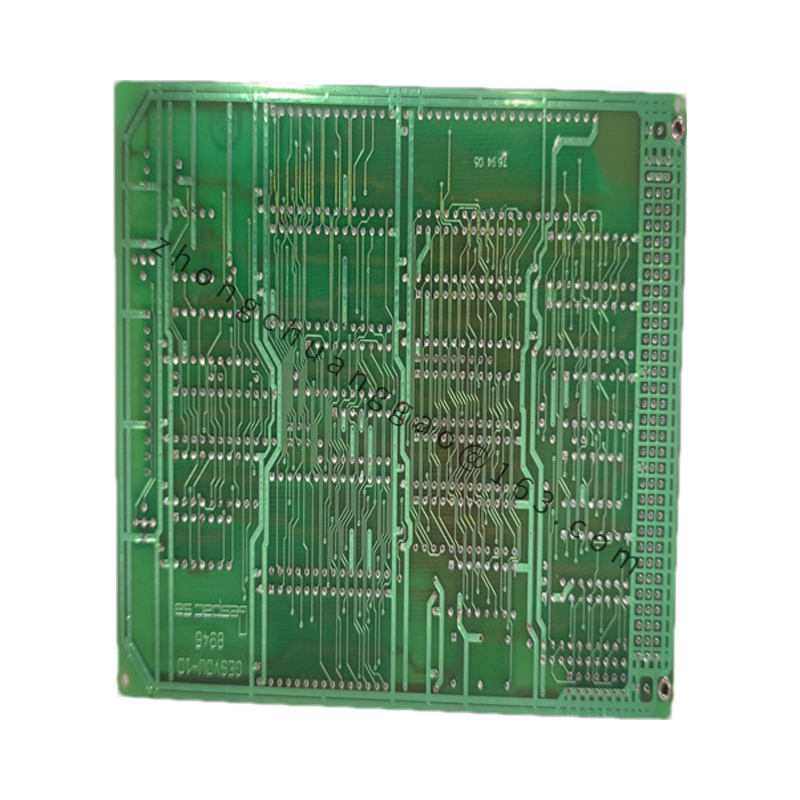

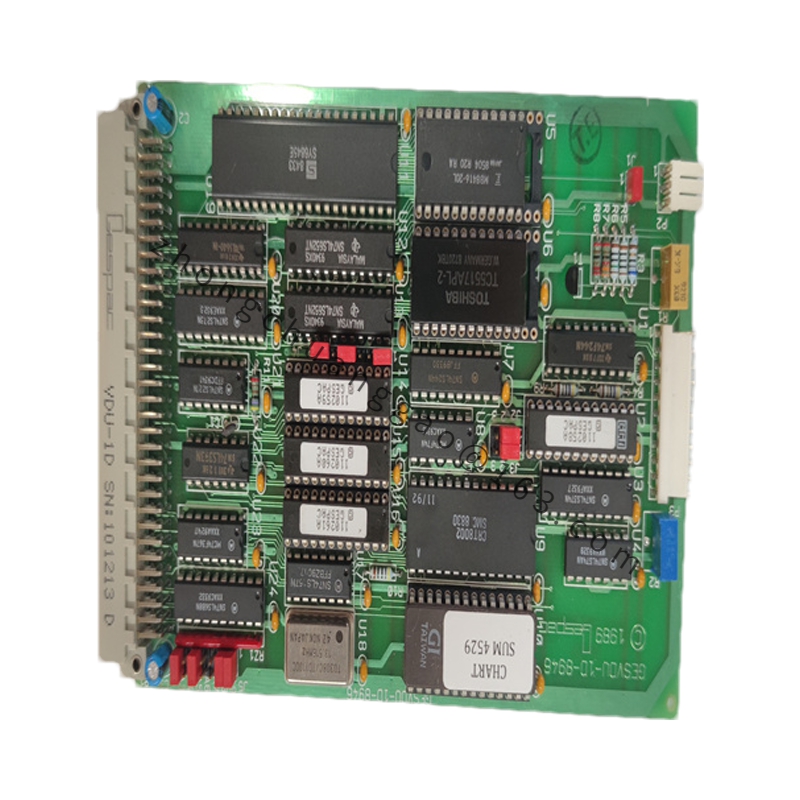

GE GESVDU-1D-8946
Technical Specifications:
Input Voltage Range: Depending on the specific model or version, GESVDU-1D-8946 can have varying input voltage ranges. Some sources indicate it can accept 12-48VDC (Direct Current) for power conversion and distribution, while others mention 100-240VAC (Alternating Current) for industrial applications.
Output Voltage: The output voltage of the module is typically 5VDC or 24VDC, depending on the configuration. This output voltage is suitable for powering a wide range of electronic devices.
Detailed content
Output Current: The maximum output current can vary but is generally reported to be 5A to 10A, allowing it to drive various electronic components and circuits effectively.
Efficiency: The module boasts a conversion efficiency greater than 90%, ensuring efficient energy utilization and reduced energy waste.
Physical Dimensions: The approximate dimensions are 200mm x 150mm x 50mm, making it suitable for installation in a variety of spaces.
Functional Characteristics:
Input/Output Capabilities: The GESVDU-1D-8946 module provides both input and output functions. The input function receives external signals, such as sensor readings or device status, while the output function sends signals or control commands to external devices.
Digital/Analog Support: The module may support both digital (DI/DO) and analog (AI/AO) input/output, enabling it to process both discrete and continuous signals.
Communication Interfaces: It features communication interfaces that enable data exchange and communication with control systems or other devices, supporting common industrial protocols like PROFINET and Modbus.
Modular Design: The module is designed with a modular structure, facilitating integration into existing control systems and supporting system expansion and upgrades.
Industrial Durability: With features like high-temperature tolerance, shock resistance, and dust/water protection, the module is built for reliable operation in industrial environments.
Protection Functions: It incorporates protection mechanisms such as overload protection and short-circuit protection to safeguard equipment and systems from damage.
Application Scenarios:
Industrial Automation: GESVDU-1D-8946 is well-suited for industrial automation systems, where it serves as a critical component for signal processing, control, and communication.
Control Systems: It can be integrated into various control systems, facilitating data acquisition, processing, and transmission for efficient system operation.
Power Distribution: Its ability to convert and distribute power efficiently makes it a valuable asset in power distribution networks within industrial facilities.
Machinery and Equipment: The module can be used to control and monitor various machinery and equipment, ensuring their smooth and reliable operation.
