Relay Type:Motor Protection

Chassis Series:SR469

Current Rating:Up to 5000 Amps

Operating Frequency:20-70 Hz

Protection Features:Overload, Short-Circuit, Ground Fault

Display:Enhanced Keypad, 40 Character LCD

LED Indicators:System Health Status, Relay Status

Analog Inputs:4 Configurable Analog Inputs

Output Relays:6 Form-C Output Relays

Storage Conditions:Flame, Corrosion, Dust Retardant

Dimensions:17 lbs, 12W x 11H x 10D inches

Power Supply:90-300 VDC, 70-265 VAC @ 48-62 Hz

Environmental Rating:Harsh/Chemical Environments

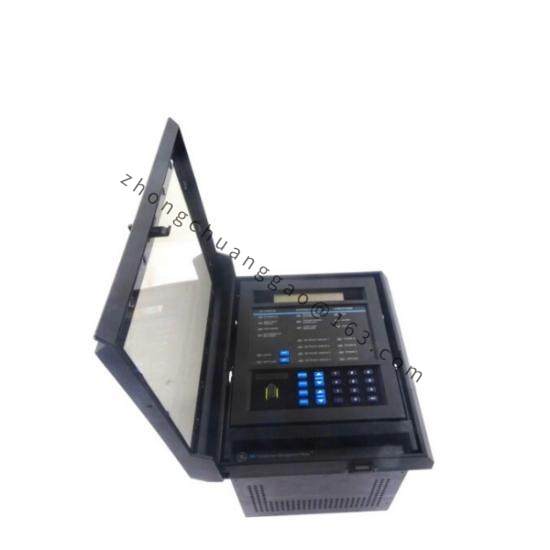

    The GE Fanuc SR469-CASE Motor Protection System is engineered with advanced features to safeguard your critical machinery against overloads, short circuits, and other electrical hazards. Its robust design withstands harsh environmental conditions, ensuring reliable operation year-round.

    Equipped with an enhanced display and expanded keypad, the SR469-CASE offers real-time monitoring of system metrics. The large, clear LCD screen scrolls through up to twenty user-configurable variables, providing instant access to critical information without the need for complex navigation.

    With its five amp phase CT secondaries and high-rated control power, this system caters to a wide range of applications, making it suitable for both small and large-scale industrial operations. The included four configurable analog inputs allow for precise measurement of motor operation parameters, enhancing operational efficiency.

    Featuring six Form-C output relays, the GE Fanuc SR469-CASE enables quick and direct control actions upon detecting anomalies. The non-failsafe relays ensure timely responses, minimizing downtime and protecting valuable assets from damage.

    The system’s durable chassis is flame, corrosion, and dust retardant, providing enhanced protection against external elements. Additionally, the compact size and lightweight design facilitate easy installation and maintenance, allowing for seamless integration into existing infrastructure.
