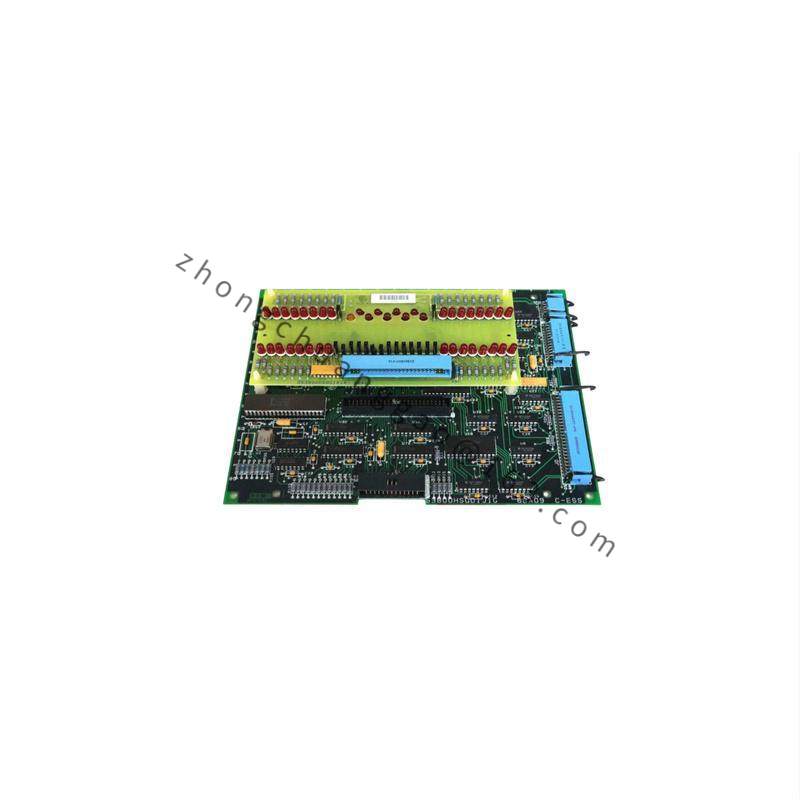

Manufacturing Brand:General Electric

Model:DS3800HSQD1J1G

Series:DS3800

Technology Type:Sequence Assembly PCB

Operating Voltage:24V DC

Operating Current:≤ 50mA

Temperature Range:-20°C to +70°C

Environmental Grade:Industrial

Dimensions (mm):120 x 90

Weight (g):150

Connector Type:40-pin, 20-pin

Mounting Type:Screw Fixing

Compatibility:GE Variable Frequency Drives

    Engineered for durability and performance, this PCB assembly is a cornerstone of modern industrial control systems, offering unparalleled reliability and efficiency.

    Featuring an advanced design with 4 screw holes, it ensures stable integration into complex machinery setups, providing a solid foundation for system stability.

    The robust material selection, including industrial-grade FR-4, ensures longevity and resistance to harsh environmental conditions typically found in industrial settings.

    Supporting a wide operating temperature range from -40°C to +85°C, this PCB assembly maintains optimal performance across varying operational scenarios.

    Equipped with 2x 40-pin and 1x 20-pin connectors, it facilitates seamless connectivity to various components within the industrial control system, enhancing overall system integration and functionality.
